Chapter 2 __________________________________________________________ Product Overview
VAISALA_______________________________________________________________________ 31
Ethernet Communication Module DSE101
1004-122

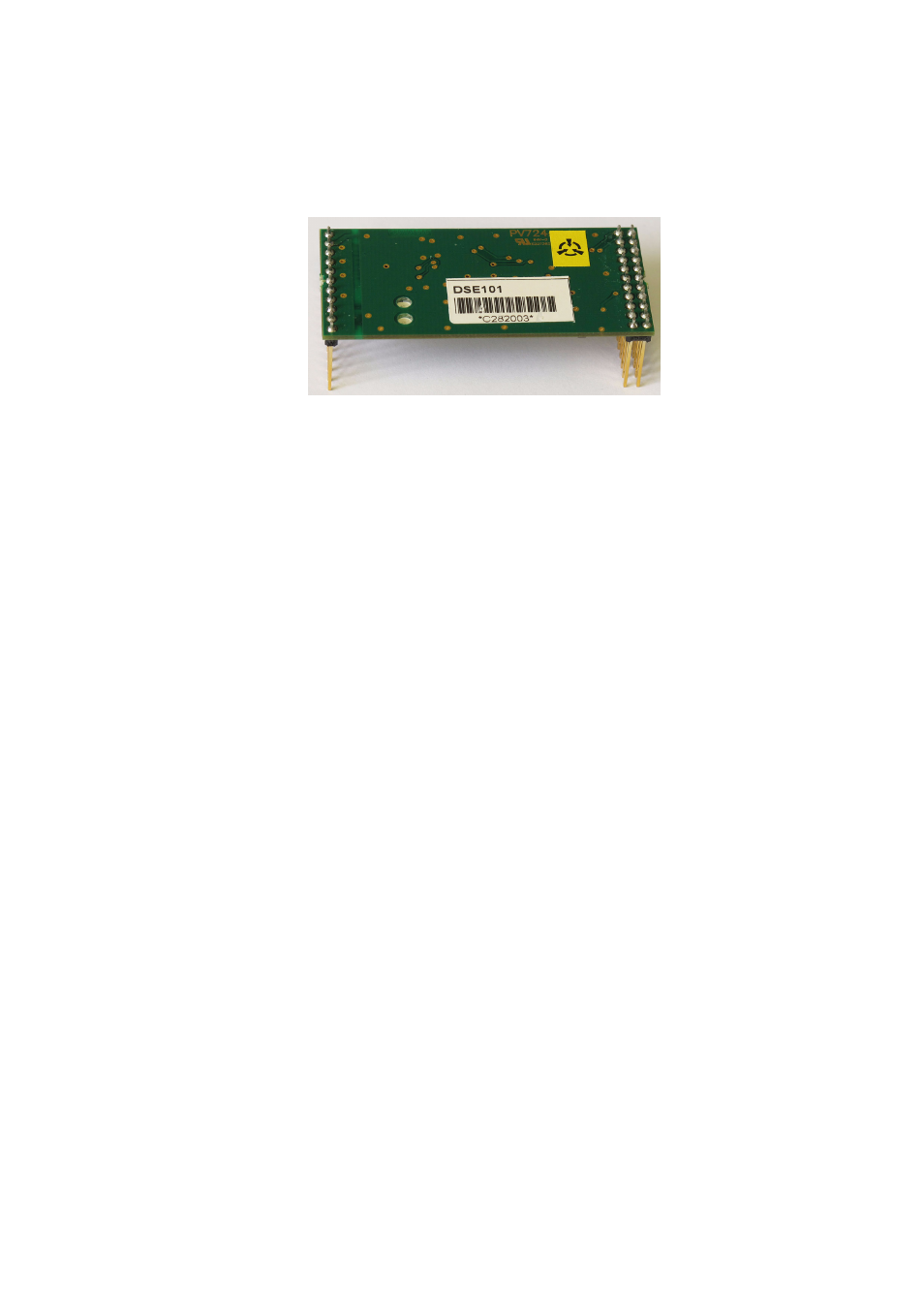

Figure 12
Ethernet Communication Module DSE101
Ethernet Communication Module DSE101 is a single, compact, printed
circuit board. It provides a 10Base-T Ethernet interface for the QML
logger, thus allowing the logger to be accessed, for instance, directly
from a LAN environment. DSE101 supports 10/100/1000 Mbps
switches and routers, full/half duplex operation, and autonegotiation.
Because DSE101 always transmits data at 10 Mbps, the connecting
switch or router must not be locked to 100 Mbps or faster speed.
DSE101 requires version 6.01 of MAWS software or higher to operate.
