Establishing Terminal Connection
To connect your computer to the QML logger serial port, proceed as
follows:
1. Connect the provided terminal cable to the Maintenance terminal
connector on the bottom flange of the enclosure and to an available
COM port on your PC, or, with an additional cable, to the USB port
on your PC. See
Figure 18 on page 41 .

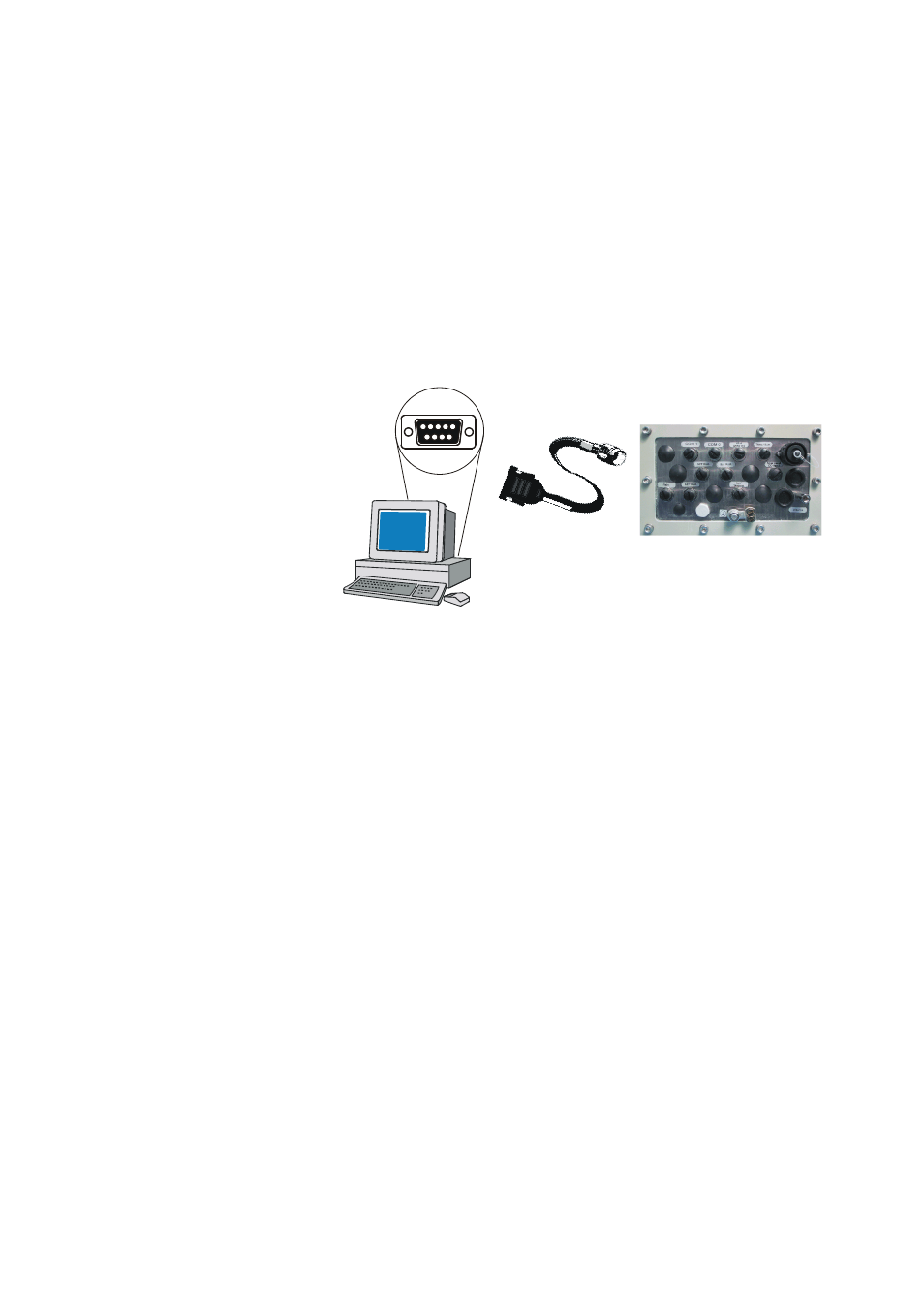

0411-045 Figure 18 Connecting Terminal Cable
2. Start the AWS Client software on your PC, as instructed in section
Using AWS Client Software on page 43 .
3. Set the communication parameters: 9600, N, 8, 1. For more
information, see section
Opening Service Connection on page 57 .
4. Open the service connection by selecting Terminal Connect on
the Maintenance menu or by clicking the Open command mode
button on the toolbar.
Figure 19 on page 42 shows the pin order for the terminal connector.
