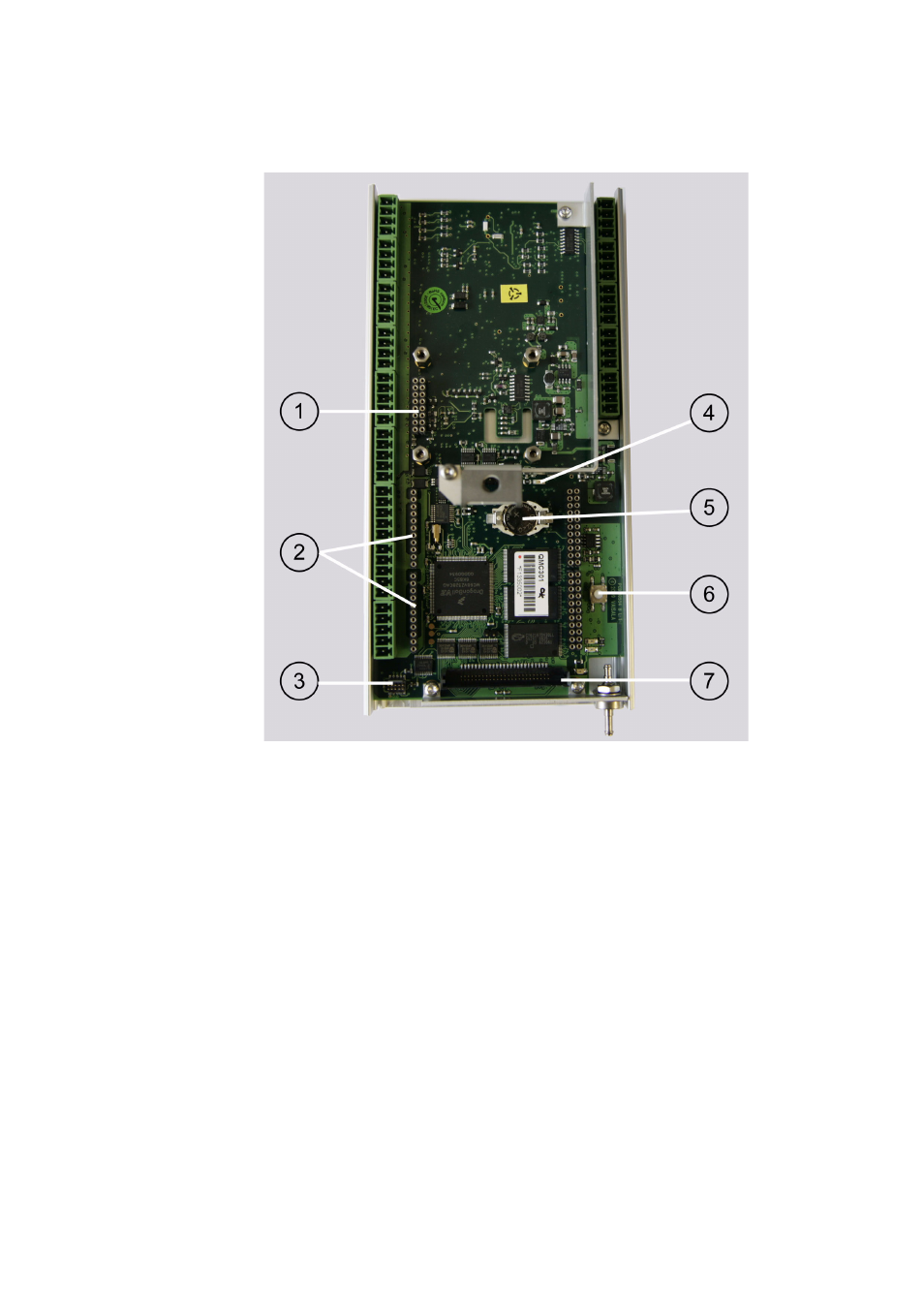

Figure 58, Qml logger without cover, And other components located under the cover. in – Vaisala Hydromet Data Collection Platform User Manual
Page 120
User's Guide ______________________________________________________________________
118 __________________________________________________________________M210784EN-E
1004-120
Figure 58
QML Logger without Cover
The following numbers refer to
1
=
Pressure sensor connector
2
=
Communication module places MOD1 and MOD2
3
=
SPI connector
4
=
Status LED (green)
5
=
Lithium battery for RTC
6
=
Reset button
7
=
CF Card connector
