Hardware Installation Guide 45
Antenna Installation Procedure

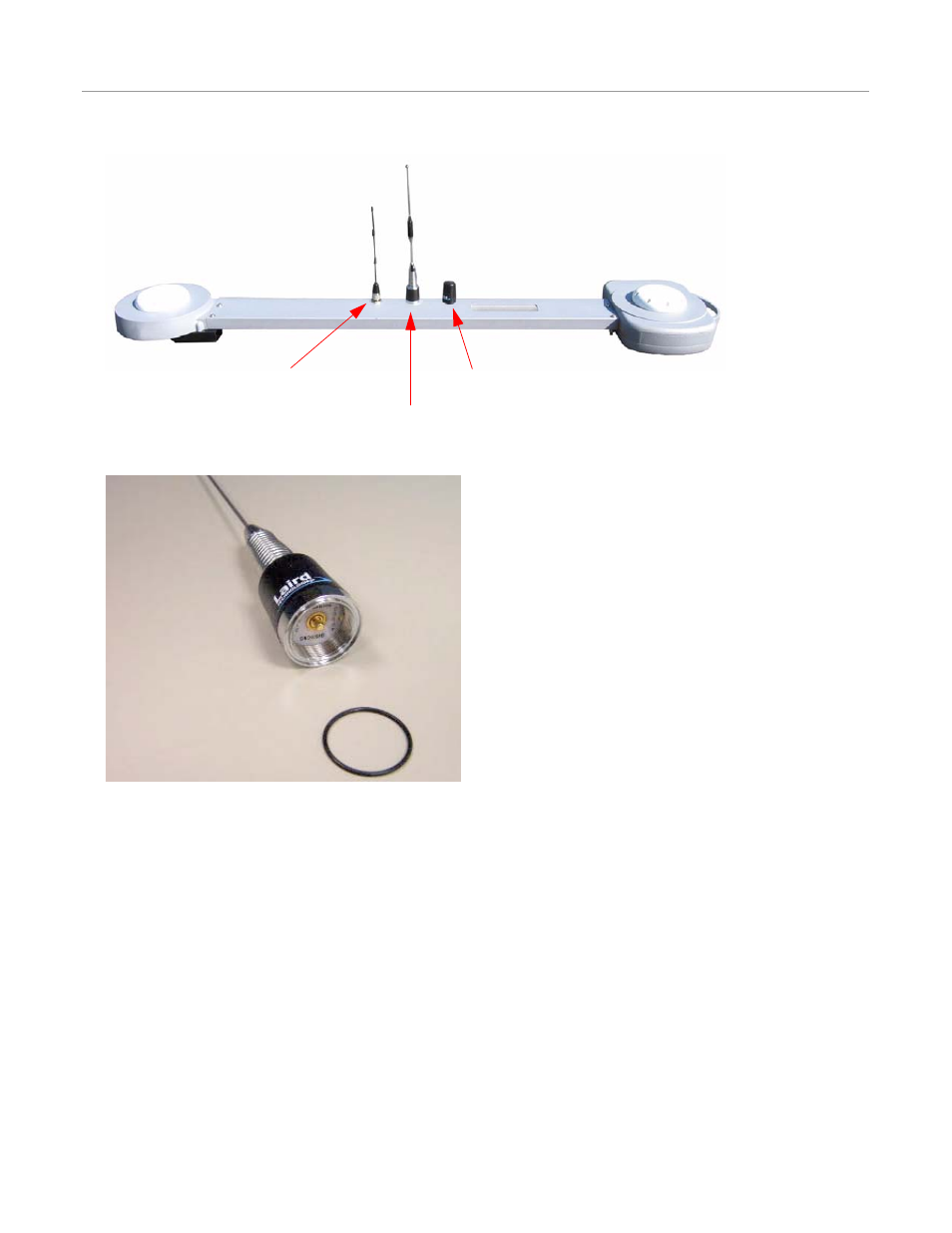

Figure 4-48 Attach the Antennas
Figure 4-49 Antenna O-ring
3. Refer to the Hardware Installation Manual to install the Roof Module on the vehicle.
4. Refer to the ParaDyme Owner’s Manual for further instructions on setting up OmniSTAR corrections, selecting a 900
MHz Base Station channel, and/or selecting the Base Station frequency for the UHF 4XX MHz or VHF 16X MHz radio
modems.
5. If using a 16X MHz or 4XX MHz UHF and VHF whip antenna, the antenna must be cut to the proper length to match the
frequency the radio will be using.
a. Refer to one of the following tables to ascertain the proper length for the antenna and frequency being used.
b. Loosen the two set screws at the base of the antenna using a 3/32" Allen wrench, and then remove the antenna from
the base.
c. Measure the antenna and mark the proper length using the diagram next to the table as a guide.
d. Cut the end of the whip with a hacksaw.
WiFi Antenna
Radio Modem Antenna
Cell Modem Antenna
