Ag Leader ParaDyme Radio Option Kits Hardware Installation Guide - Manual (Page 25)

Hardware Installation Guide 19
Changing or Installing a SIM Card
3. Flip the upper plastic retainer open. If a SIM card is already installed and needs to be removed, it can be removed by
sliding it out of the retainer clip to the left.

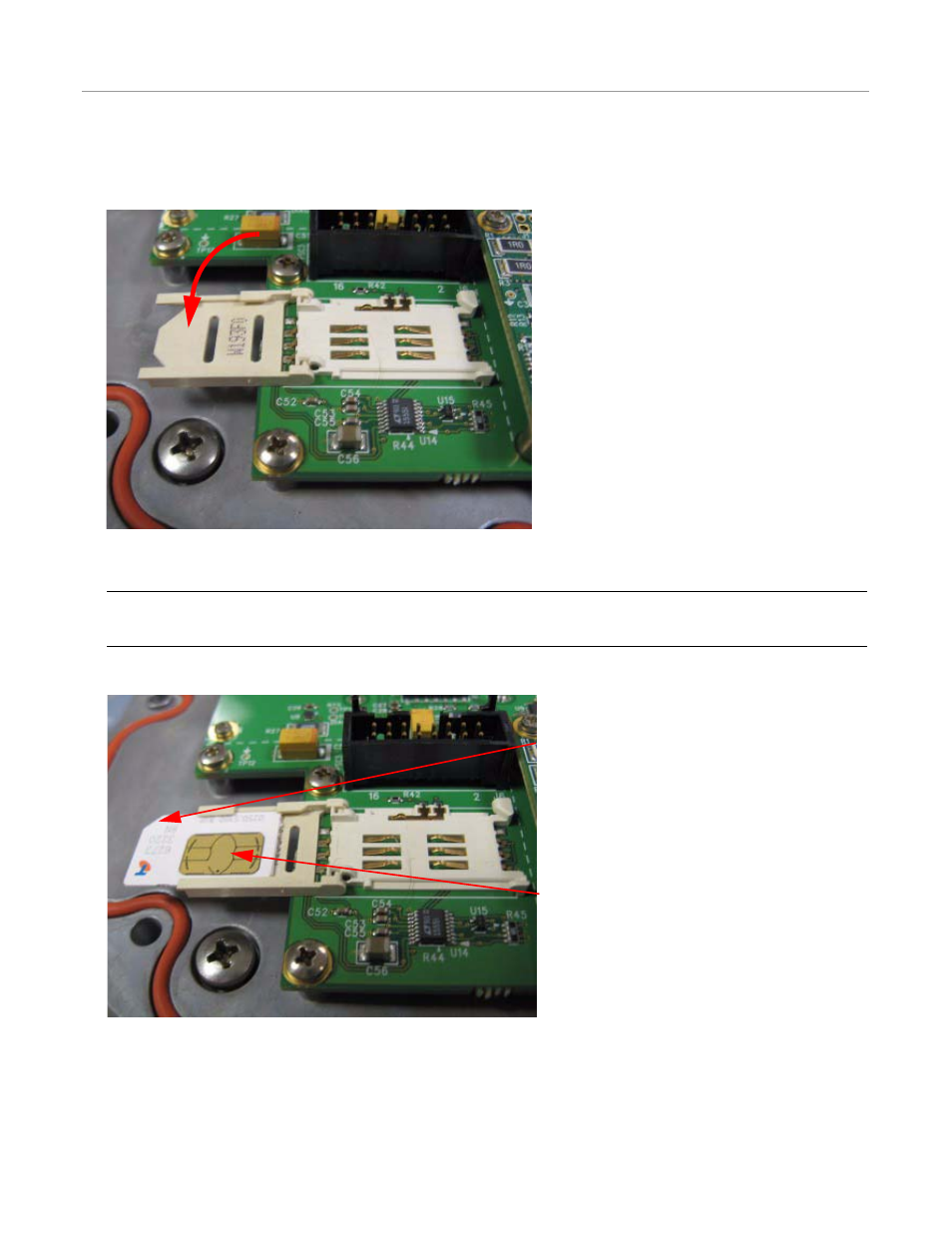

Figure 4-7 SIM Slot Opened
4. Slide the new SIM card into the retainer clip.
Note: The metal contacts need to be face up and the corner of the SIM card with the notch in it needs to be positioned
as shown.
Figure 4-8 SIM Card Inserted
Corner Notch in Proper Position
Metal Contacts Face Up
