Hardware Installation Guide
21
OmniSTAR Receiver Kit Installation Procedure (200-0504-02 Kit)
OmniSTAR Receiver Kit Installation Procedure
(200-0504-02 Kit)
1. Locate and remove the three existing M2 x 5mm screws holding the circuit board to the OmniSTAR mounting hole
locations with a #0 Philips screwdriver. See Figure 4-10.

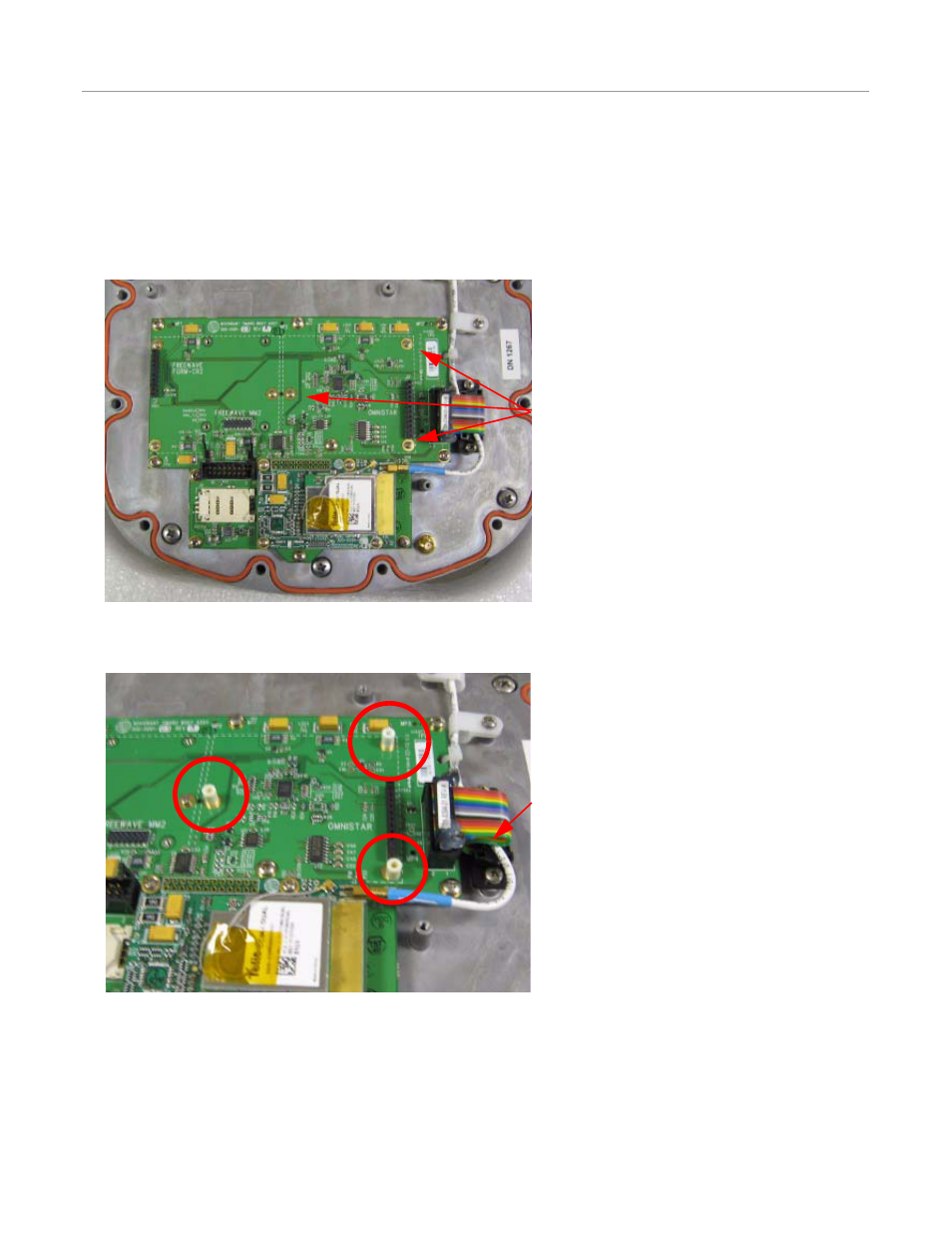

Figure 4-10 OmniSTAR Mounting Screw Locations
2. Place the three spacers on top of the three screw holes.
Figure 4-11 Spacers Installed
Mounting Screw Locations
