Hardware Installation Guide 31
900 MHz RTK Radio Modem Kit Installation Procedure (200-0505-04 Kit)
15. Tighten the bulkhead connector with a 5/8" open end wrench. Verify that the nut is tight and the hole is water tight.
16. Attach the antenna coax cable to outside connector of the bulkhead adapter. Do not over tighten.

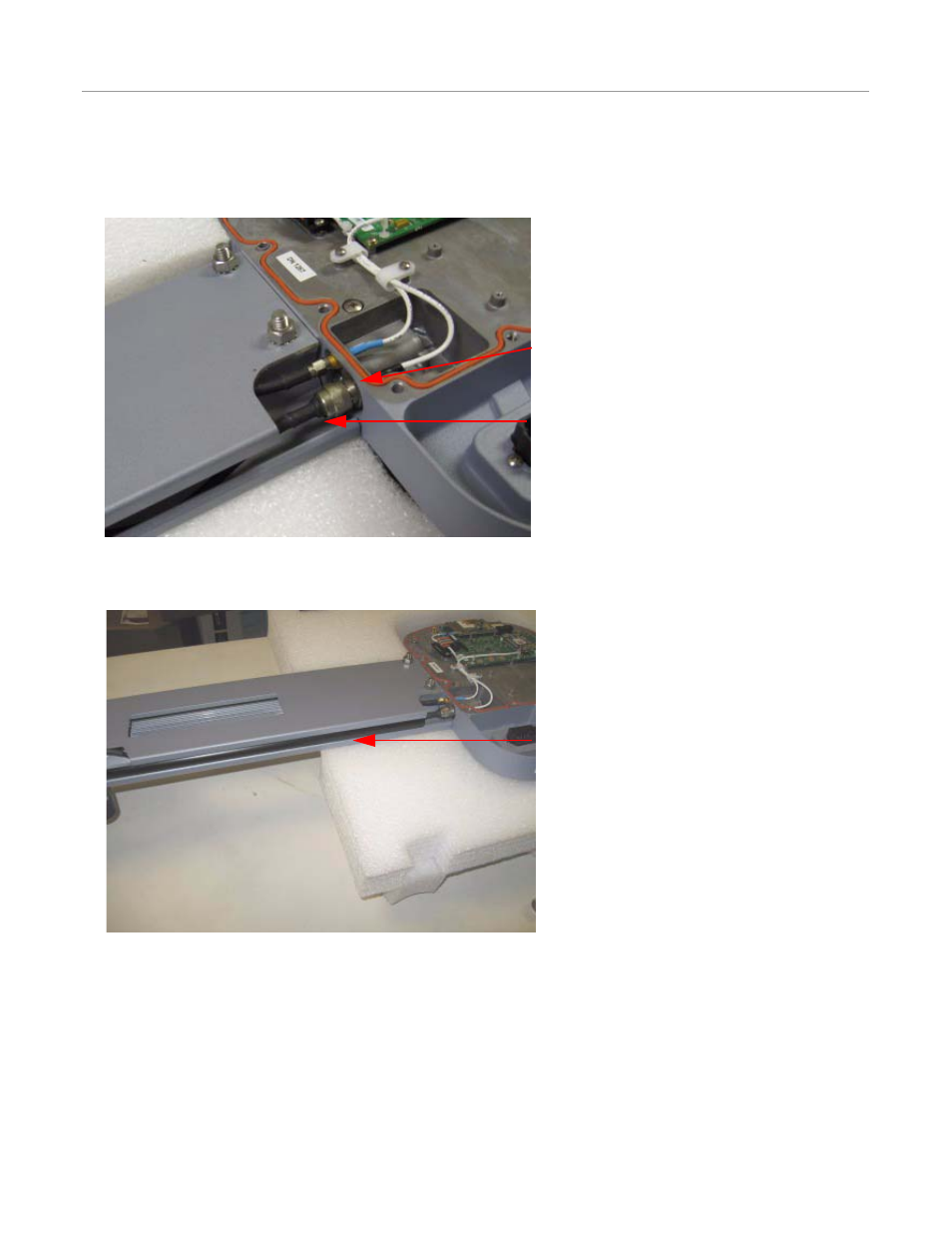

Figure 4-27 External Coax Cables Attached and Bulkhead Adapter Tightened
17. Replace the wire guide to the back of the cross arm.
Figure 4-28 Replace Wire Guide
18. If the installation is complete, go to the ParaDyme Smart Antenna Bottom Cover Installation Procedure on page 41.
19. After reinstalling the ParaDyme Smart Antenna Bottom Cover, attach the required antennas to the Roof Module as shown
in the Antenna Installation Procedure on page 44.
Bulkhead Adapter
Antenna Coax Cable
Wire Guide Replaced
