Hardware Installation Guide 35
UHF and VHF Radio Modem Kit Installation Procedure
7. Attach the bracket to the UHF or VHF Radio Modem with four M2.5 x 4mm screws provided. Torque the screw to 2 in-lb
(0.2 Newton meters). See Figure 4-34.
Note: Verify that the bracket is attached as shown with the attachment tabs orientated down. If the bracket is inverted,
it will interfere with the bottom cover.

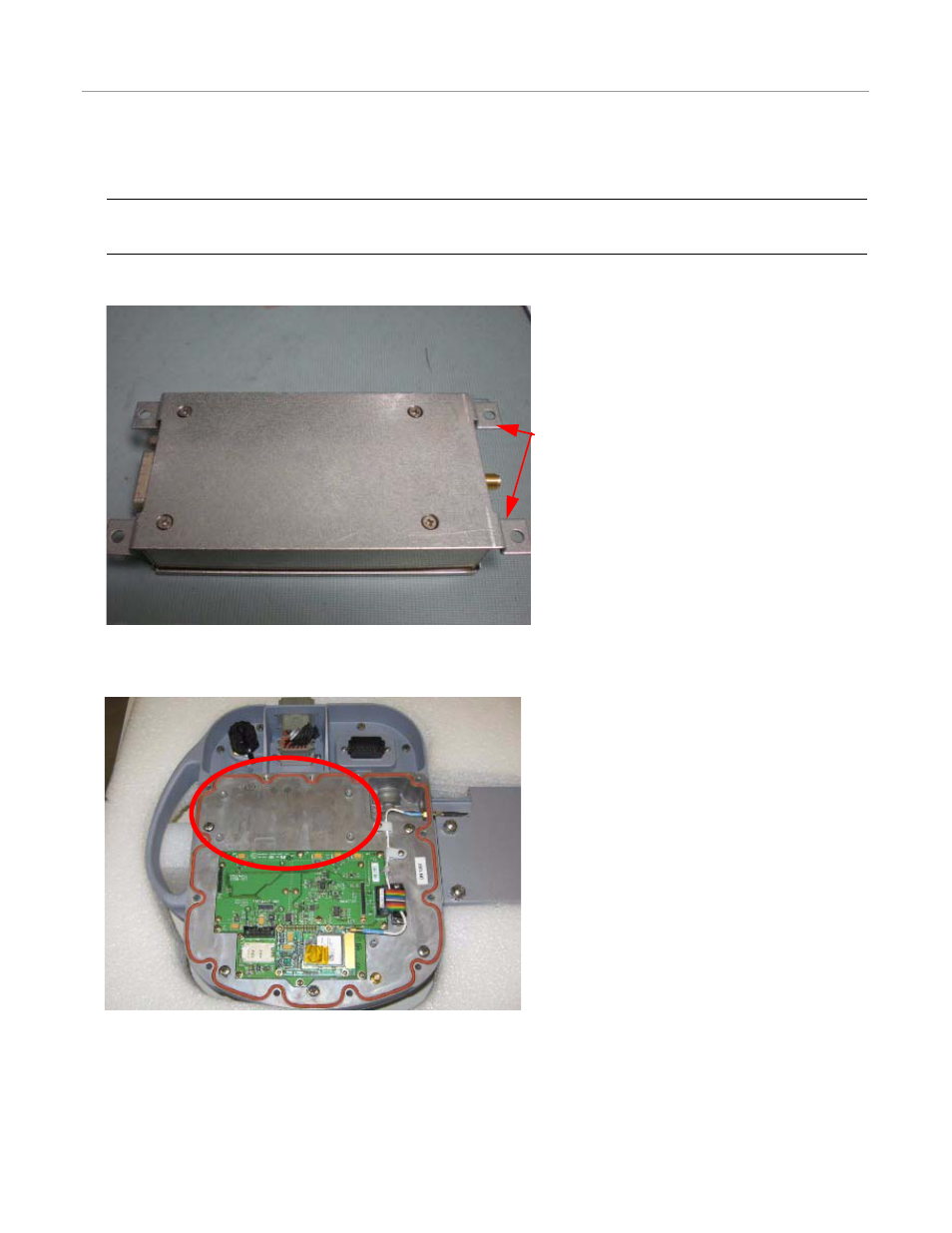

Figure 4-34 UHF or VHF Radio with Mounting Bracket
8. Locate the mounting position on the ParaDyme Smart Antenna for the UHF or VHF radio shown in Figure 4-35.
Figure 4-35 UHF or VHF Radio Mounting Location
Verify Tab Position
