UHF Radio Modem Kits
UHF Radio Modem Kits
There are three versions of the UHF Radio Modem kits. The components in these kits are identical except for the antennas.
The differences in the antennas are shown in Table 3-3.
Table 3-3 UHF Radio Modem Kit Antennas

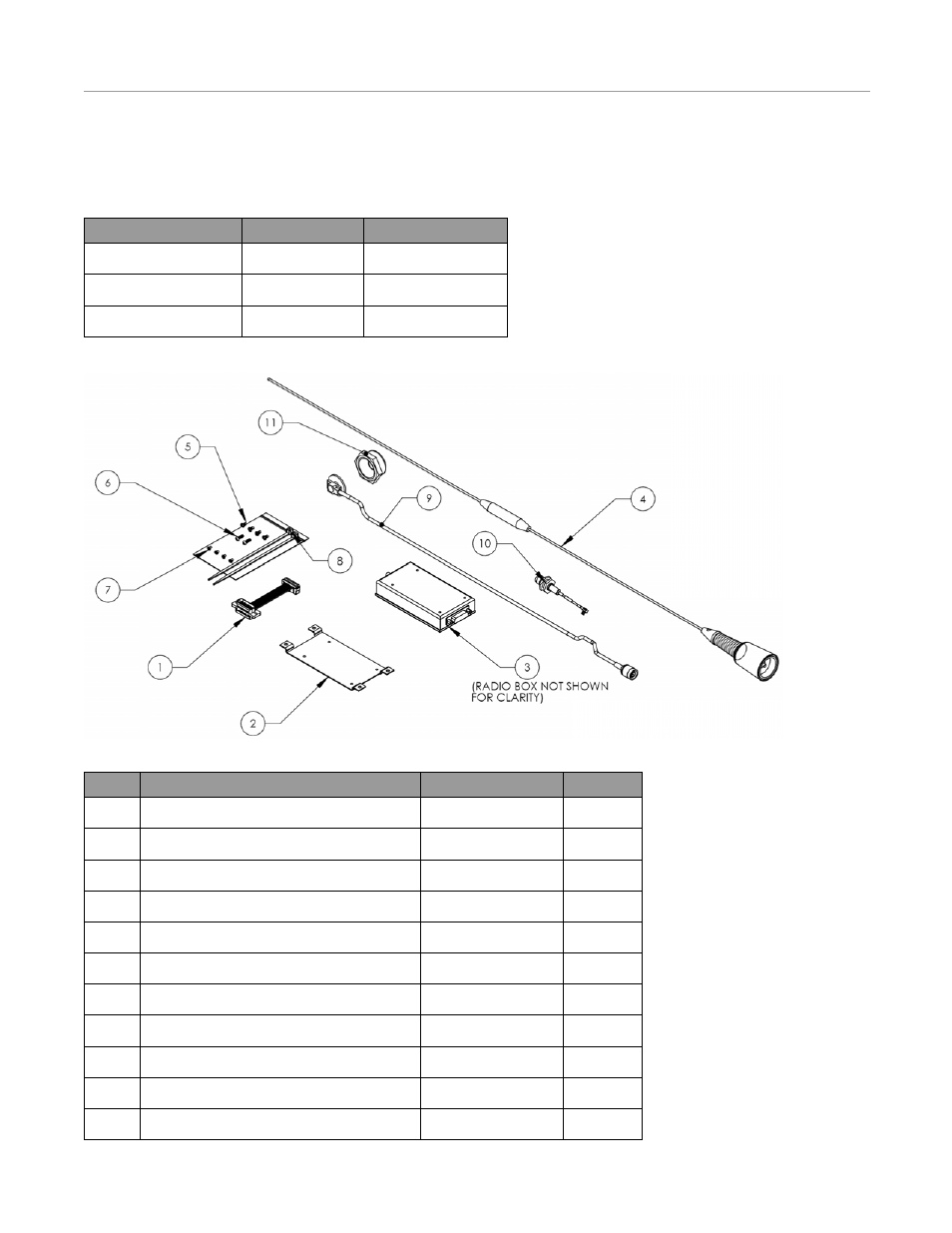

Figure 3-3 UHF Radio Modem Kit Components (PNs: 200-0506-04, 200-0578-04, 200-0579-04)
Table 3-4 Installation Kit Components (PNs: 200-0506-02, 200-0578-02, 200-0579-02)
Kit Antenna MHz
200-0578-04 500-0093-02 406-430
200-0579-04 500-0094-02 430-450
200-0506-04 500-0095-02 450-470
Item Component Part Number Quantity
1. Ribbon Cable 201-0401-01 1
2. Radio Mounting Bracket 202-0248-01 1
3. UHF Radio Module 500-0348-01 1
4. Antenna See Table 3-3 1
5. Screw, M3 x 5mm 515-0072-01 4
6. Screw, 4/40 x 3/8 514-0112-01 2
7. Screw, M2.5 x 4mm 515-0068-01 4
8. Cable Tie 510-0078-01 2
9. ParaDyme Housing to Whip Coax Cable 201-0423-01 1
10. Internal Coax Cable with MCX Connector 201-0399-01 1
11. NMO Cap 510-0087-01 1
