UHF and VHF Radio Modem Kit Installation Procedure

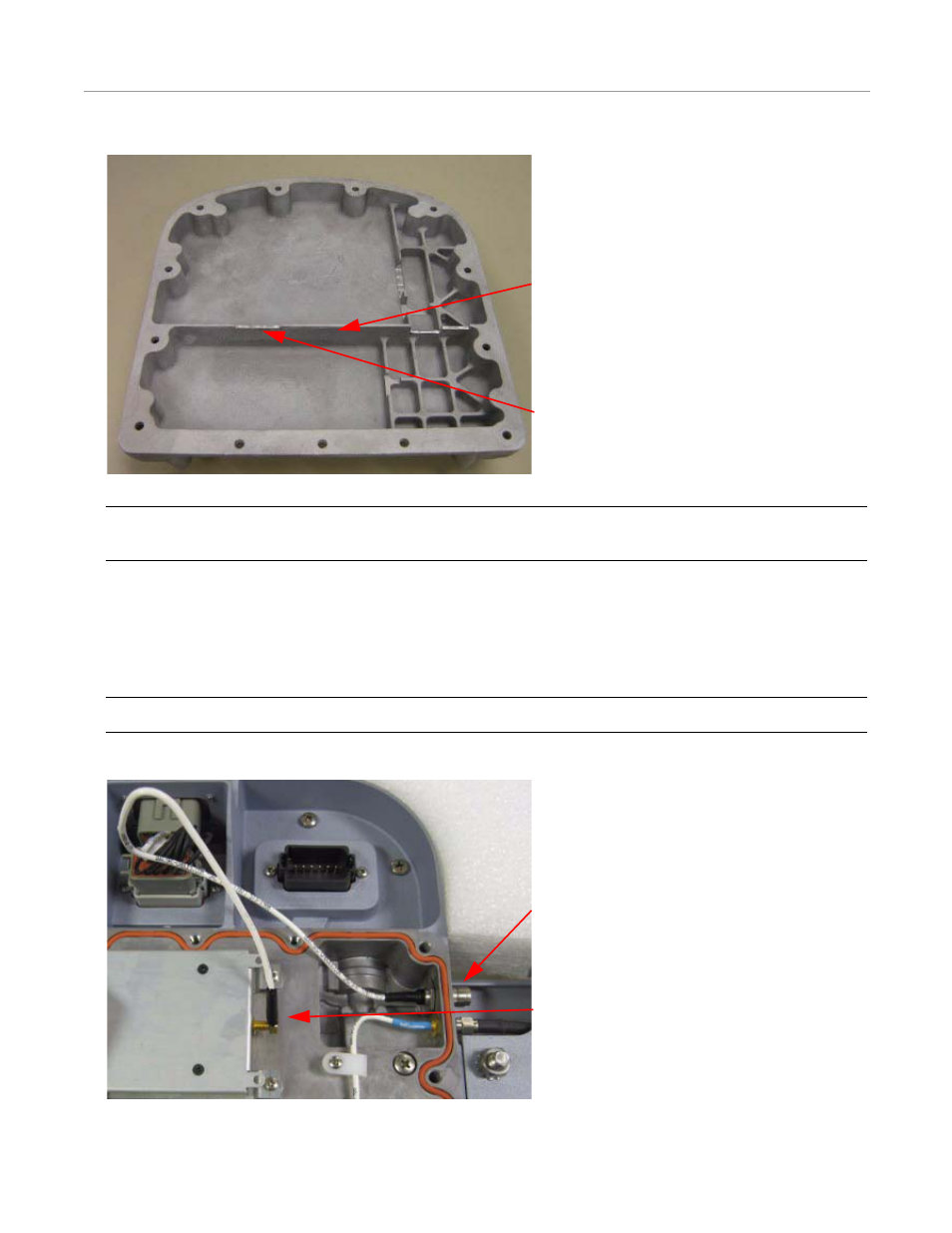

Figure 4-40 Bottom Cover
Note: For ParaDyme systems with Part Number 200-0473-02 or earlier, the exiting coax cable that was installed with
the ParaDyme unit can be used and does not need to be replaced. Step 14 can be skipped below.
13. Attach one end of the VHF or UHF internal coax cable to the VHF or UHF radio.
14. Attach the bulkhead adapter connector of the internal coax cable to the housing of the ParaDyme Smart Antenna as shown
in Figure 4-41. Tighten the bulkhead adapter with a 5/8" open end wrench. Verify that the nut is tight and the hole is water
tight.
Note: Verify that the lock washer is on the outside of the housing before attaching the nut.
Figure 4-41 Coax Cable Connected
Reinforcement Wall
Gap for Ribbon Cable
Bulkhead Adapter
UHF or VHF Radio Connector
