Hardware Installation Guide
25
900 MHz RTK Radio Modem Kit Installation Procedure (200-0505-04 Kit)
3. Insert the antenna connection of the external coax cable through the hole where the plug was removed.

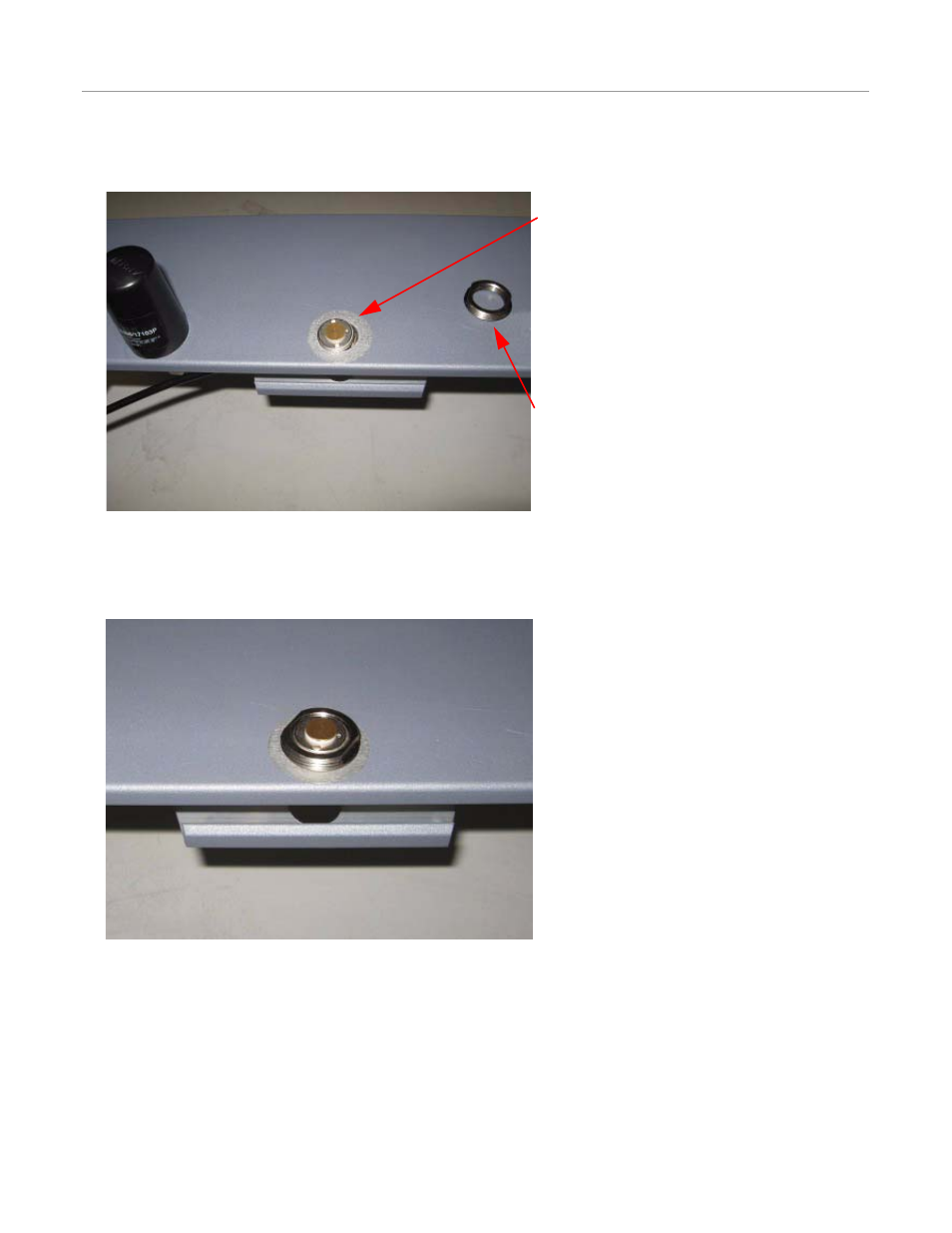

Figure 4-16 Install External Antenna Cable
4. Verify that the coax cable is pointed to the Smart Antenna and fits behind the existing cell modem antenna coax. Connect
the antenna connector to the cross beam using the antenna connector retainer. Torque the retainer to 55 in-lbs (6.2 Newton
meters) with a 12mm and 24mm wrenches.
Figure 4-17 Antenna Connector Secured
Antenna Connector
Antenna Connector Retainer
