Hardware Installation Guide 23
OmniSTAR Receiver Kit Installation Procedure (200-0504-02 Kit)
5. Loosely attach the SMA connector of the OmniSTAR cable to the connector shown in Figure 4-14.
6. Secure the MCX end connector to the OmniSTAR board. The MCX connector should snap into place.
7. Return to the SMA connector and torque the hexagonal nut to 8 in-lb (0.9 Newton meters) with an 8mm open end wrench.

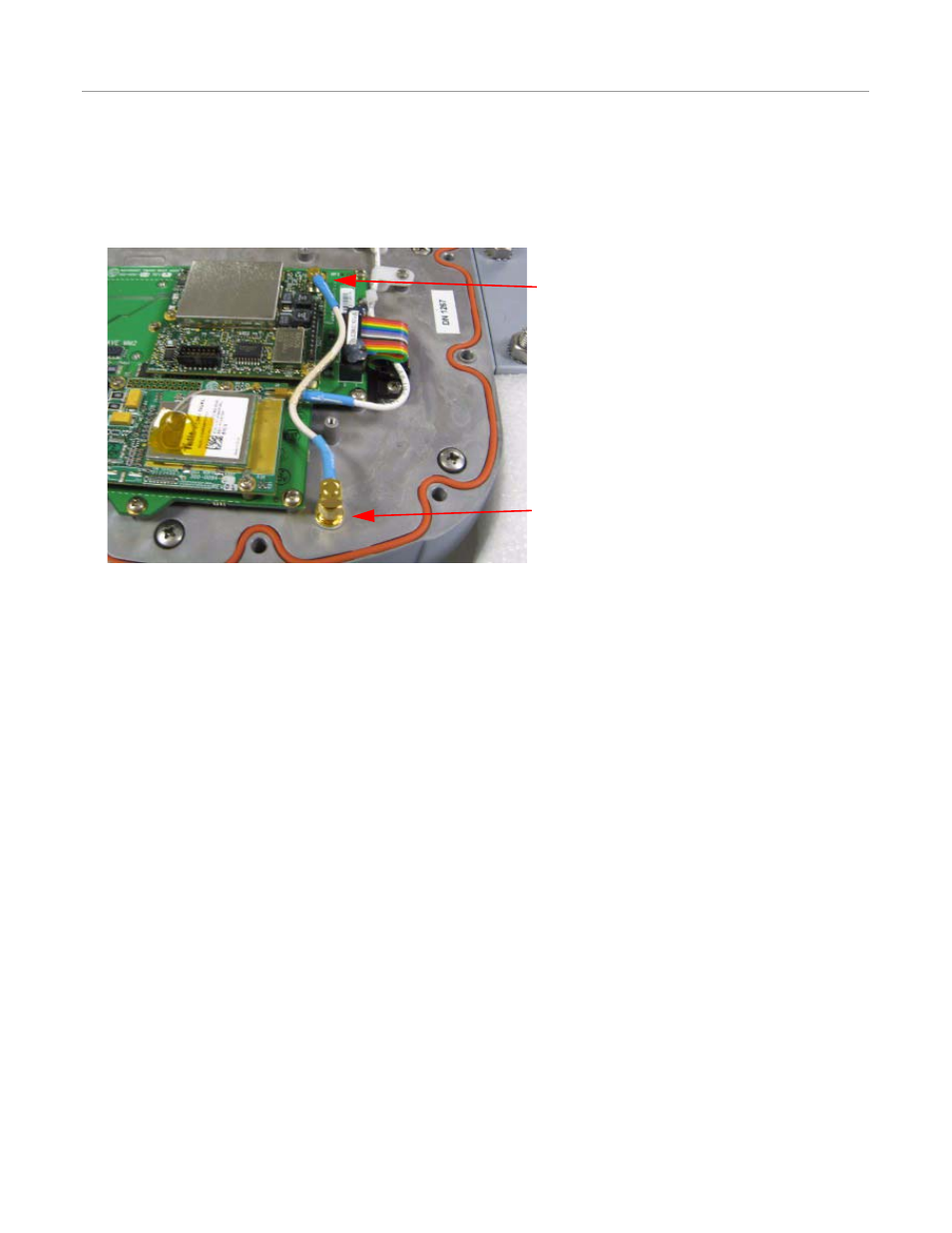

Figure 4-14 OmniSTAR Cable Routing
8. If the installation is complete, go to the ParaDyme Smart Antenna Bottom Cover Installation Procedure on page 41.
9. If other radios that require a Radio Modem or another antenna have been installed on the system: first reinstall the
ParaDyme Smart Antenna Bottom Cover, and then attach the required antennas to the Roof Module as shown in the
Antenna Installation Procedure on page 44.
MCX Connector
SMA Connector
