30 Radio Option Kits
900 MHz RTK Radio Modem Kit Installation Procedure (200-0505-04 Kit)
12. Remove the two cable clamps shown in Figure 4-25 with a #1 Phillips screwdriver. Route the internal coax cable through
these cable clamps and then reattach them.
Note: Verify that the cable clamp loops are facing the same direction (down) as shown in Figure 4-25 after they are
reattached, otherwise the cover will not fit properly. The internal coax cable(s) must be attached so that they pass
between the two cable clamps or they will be damaged when the cover is reinstalled.

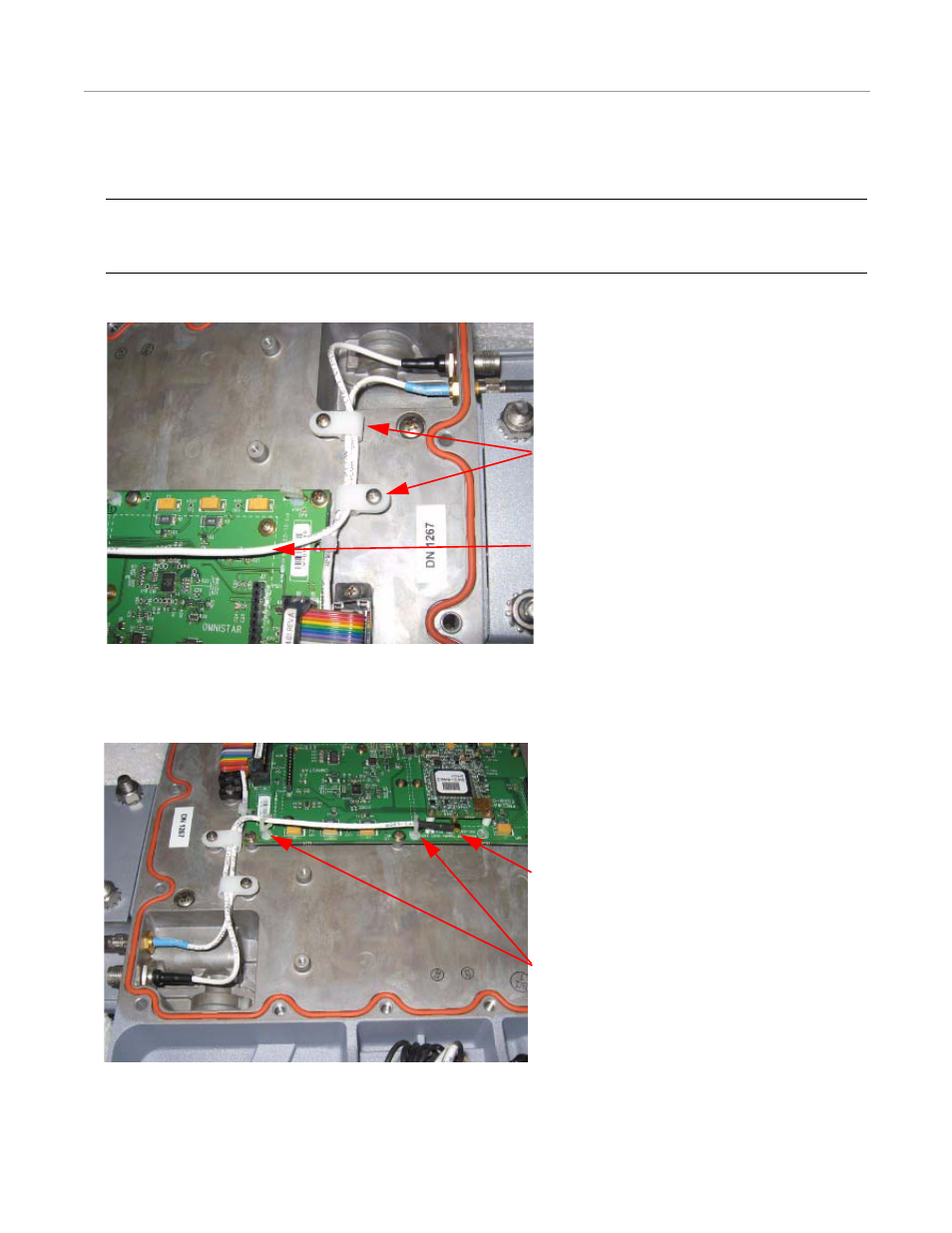

Figure 4-25 Internal Coax Cable Secured by Cable Clamps
13. Attach the end of the internal coax cable to the 900 MHz radio.
14. Secure the cable into the standoff saddles as shown in Figure 4-26.
Figure 4-26 Internal Coax Cables Secured
Cable Clamps
Internal Coax Cable
Attachment of Internal Coax Cable to Radio
Saddle Standoffs
