2 Firmware Version 5.2
connections. Route the cable as shown below to ensure that moving parts do not pinch cables,
extensions, or adapters.
W
ATER
M
ANAGEMENT
M
ODULE

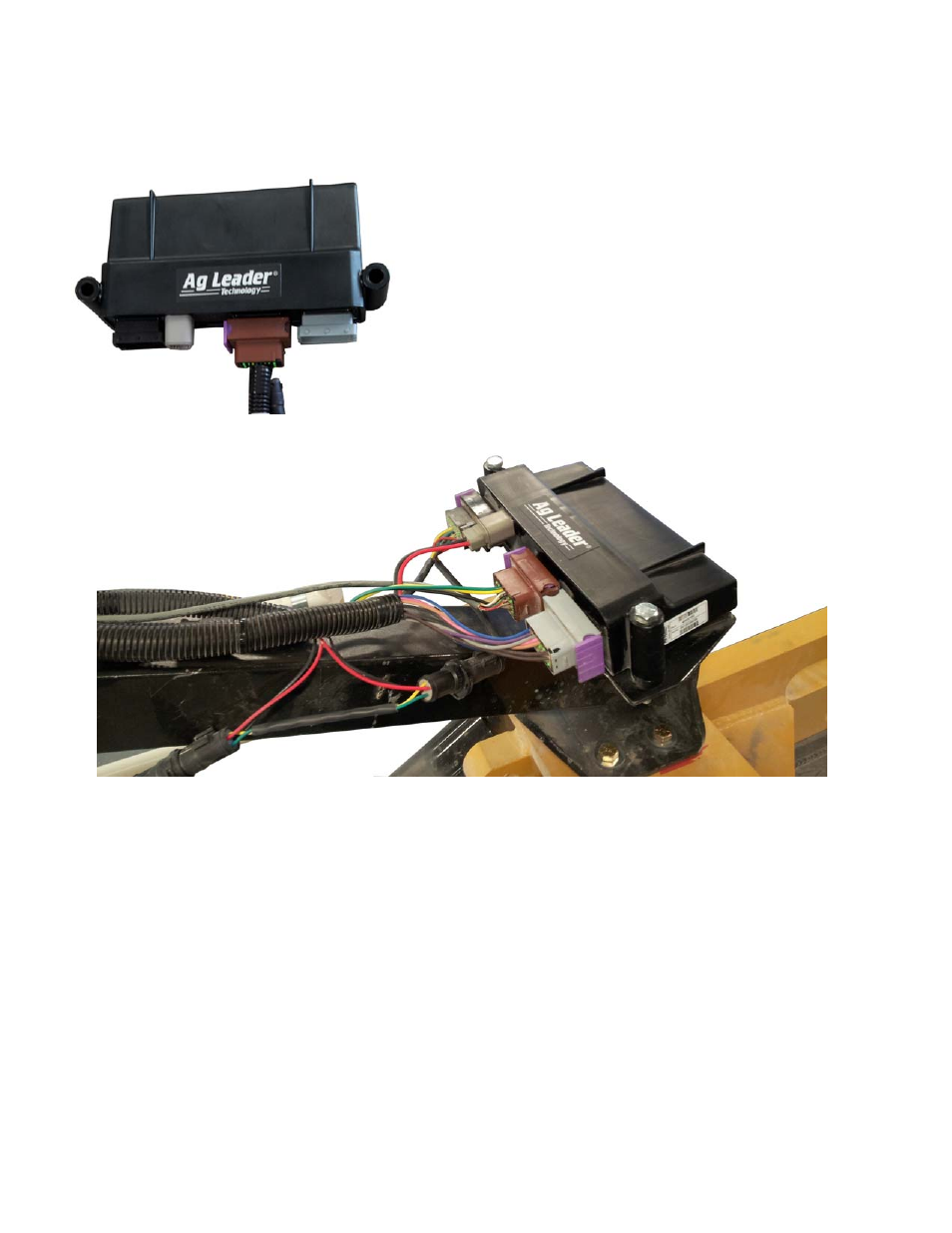

The module was designed to be oriented so the cable
connections face the tractor. This is so the sensors are
oriented correctly, and work as they were designed. Use
the provided Module adapter plate and hardware to
secure the module to the plow in the location as shown on
the previous page. The label should also face Up when
installing.
Make sure that you color match the connections from the Harness to the module and you don’t force the
connections, this can damage electrical pins. The round connections on the harness will be used to
power the GPS receiver. The 2 large, and 1 small square connections will connect to the module. The
Brown connector will be used for the GPS signal input.
