23
A
UTO
T
ILE

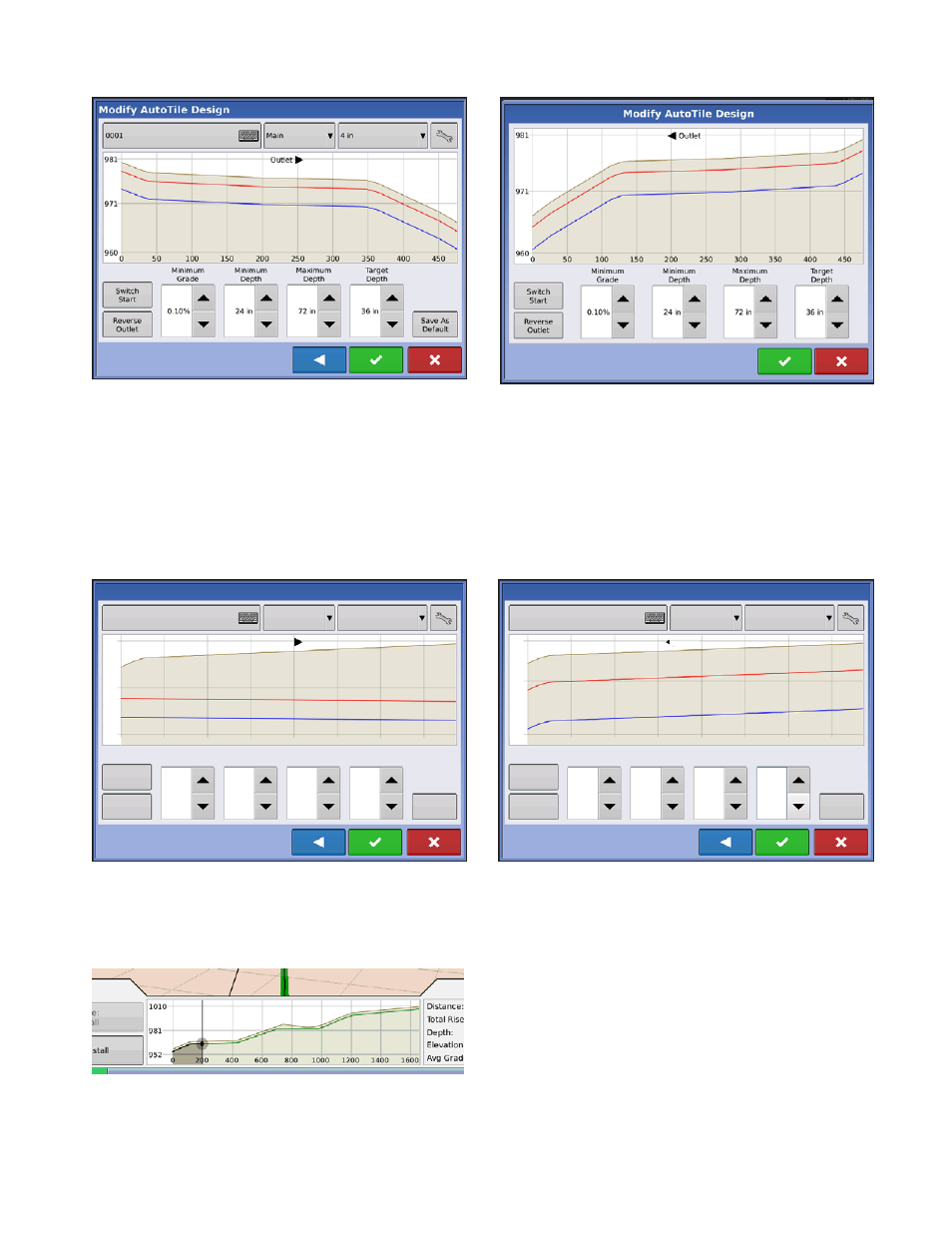

On the graph display screen, installation always proceeds from left to right. AutoTile assumes you will
start at the lower end of the survey, and that the lower end is the outlet of the tile.
If Intellislope shows your vehicle location at the right side of the screen when you want to start installing,
press “Switch Start”. The “Switch Start” button switches the starting and ending locations.The ground's
profile will be flipped, and your current position will now appear on the left side of the screen.
R
EVERSE
O
UTLET
C
OMMAND
The “Reverse Outlet” button changes which end the outlet is on. The outlet end is the end of the path
towards which the water drains. There is no effect on the ground profile, which remains unchanged. The
difference appears in the shallowest and deepest installation profiles, which now are designed to drain in
the opposite direction.
As you start installing, you should always progress
from the left side of the profile graph to the right side.
If your vehicle position indicator is at the right side,
press on the profile graph and modify your outlet
location and/or your starting location.
Modify AutoTile Design
Maximum
Depth
Minimum
Grade
Minimum
Depth
Target
Depth
Save As
Defaults Reverse
Outlet
Switch
Start
Select Type Select Product
Outlet
001
1005
1002
998
0 100 200 300 400 500 600 700 800 900 10
0.10 % 24 in 72 in 36 in
Modify AutoTile Design
Maximum
Depth
Minimum
Grade
Minimum
Depth
Target
Depth
Select Type Select Product
Outlet
001
1005
1002
998
0 100 200 300 400 500 600 700 800 900 10
0.10 % 24 in 72 in 36 in
Save As
Defaults Reverse
Outlet
Switch
Start
