36 Firmware Version 5.2

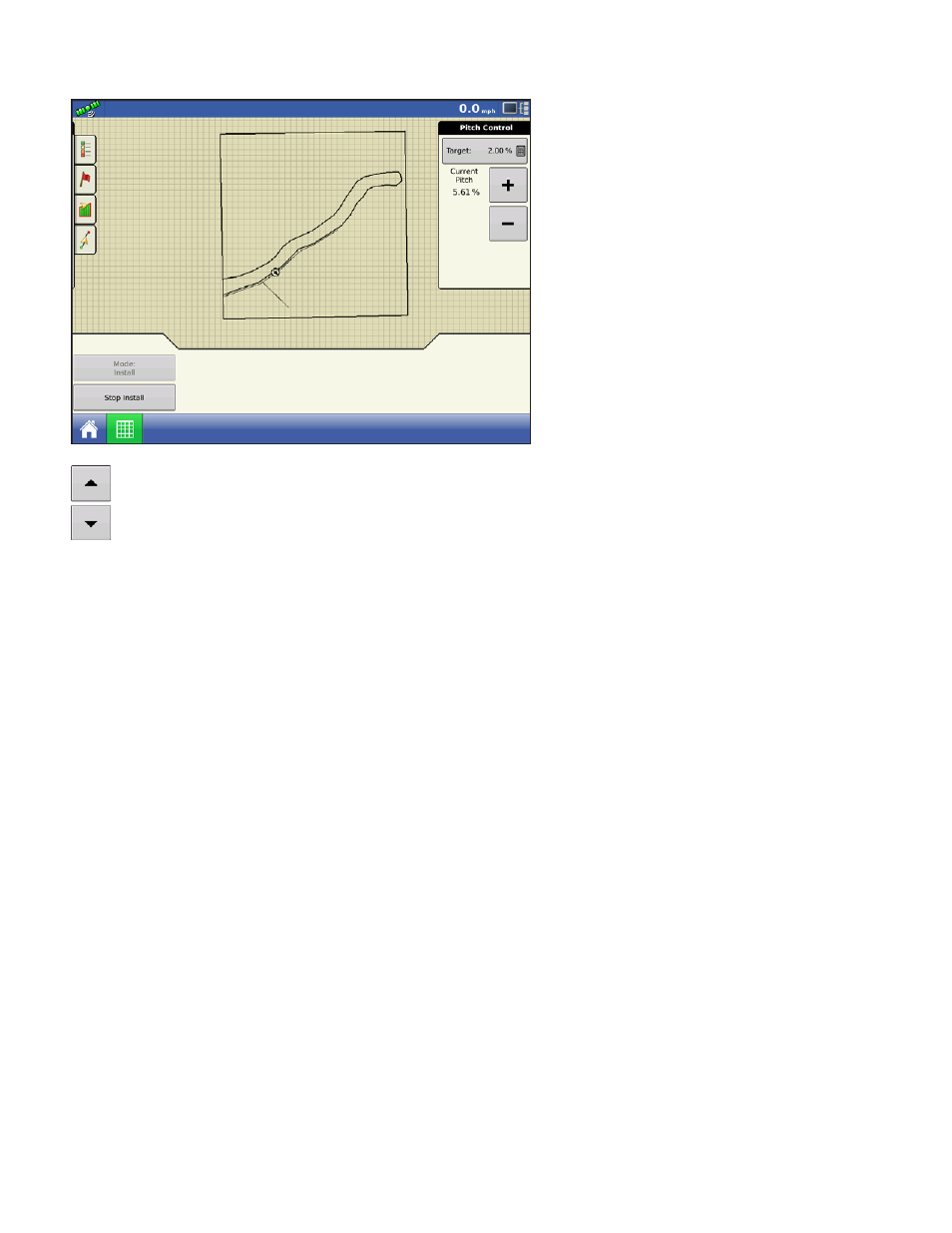

Use + and - buttons to raise and lower
pitch or use Target button to enter a
numeric value for pitch.
The installation grade will approximate
the plow shank's pitch.
The module slope sensor will match to
the provided Target Pitch.
Press Stop Install button to end Pitch
Control.
To extract the plow, press the “Up” button to manually nose the plow up while pulling ahead to
bring the plow out of the ground.
Never try to pick up the plow using the three-point hitch, or the wheel lift frame for a pull type,
when it is in the ground. Always pitch the plow up and pull forward. When the cutting edge is close
to the surface, use the wheel frame or three-point hitch to raise to transport position.
