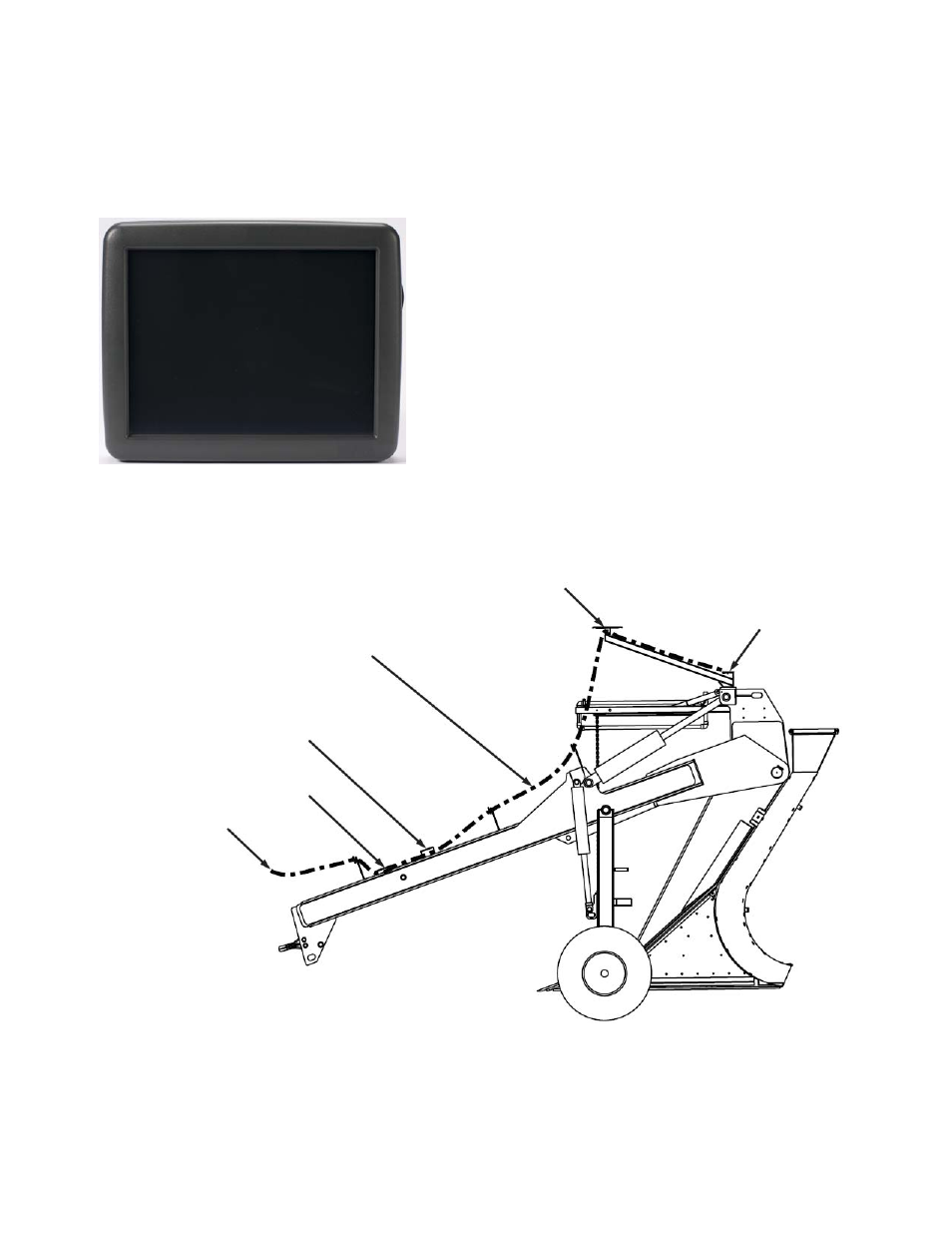

The AgLeader Integra display will mount in the cab. Use the
provided cables in the cable kit to install power direct to the
battery terminals, routing them out of the way, and clear of
moving parts. Use the provided zip ties, to secure the cables.
If you have excess cabling, coil excess cables in an area that
will not get caught on moving parts. A RAM mount is provided
to mount the display in the cab, and allows for flexibility to
install where windows and gauges are not obstructed.
Locate the 4001979-3 cable, and route this toward the back of
the tractor. For most front wheel assist tractors this should
reach to the plow harness that is installed on the tile plow. If
you need additional length, extension cables are available
from your dealer in 6 and 12 ft lengths for 4-Wheel drive tractors.
P
LOW
H
ARNESS
Cable Routing
GPS Antenna Location
Wheel Depth Valves
Pitch Valves
Tractor Connection
Module Location
Figure 1
Locate cable PN 4003415. This will be mounted on the plow, with the single round cable connector at
the hitch. There are 2 weather pack connectors that will connect to the Proportional valve. If you cannot
route the cables to make these ends work, extensions can be ordered by your dealer to make the
