IAGNOSTICS
D IAGNOSTICS
D IAGNOSTICS
D
EVICES

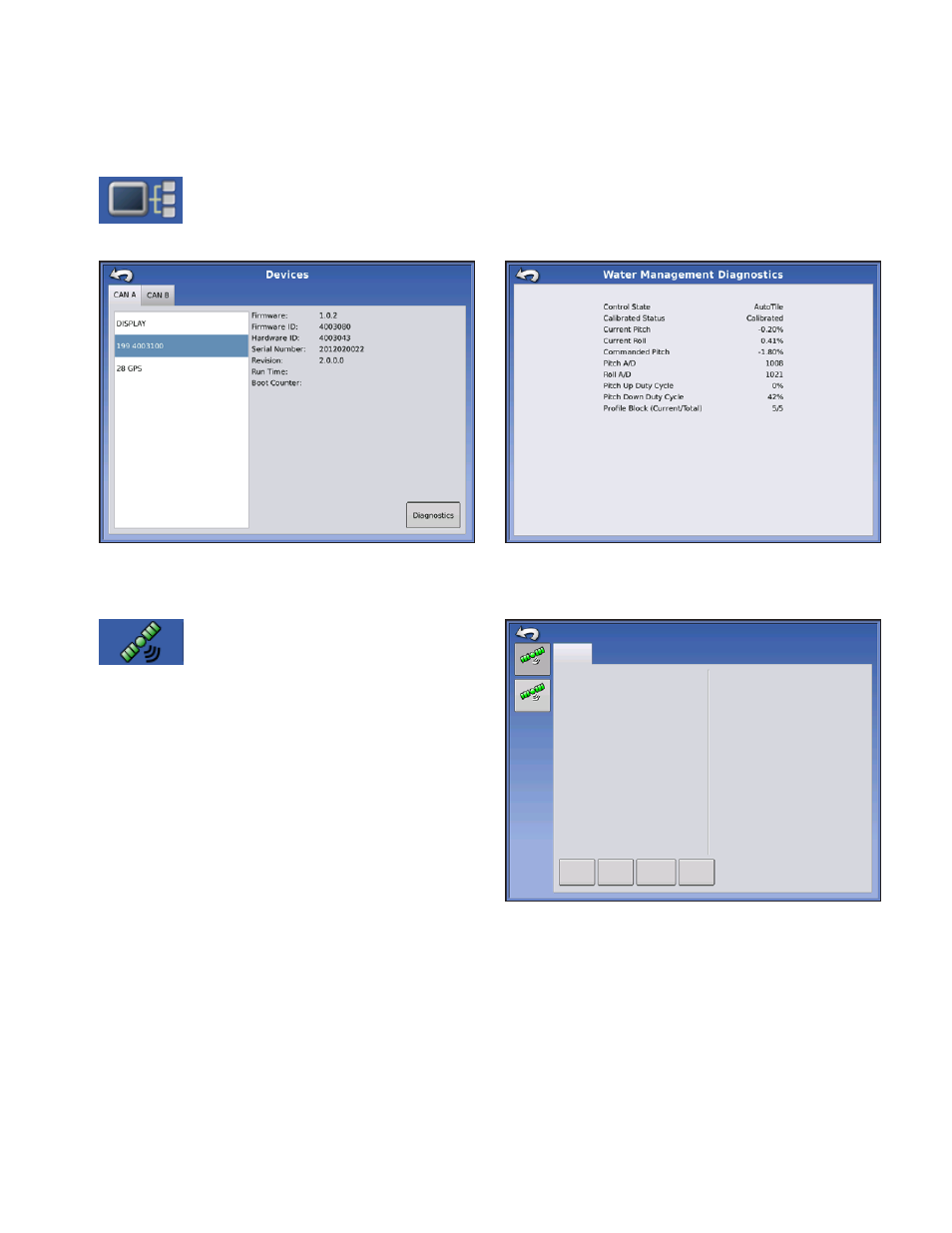

Pressing on the Device Information button, located in the upper right corner of the display,
opens the Devices screens. Technical support may request that you look at these screens
for help in diagnosing a problem.
GPS
During your field operation, the GPS
(satellite) button in the upper left-hand
side of the Status Bar should appear as
green, which means you are receiving a differential
GPS signal. If this icon appears yellow, you are still
receiving GPS but are not receiving a differential
signal; and if it appears gray then you have lost
GPS. In either case, you should check your GPS
settings.
The two buttons on the top left will appear if the
display is receiving GPS signals from two GPS
receivers (one from plow-CAN, one from vehicle -
serial).
GPS Information
General
Latitude (N)
Longitude (W)
Elevation:
Heading:
Number of Satellites:
Differential:
GPS Speed:
Position Rate:
Speed/Heading Rate:
UTC Time:
UTC Date:
HDOP:
VDOP:
PDOP:
Port:
Frequency:
SNR:
Correction Age:
42.002761200
-93.628253433
1239.600 ft
180.00660
4
Diff On
0.00 mph
10 Hz
10 Hz
Serial
CAN
11:43:02
N/A
1.3
2.5
4.3
NMEA, 38400, 8 N 1
N/A
N/A
Nav Point:
Guidance GPS:
5f-8fd6-1d5ce611e30c
N/A
Log GPS
