24 Firmware Version 5.2

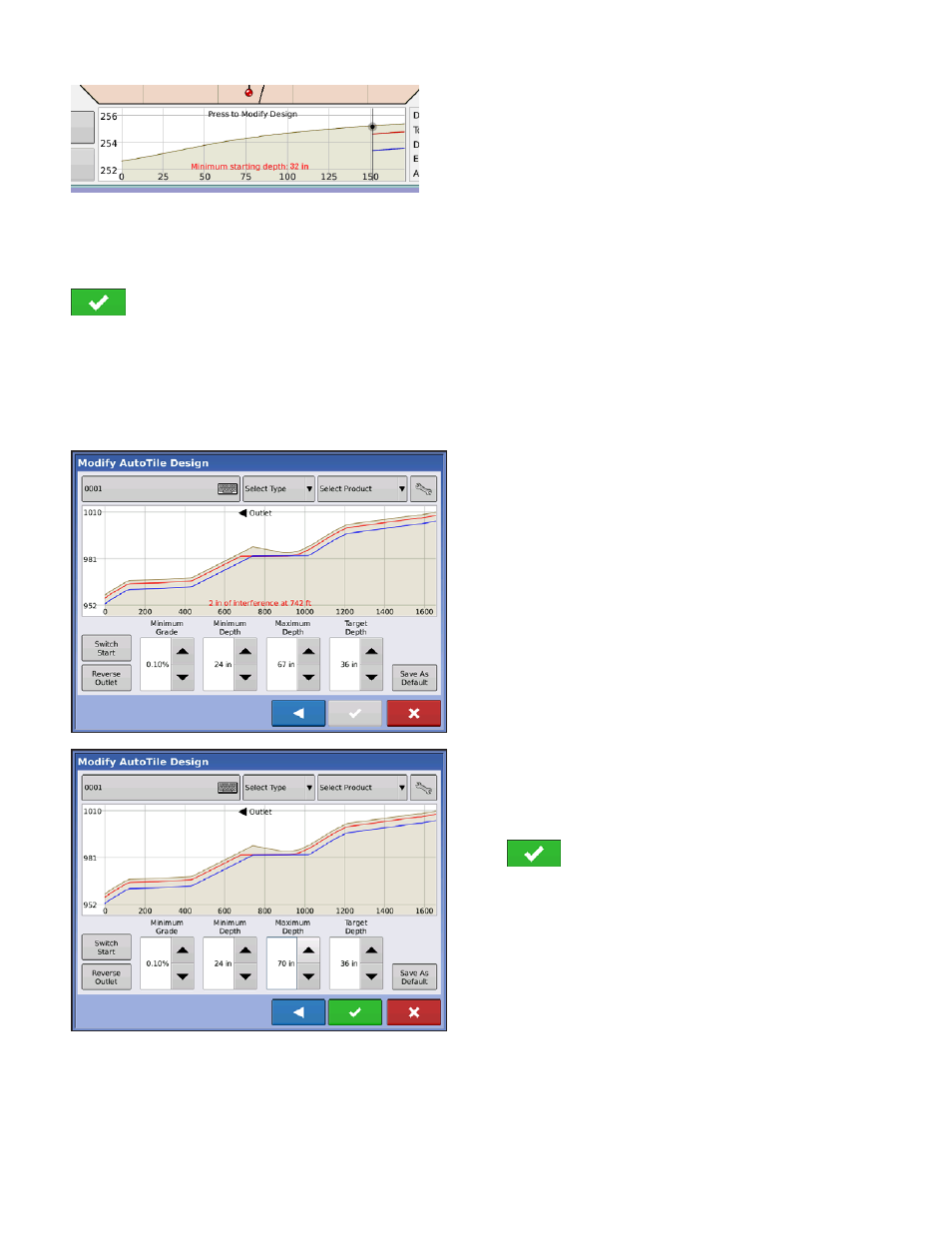

You are allowed to start installation at any point along
the surveyed path. If the profile graph is as shown as
shown on the left, and you start installation, the tile will
be placed at a 0.0 grade
A
DJUSTING
P
ROFILE TO ALLOW
T
ILING
When a solution exists (which depends on the topography and the constraints you have specified)
will be displayed.
The profiles displayed will enforce the “Minimum Grade”, “Minimum Depth” and “Maximum Depth”
constraints that you select. The display will create a target profile that maintains Target Depth as much
as possible. As you adjust these parameters, the profile will update.
This can be useful in a number of ways. For example, to make the plow easier to pull, you might wish to
decrease the “Maximum Depth” constraint as much as possible.
It is possible that no solution exists given the
topography and constraints. Here, the system
displays the message “2 in of interference at 742 ft”
Given the topography and user constraints there is
no profile that can be installed that meets all these
constraints.
Increase the “Maximum Depth” to 70 in. to create a
solution. The shallowest solution requires us to start
at least 2.2' deep. Start at this depth or any depth
greater.
Press to accept target profile.
