15
S
ETUP
T
ILE
C
ONTROLLER
L
OOK
-A
HEAD
D
ISTANCE
This normally does not need to be adjusted on Gold Digger plows. On other plows, it should be set to the
horizontal distance (in inches) from the tile boot to the shear of the plow. A longer distance will smooth
out the plow and make it less reactive. A shorter distance will make the plow react quicker but may
cause oscillatory “hunting” about the target elevation.
A
NTENNA
O
FFSETS

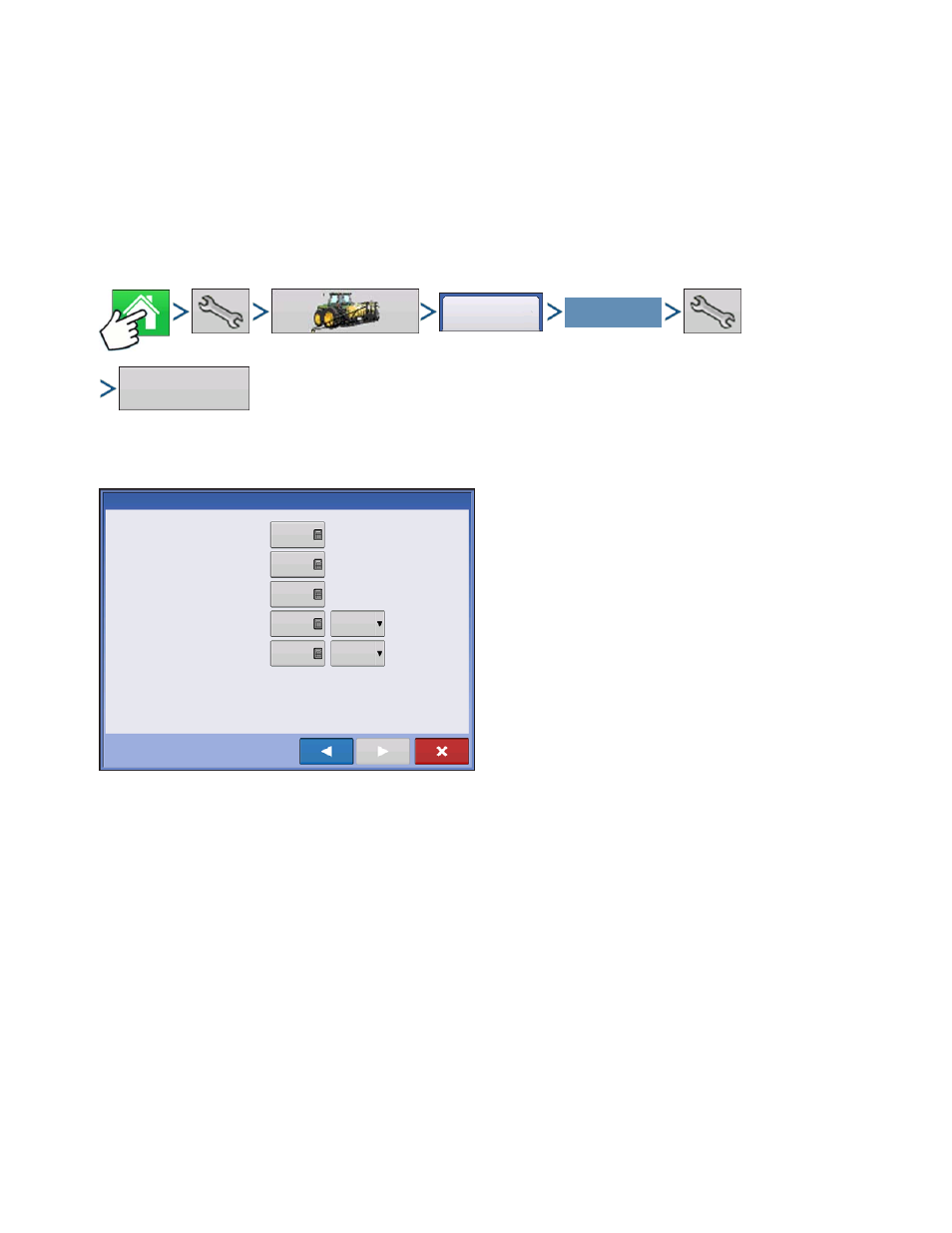

Press: Home button > Setup (wrench) button > Configuration (tractor) button > Configuration tab > Your
Specific Configuration > Setup (wrench) button > Offsets (Implement) button
Antenna to Plow Base: Distance affects the depth
because it affects how far the plow shear is below
the antenna as it is lowered.
AutoTile uses this distance to compute the tile trench
elevation from the GPS antenna's elevation.
Measure the vertical distance straight down from the
GPS antenna to the very bottom of the plow (bottom
of the skid plate).
Antenna to Tip (Horizontal): This is the distance
from the Antenna to the tip of the plow or cutting
edge. If you had a rope hanging straight down from
the antenna, it would be the horizontal measurement
from the tip to the rope. If the tip was 24 inches in
front of the antenna, you would enter 24 in front.
Antenna To Ground: This measurement tells AutoTile how high the GPS antenna is above the ground
when surveying a path. If you are using a three-point hitch plow you must always raise the plow to the
same height when surveying, otherwise AutoTile's ground profile will be wrong. This is the measurement
from the GPS antenna to the ground when the plow is completely lifted and plow boot is pitched all the
way up.
Configuration
Select Your Specific
Configuration
Offsets
Implement Wizard: GPS Antenna Offset
0 in
0 in
0 in Antenna to Plow Base
Antenna Location
from Hitch Point
Antenna Height from
Ground
Antenna to Tip
(Horizontal)
Antenna Location
from Centerline
Note: Antenna Height from Ground measurement must be
taken with the implement raised all the way up in transport
position.
0 in
0 in Left
Front
