10 Firmware Version 5.2
W
ATER
M
ANAGEMENT

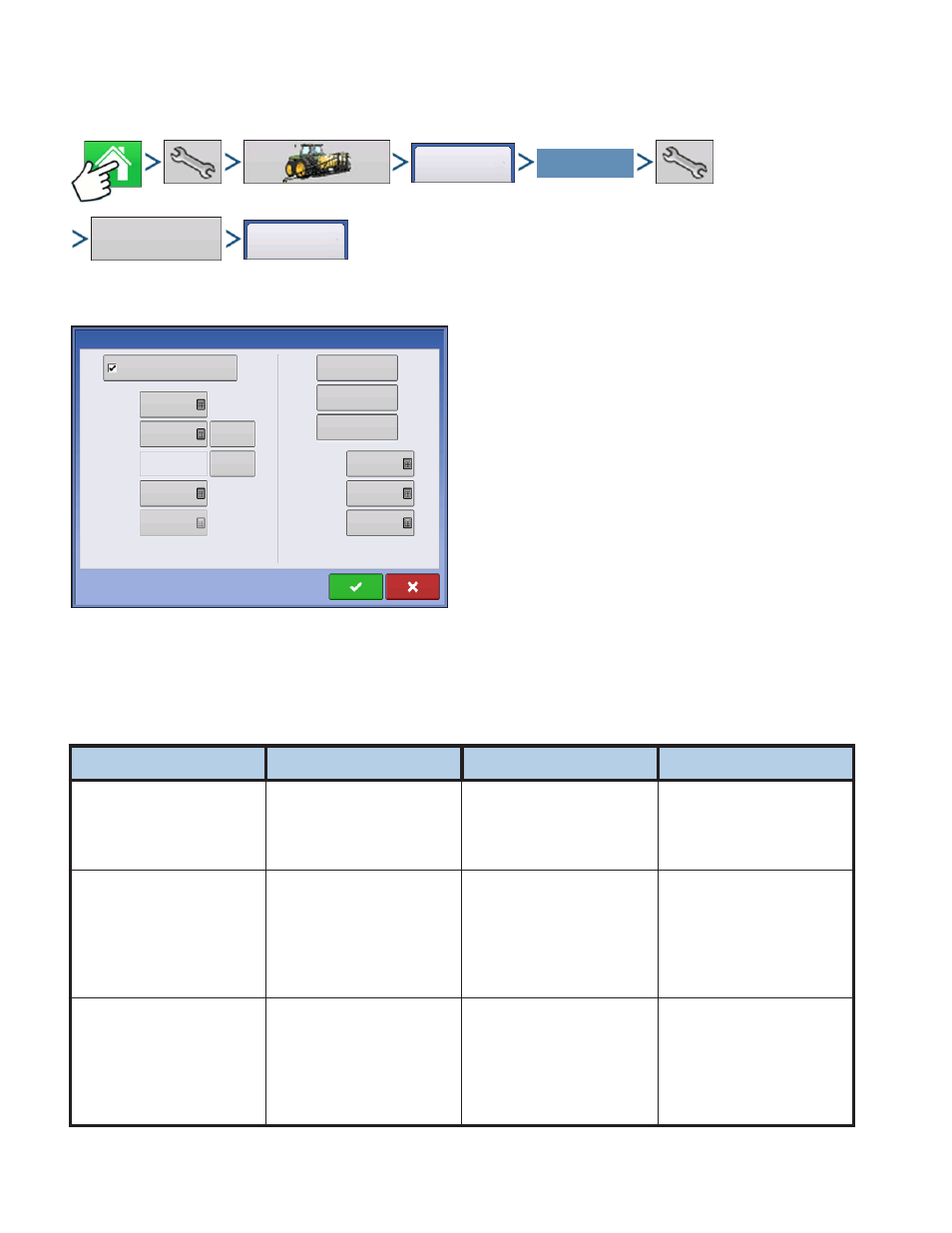

Press: Home button > Setup (wrench) button > Configuration (tractor) button > Configuration tab > Your
Specific Configuration > Setup (wrench) button > Controller Settings button > Control tab
Pitch Plow check box: check this box only if the
machine is a pitch plow (also called cantilever).
If this box is not checked, Pitch Gain, Pitch Zero,
Suggested Calibration, and Start Compensation
boxes will be grayed out and unavailable.
This setting effects the operation of Intellislope and it
is crucial that it is set correctly. When check box is
checked, it indicates that the machine being
controlled is a pitch plow and the elevation of its
cutting edge is determined by the pitch of the plow.
This must be un-checked if the machine is not a
pitch plow, such as a parallel linkage plow, trencher,
scraper or pan, where the elevation of the cutting
edge of the machine is directly effected by the
hydraulic cylinder displacement. In this case the GPS receiver must move with the cutting edge for
proper control.
The following table summarizes the interaction between the pitch plow setting and adjustments on the
Performance Setup screen
.
Adjustment Pitch Plow Checked Pitch Plow Un-checked Comments
Pitch Gain Yes No effect Pitch Gain only has effect
when the system is controlling
pitch, and thus only when
configured as a pitch plow.
Look Ahead Distance Yes No effect Look Ahead Distance only has
effect when the system is
using pitch to control
elevation, and thus only has
effect when configured as a
pitch plow.
GPS-Only Gain No effect Yes GPS-Only Gain only has effect
when the system is directly
controlling elevation in
systems where the hydraulic
cylinder directly controls
elevation (not a pitch plow).
Configuration
Select Your Specific
Configuration
Controller
Settings Control
Water Management
Pitch Zero
Pitch Gain
Pitch Plow
0
0
350
0 %
0
0
0
0 in
Suggested
Calibration
Start
Compensation
GPS-Only
Gain
Reset to
Default
Set as
Pitch Zero
Up Valve
Threshold
Down Valve
Threshold
Look-Ahead
Distance
Verify
Control
Calibrate
Roll
Calibrate
Pitch
