22 Firmware Version 5.2

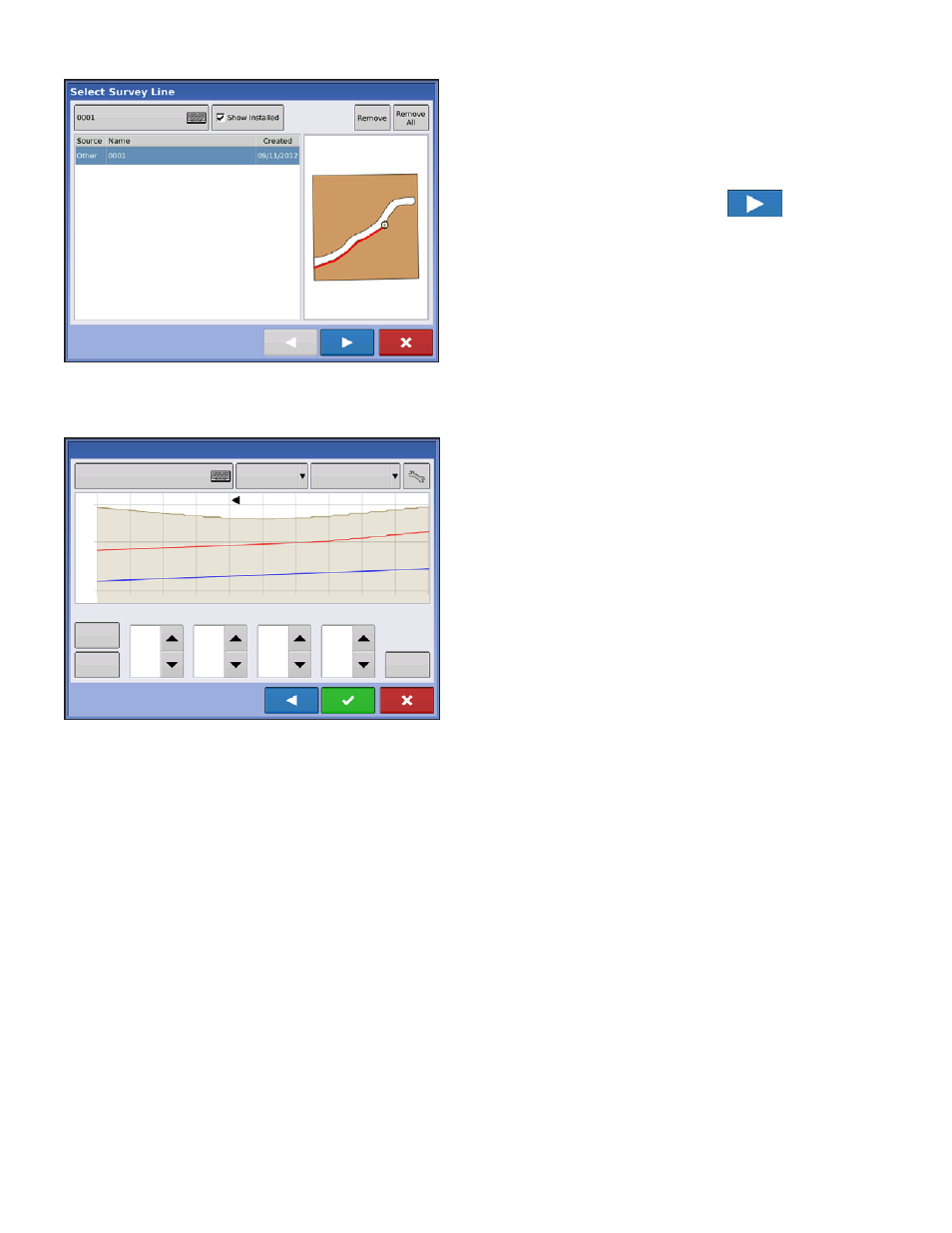

Selecting “Install” brings up the survey selection
screen. The selected survey will be drawn as a red
line on the over-head map shown on the right side of
the screen. If a survey has just been completed, it
will be selected by default.
Select the desired survey and press to
continue.
T
ARGET
P
ROFILE
D
ESIGN
Minimum Grade: This is used by AutoTile to create
target tile profiles. It specifies the minimum grade
you wish AutoTile to maintain. 0.1% grade is a
common minimum grade. Min Grade affects the
target profile that the control system “aims” at. It is
normal for some deviation about the target within a
channel about the target profile.
Minimum Depth: This specifies the shallowest
depth at which you want AutoTile to place tile, at any
point in the tile run. Keep in mind that this depth is to
the bottom of the trench. You might want to change
this distance if you change to a pipe with a larger or
smaller diameter.
Maximum Depth: This is used by AutoTile to know
how deep the plow can go. You can either use the maximum depth of the plow or use this to limit the
depth you wish the plow to run to lower the pull required if ground conditions are difficult.
Target Depth: This is the depth at which AutoTile schedules tile installation (as long as other constraints
permit). This is usually in the 30-42 inch range. You should adjust this if necessary to keep your tile
above impermeable clays. This depth is to the bottom of the trench.
S
WITCH
S
TART
B
UTTON
(Start at Top or Bottom of Run)
Target Profile Design
Maximum
Depth
Minimum
Grade
Minimum
Depth
Target
Depth
Save As
Defaults Switch
Outlet
Switch
Start
Select Type Select Product
Outlet
001
1005
1002
998
0 100 200 300 400 500 600 700 800 900 10
0.10 % 24 in 72 in 36 in
