14 Firmware Version 5.2
R
OLL
C
ALIBRATION
1. Position the vehicle and implement on a fairly
level surface.
2. Mark the location where the implement wheels are
contacting the ground if it is a pull-type implement. If
the implement is a lift mounted, mark the location of
the rear wheel of the vehicle.
3. Press the “Set Roll” button to take the first roll
sensor reading.
4. Turn the vehicle and implement around to face the opposite
direction and place the same wheels on the marks made on the
ground in step 2.
5. Press the “Set Roll” to take the second roll reading.
The Calibrated Roll for the implement should now be displayed.
Note: Press the Reset button at any time to start the calibration
procedure over.
P
ITCH
C
ALIBRATION
Pitch calibration number
determines sensor reading for
level installation. Plow status will
read “Uncalibrated” until Pitch
calibration is ran. Only after
having followed those
instructions will you need to
adjust this pitch zero number.
After this initial calibration run,
the Pitch Zero will be set
automatically. From then on, any
changes to the Pitch Zero need
to be made manually.
To run Pitch Calibration, Press
Pitch Calibration button and follow instructions given on the display.

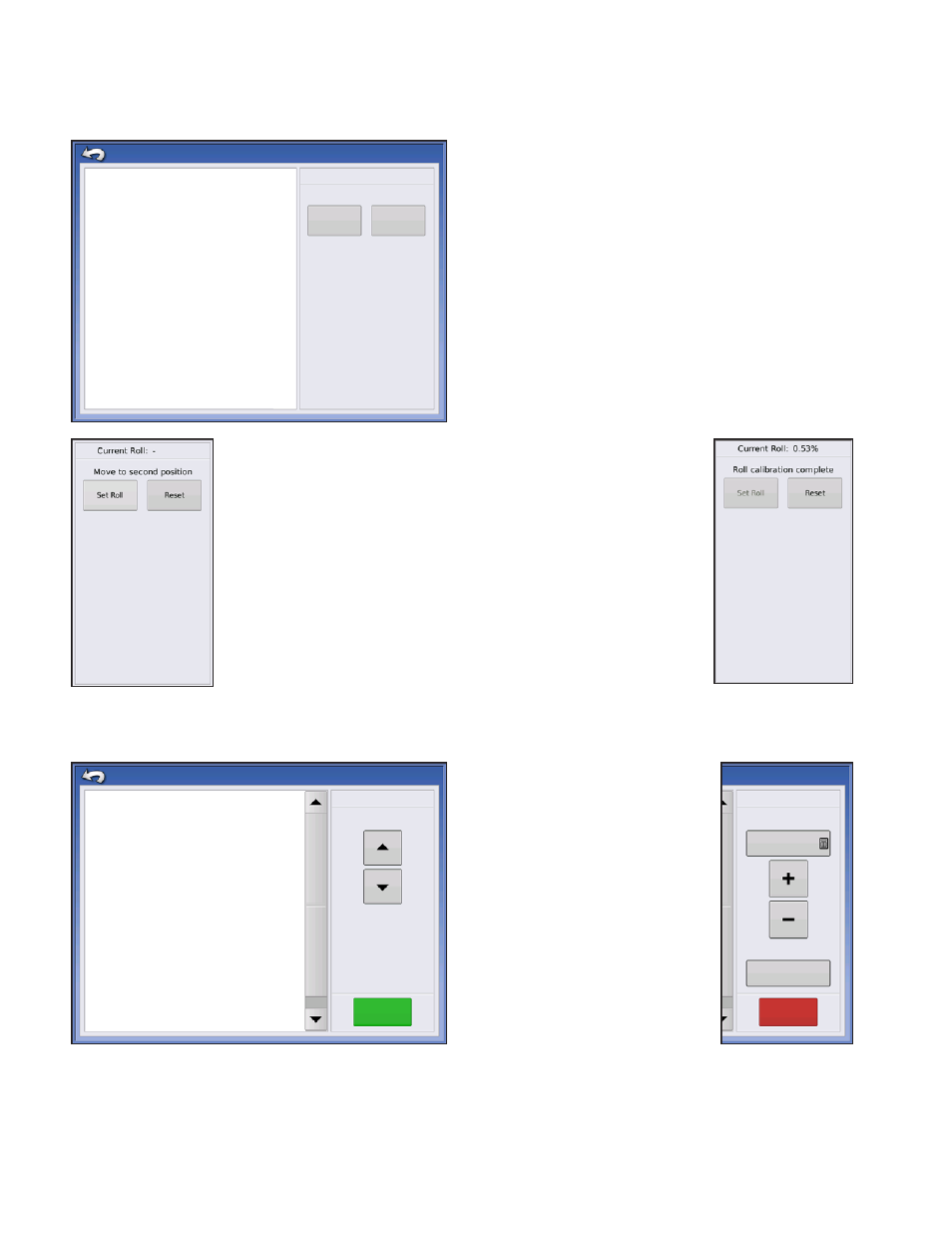

Roll Calibration
Instructions:
1. Position the vehicle and implement on a fairly level
surface.
2. Mark the location where the implement wheels are
contacting the ground if it is a pull-type implement. If
the implement is a lift mounted, mark the location of the
rear wheel of the vehicle.
3. Press the “Set Roll” button to take the first roll sensor
reading.
4. Turn the vehicle and implement around to face the
opposite direction and place the same wheels on the
marks made on the ground in step 2.
5. Press the “Set Roll” to take the second roll reading.
The Calibrated Roll for the implement should now be
displayed.
Note: Press the Reset button at any time to start the
calibration procedure over.
Move to first position
Set Roll Reset
Calibrated Roll: -
Pitch Calibration
Uncalibrated
Manual Control
Start
IMPORTANT! Verify plow control using the Control
Verification screen prior to calibrating pitch. For best
results, it is recommended to calibrate in a relatively
flat and open field without obstacles to maneuver.
1. Using the manual control buttons, pitch the plow
into the ground approximately 30-40 inches (1 meter)
deep.
2. Continue to pull forward and manually adjust the
pitch of the plow until the plow is running
approximately at the grade that matches the ground.
3. Press the Start button to begin the calibration
routine.
4. Adjust the Target Grade to match the grade of the
ground and proceed forward with the Plow in the
ground.
5. Adjust Target Grade or set Grade Breaks if
necessary to avoid running too shallow or too deep.
Note: Grade breaks are applied in the positive or
negative direction relative to the Target Grade setting
(For example: A positive Target Grade will provide
positive grade breaks.)
Calibrated
Grade Control
Target: 0.00 %
Grade Break:
+1 inch
Stop
