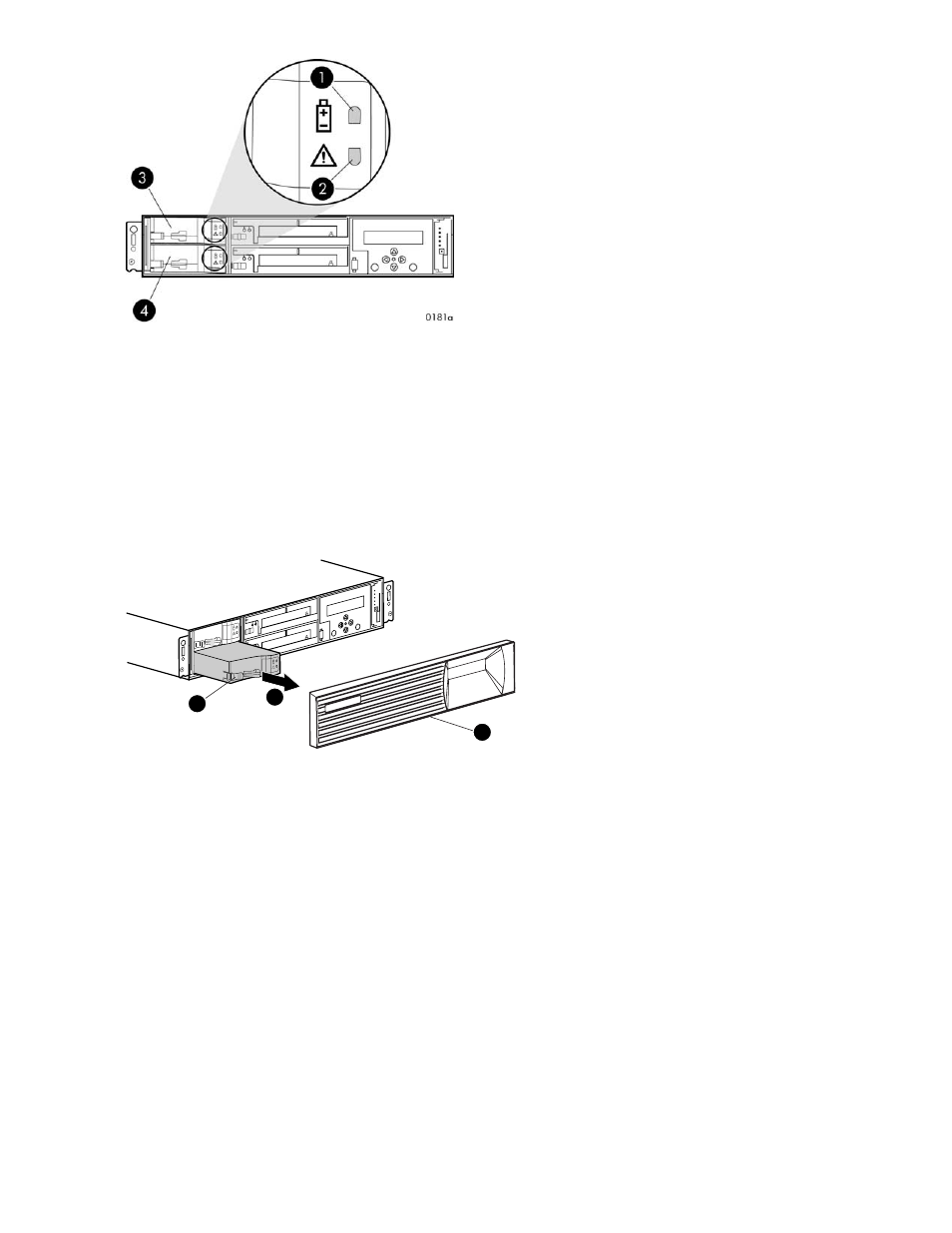

Figure 38 Battery status indicators
1. Status indicator 2. Fault indicator
3. Battery 0 4. Battery 1
Removing a battery
1. Remove the front panel (1, Removing a battery ) by grasping the panel at each end pulling it off the
enclosure.
2. While moving the battery mounting latch (2, Removing a battery ) to the right, pull the battery out of
the enclosure (3). Support the battery with both hands as it is removed.
3
1
2
0180a
Figure 39 Removing a battery
Installing a battery
• Position the battery as high in the slot as possible, then slide the battery into the enclosure (1,
Figure 40 ) until it is fully seated and the mounting latch engages (2).
