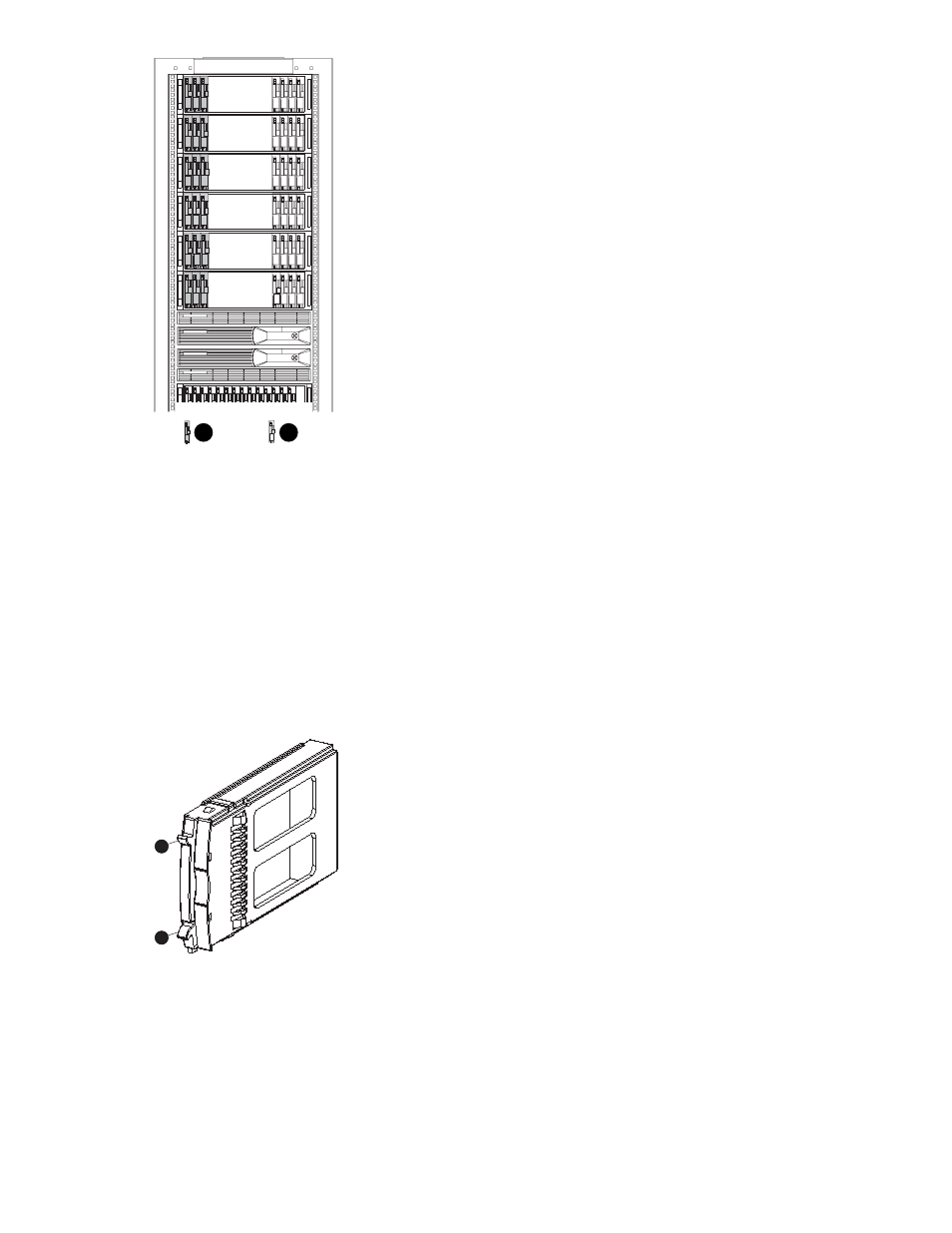

Figure 7 Sequential building of vertical disk groups

1. Disks installed in first group
2. Disks installed in second group

Adding a disk drive

This section describes the procedure for adding a Fibre Channel disk drive.

Removing the drive blank

1.

Grasp the drive blank by the two mounting tabs (see

Figure 8

).

2.

Lift up on the lower mounting tab and pull the blank out of the enclosure.

CXO7359B ˚

1

2

Figure 8 Removing the drive blank

1. Upper mounting tab

2. Lower mounting tab

Installing the disk drive

1.

Push in the ejector button on the disk drive and pull the release lever down to the full open position.

4000/6000/8000 Enterprise Virtual Array user guide
