CAUTION:
The AC power distribution within a rack ensures a balanced load to each PDU and reduces the possibility
of an overload condition. Changing the cabling to or from a PDM could cause an overload condition.
HP supports only the AC power distributions defined in this user guide.
0131a
1
2
3

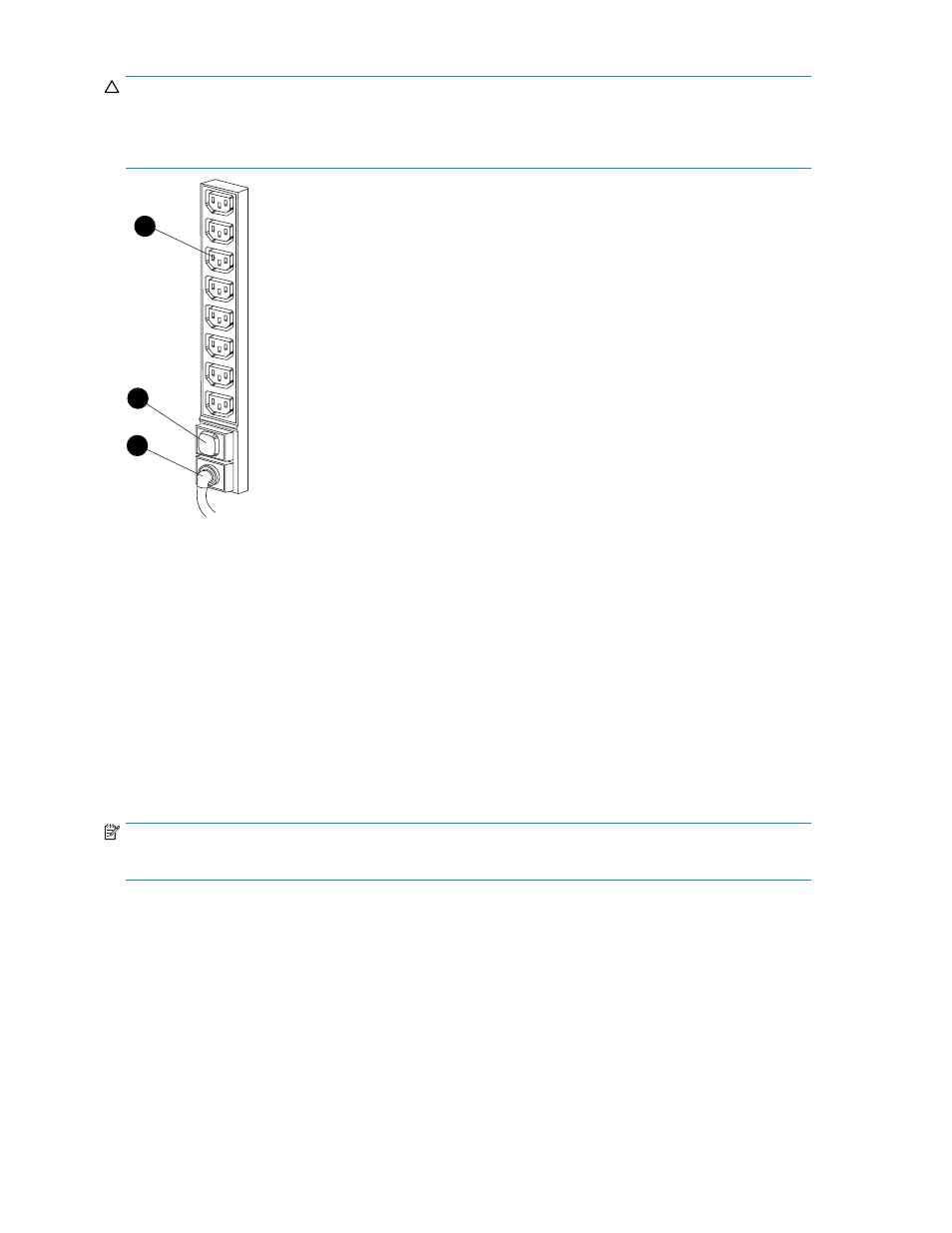

Figure 32 Rack PDM
1. Power receptacles 2. Thermal circuit breakers
3. AC power connector
Rack AC power distribution
The power distribution in an Enterprise Virtual Array rack is the same for all variants. The site AC input
voltage is routed to the dual PDU assembly mounted in the rack lower rear. Each PDU distributes AC to a
maximum of four PDMs mounted on the left and right vertical rails (see Figure 33 ).
• PDMs 1 through 3 connect to receptacles A through D on PDU 1. Grey power cords connect
these PDMs to the number 1 drive enclosure power supplies and to the upper controller enclosure.
• PDMs 4 through 6 connect to receptacles A through D on PDU 2. Black power cords connect
these PDMs to the number 2 drive enclosure power supplies and to the lower controller enclosure.
NOTE:
The locations of the PDUs and the PDMs are the same in all racks.
