HP Surestore 64 Director Switch - Manual (Page 153)

Configure Threshold Alerts 137
Config
uring the
Di
re
ctor

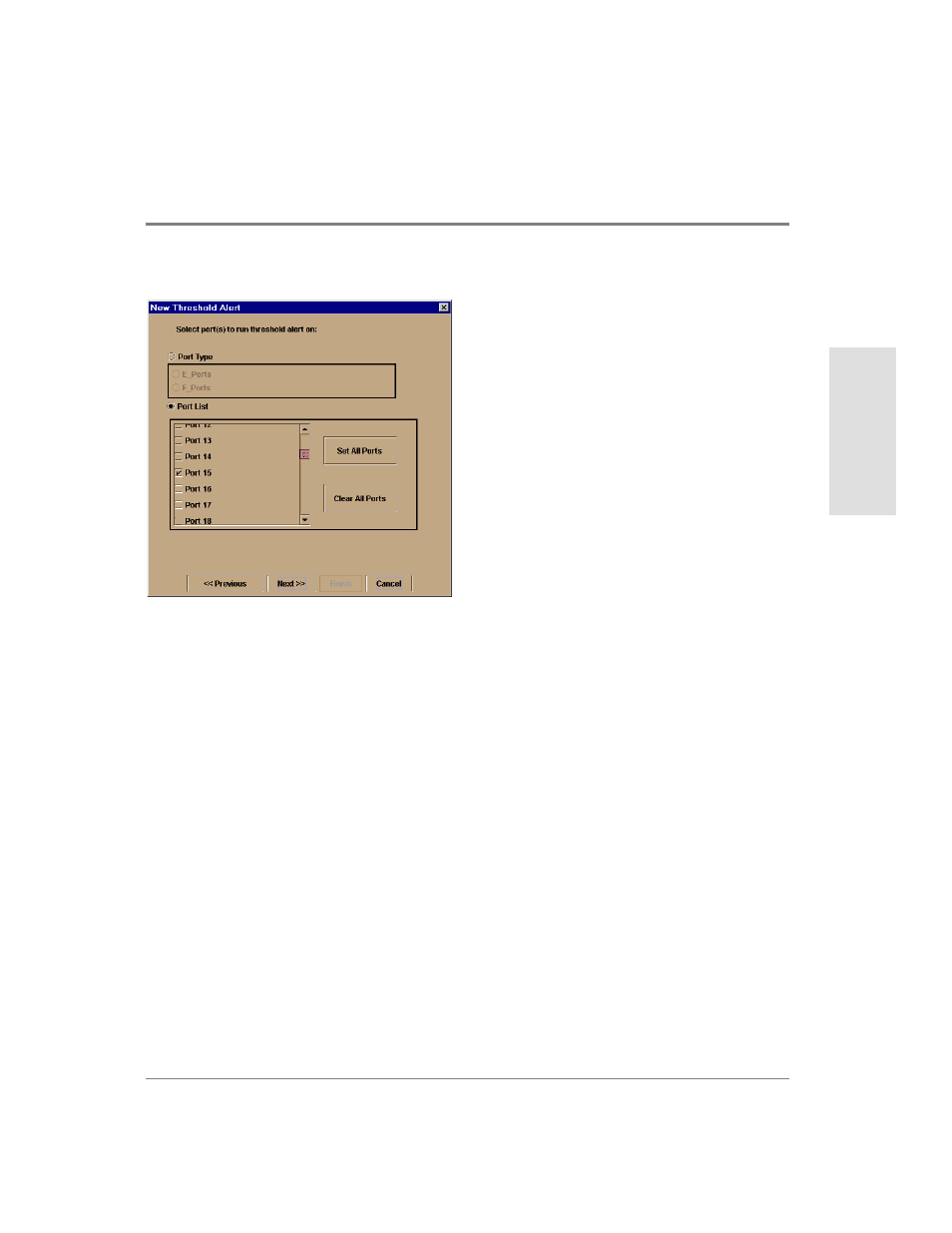

Figure 53 New Threshold Alerts Dialog Box - Third Screen
10. Either select Port Type or Port List.
– If you select Port Type, selecting either E_Ports or F_Ports will cause this alert to
generate for all ports configured as E_Ports or F_Ports respectively.
– If you select Port List, you can select individual ports by clicking the check box by
each port number or set all ports. Selecting Set All Ports places a check mark by each
port number. Selecting Clear All Ports will clear the check marks by each port
number.
1. Click Next.
A final screen appears to provide a summary of your alert configuration. To make any
changes, backwards and forwards through the configuration screens by selecting the
Previous and Next buttons.
