Load a roll onto the spindle
Single-roll printing
The spindle has a pneumatic connector at one end and a gear at the other.
1. Check that the gear is on the correct side (which depends on the intended winding direction).
2. Insert the spindle into the roll.
TIP: The spindle is quite heavy in order to ensure stiffness and so avoid skew and wrinkles, so two
people are recommended for this operation.

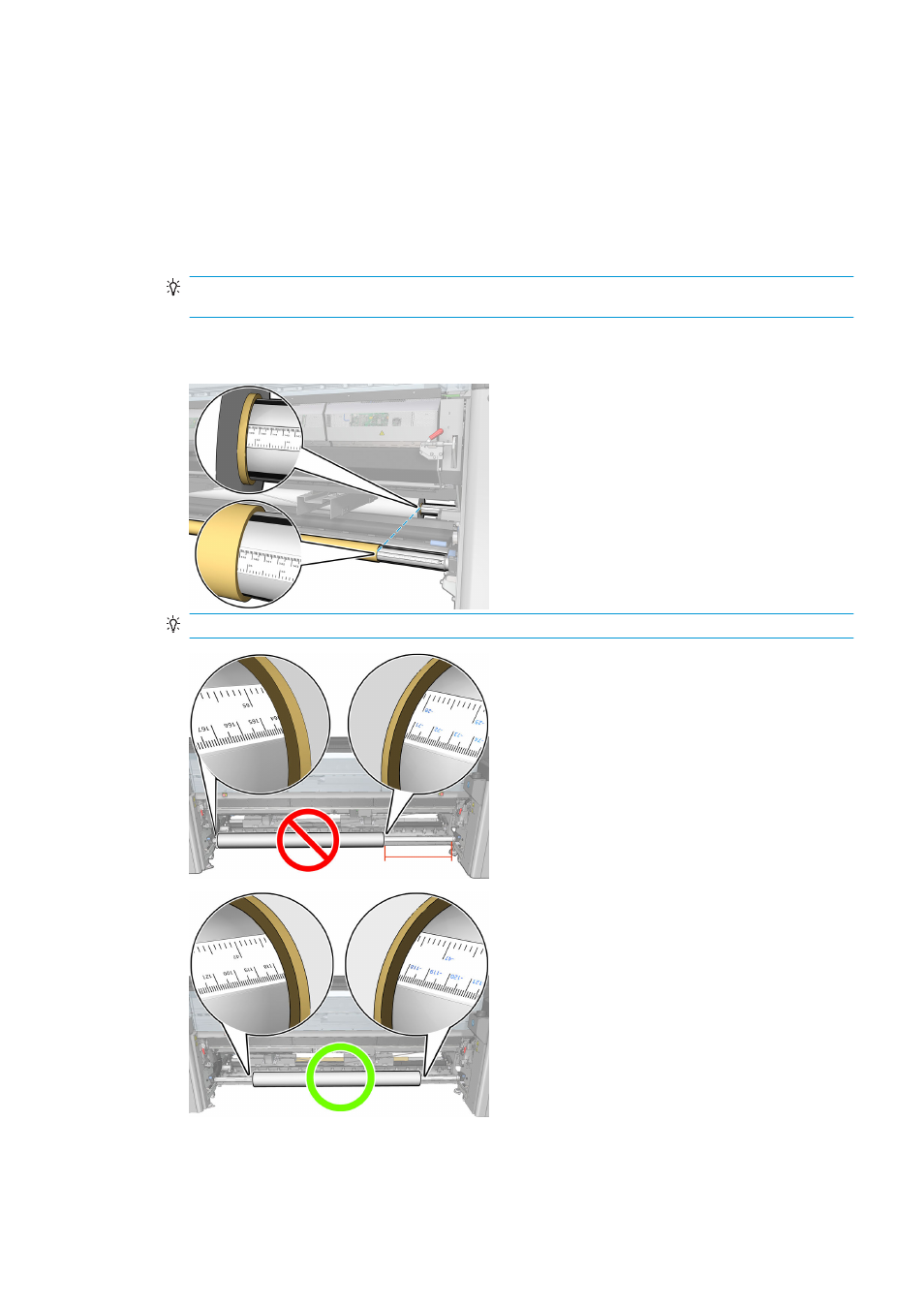

3. Note the position of the end of the roll on the scale marked on both sides from the center of the spindle.
The input and output rolls should be positioned identically on their respective spindles.
TIP: The rolls should be centered to reduce the risk of skew, wrinkles, and telescoping.
4. Connect the air gun to the pneumatic connector on the spindle, and inflate the spindle so that it cannot
move inside the roll.
