HP Latex 3000 Printer User Manual
Page 230
3.

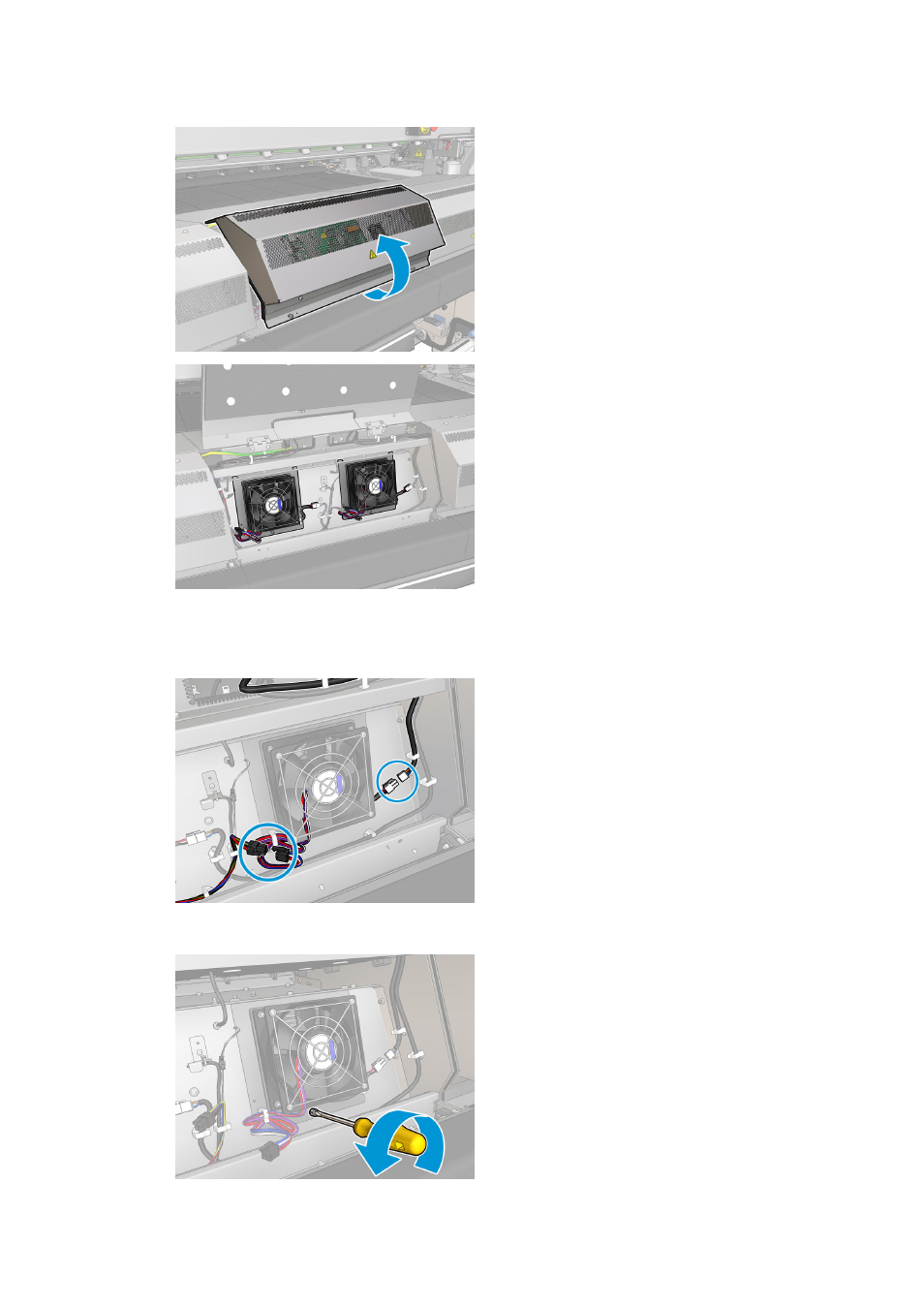

Raise the metal sheet in order to reach the interior of the module.
4.
Disconnect the two cables shown in the picture. You have to press the retention clip on each of the two
connectors, and gently pull the cable. The black one is for the DC fans supply and the white one is for AC
power to the curing heaters.
5.
Use a flat screwdriver to remove the screws of the fan-resistor module.
224 Chapter 8 Hardware maintenance
ENWW
