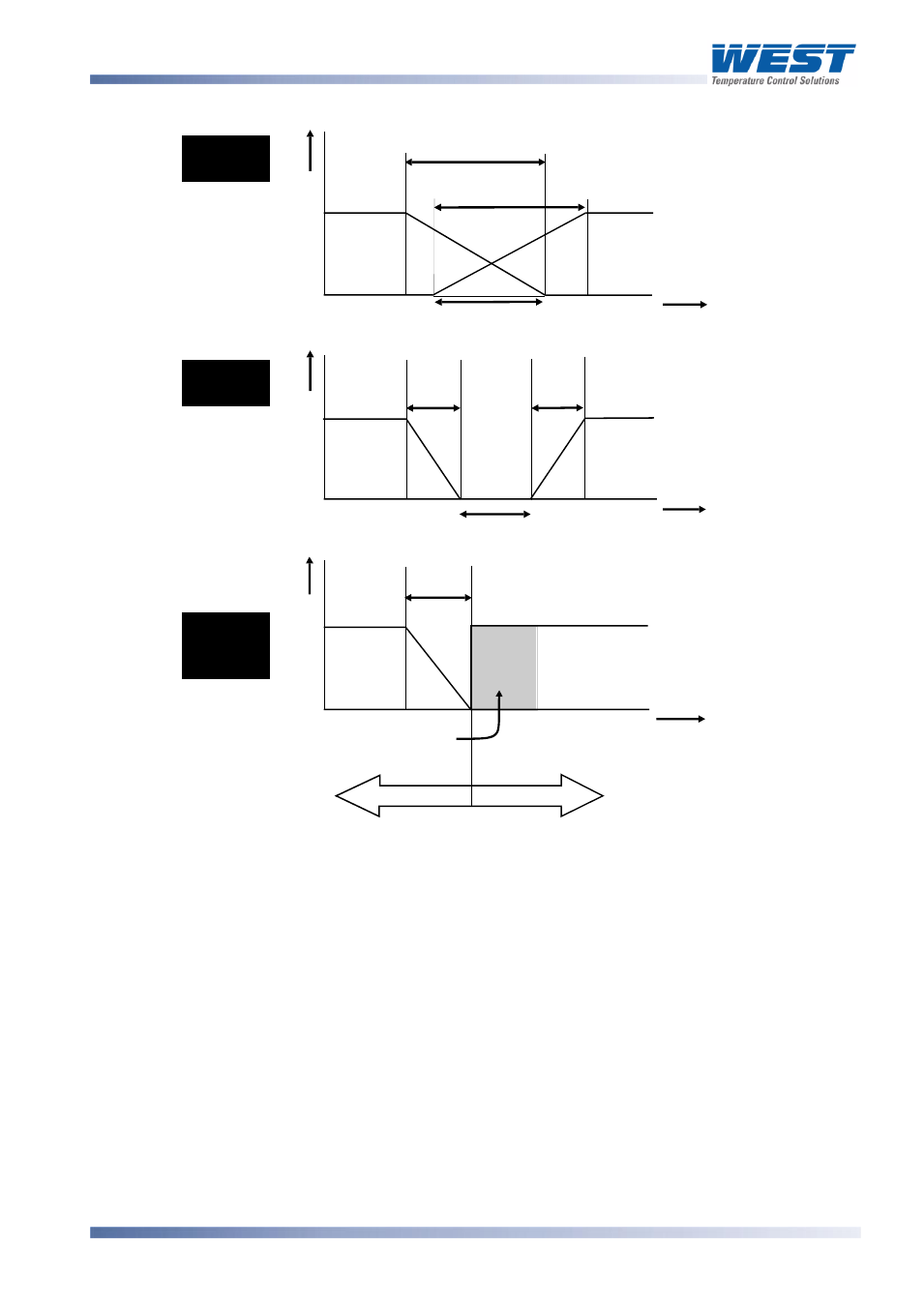

Figure 43. Overlap/Deadband
PI Control Type: Controller Definition
Proportional and Integral (PI) Control is used to control Modulating Valves. It is similar to PID
Control, but without Derivative (Rate) action that causes excessive valve movement.
Also refer to Modulating Valve, PID Control, Rate, Tuning and Valve Motor Drive Control.
PID Control Type: Controller Definition
Proportional Integral and Derivative control maintains accurate and stable levels in a process
(e.g. temperature control). It avoids the oscillation characteristic of On-Off control by
continuously adjusting the output to keep the process variable stable at the desired setpoint.
Also refer to Control Action, Control Type, Automatic Reset, Controller, Manual Mode, On-Off
Control, PI Control, Primary Proportional Band, Process Variable, Rate, Secondary
Proportional Band, Setpoint, Tuning and Valve Motor Drive Control.
