Alcatel-Lucent 8950 AAA - Manual (Page 56)

............................................................................................................................................................................................................................................................
Installing the PolicyAssistant and the Policy Flow Editor Server Management Tool Command Set
3-16 365-360-001 R6.0
Issue 1, December 2008
............................................................................................................................................................................................................................................................
Installing PolicyFlow Editor for a configuration set
To enable the PolicyFlow Editor for a configuration set, perform the following steps:
1. In the PolicyFlow Installation page, as shown in Figure 3-10 , select Install a
Configuration Set.
2. The drop-down list box is activated and this shows a list of
pre-configured configuration sets.
3. Select one of the configuration set from the list and click the Install Policy Flow
button. A warning message, as shown Figure 3-15 appears.

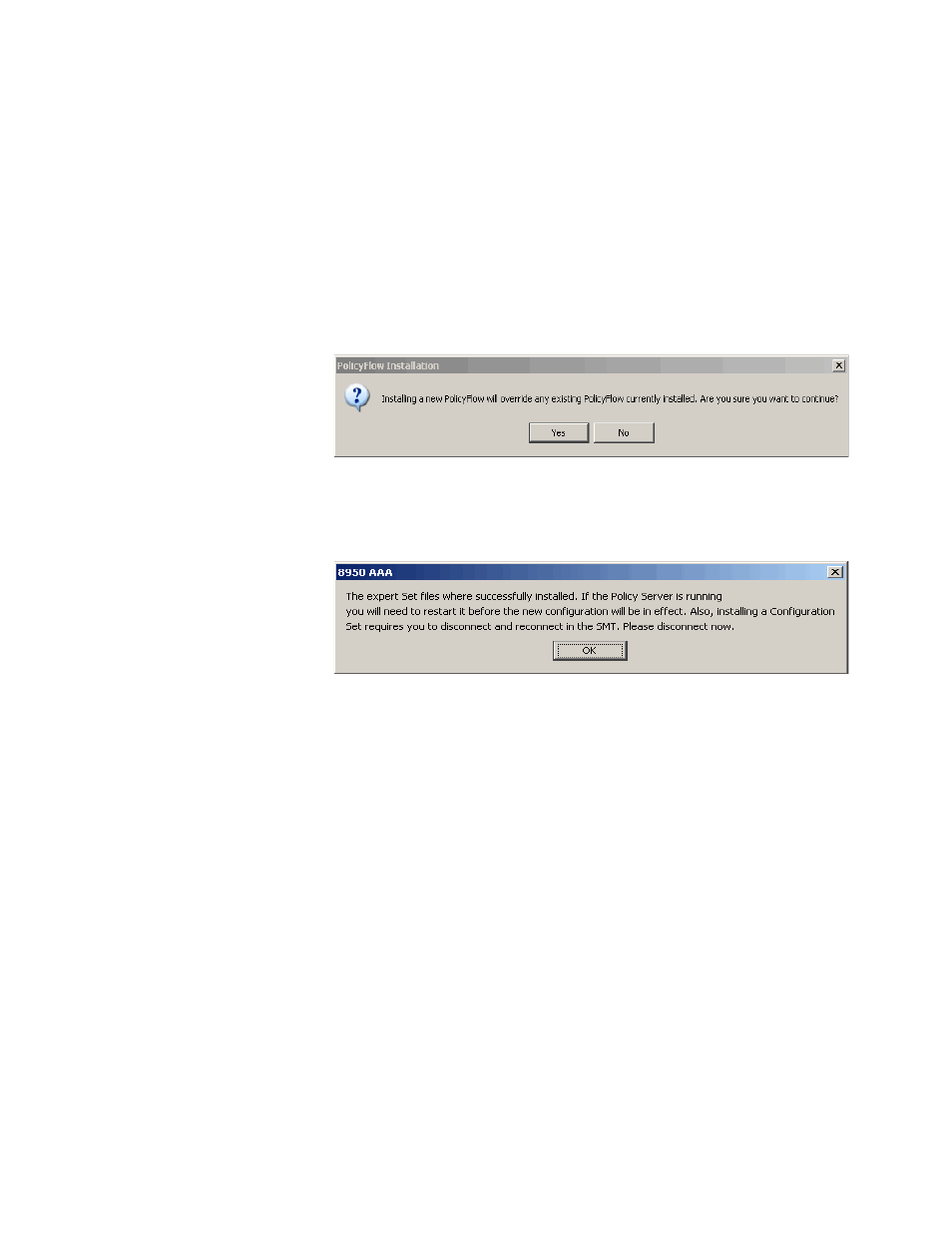

Figure 3-15 SMT–Policy Flow–already existing warning message
4. Click Yes to continue. It will take a few seconds and when the installation is complete,
the following message appears.
Figure 3-16 SMT-Policy Flow Installation success message
5. Click OK and close the SMT GUI and restart the application.
6. Once you restart, you will see that instead of the Policy Assistant, you will see the
entry Policy Flow Editor in the Navigation pane under the Configuration Tools
section.
Important! If you click on the Policy Flow Editor in the Navigation pane, the SMT
will display the configuration set that was selected in step 2.
........................................................................................................................................................
E N D O F S T E P S
