General Info Using LiveAdministrator
............................................................................................................................................................................................................................................................
365-360-001R6.0
Issue 1, December 2008
18-3
............................................................................................................................................................................................................................................................

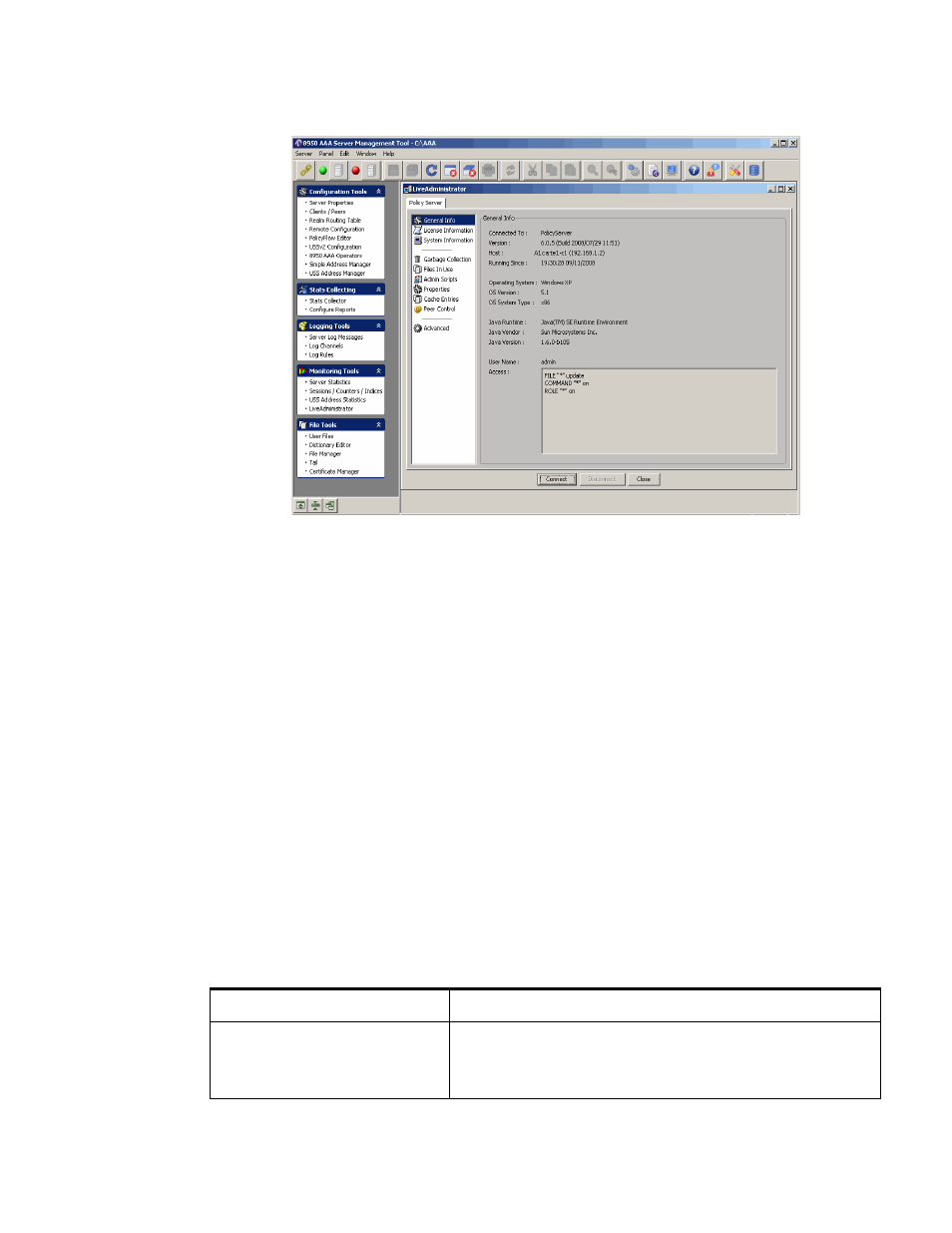

Figure 18-2 8950 AAA LiveAdministrator Panel
This panel contains a list of administrative options (on the left-hand side) and a work area
on the right-hand side. Select an option name to display the corresponding work area. The
appropriate work area appears on the right side. There are three buttons in the bottom of
the panel. Click the Close button to close the LiveAdministrator panel. Click the Connect
button to connect to the Policy server, Configuration server, or to any other port. Click the
Disconnect button to disconnect from the server(s) or port.
General Info
About General Information
Select General Info option to display the General Info work area. This is the default
option that is displayed when you open Live Administrator panel and is displayed as
shown in
Figure 18-2 .
This screen displays read-only information about the 8950 AAA server. Some of the fields
are as described in
Table 18-1 .
Table 18-1 Live Administrator–General Info properties
Field Name Description
Connected To Displays the server that the 8950 AAA is currently
connected to. Type, version, and legal information regarding
the server.
