Page 17: Operating options, Overview of operation options, 6operating options, T82 operating options 17
T82
Operating options
17
6
Operating options
6.1
Overview of operation options
1
2
4
5
7
6
3
ON
OFF
1
2
4
8
16
32
64
HW
SW
ADDR
SIM
WRITE LOCK
DISPL. 180°
8
A0014460
å
8

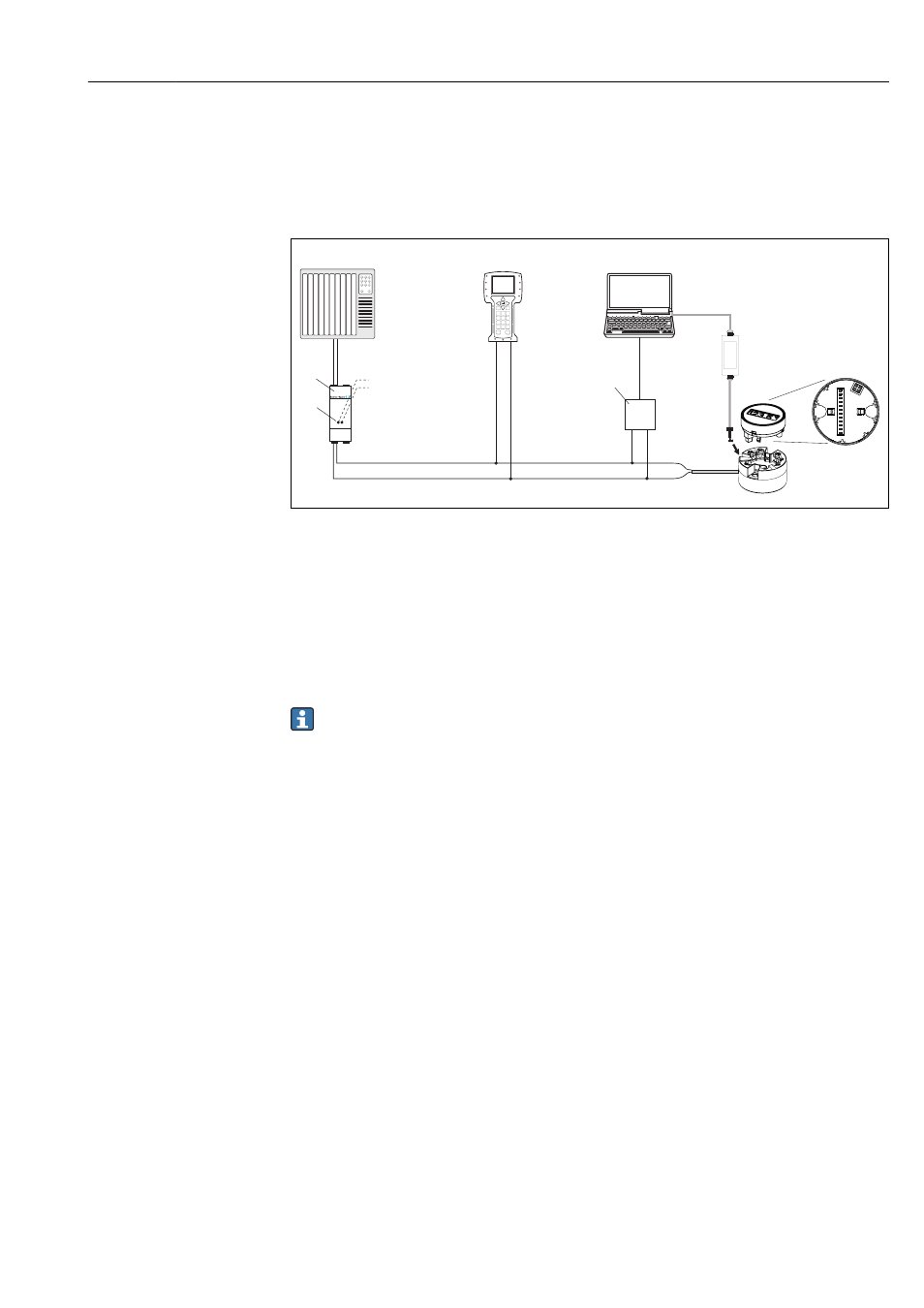

Operating options of the head transmitter
1
PLC (programmable logic controller)
2
Transmitter power supply unit (with communication resistor)
3
Connection for HART
®
modems
4
Field Communicator 375, 475
5
Computer with operating tool (e.g. FieldCare, AMS Device Manager, SIMATIC PDM)
6
HART
®
modem, e. g. FXA19x, RS232- or USB-connection (E+H)
7
Interface adapter FXA291 (E+H) for connecting to the CDI (Common Data Interface) interface
8
Local operation via DIP switches on the rear of the optional display
Display and operating elements are only available locally if the head transmitter was ordered
with a display unit!
