GDS-800 Series Digital Storage Oscilloscope Operation Manual
67
ERASE: Press the pushbutton to erase all waveform data from the graticule area,
clears waveform of roll mode and accumulate mode. If the oscilloscope is stopped,
the display remains empty of waveform data until the trigger circuit is rearmed and
oscilloscope is triggered. Then, the new data is displayed and measurements are
recalculated.
MENU ON/OFF: Select traditional ten division waveform display area with side menu
or a large twelve division waveform display without side menu.

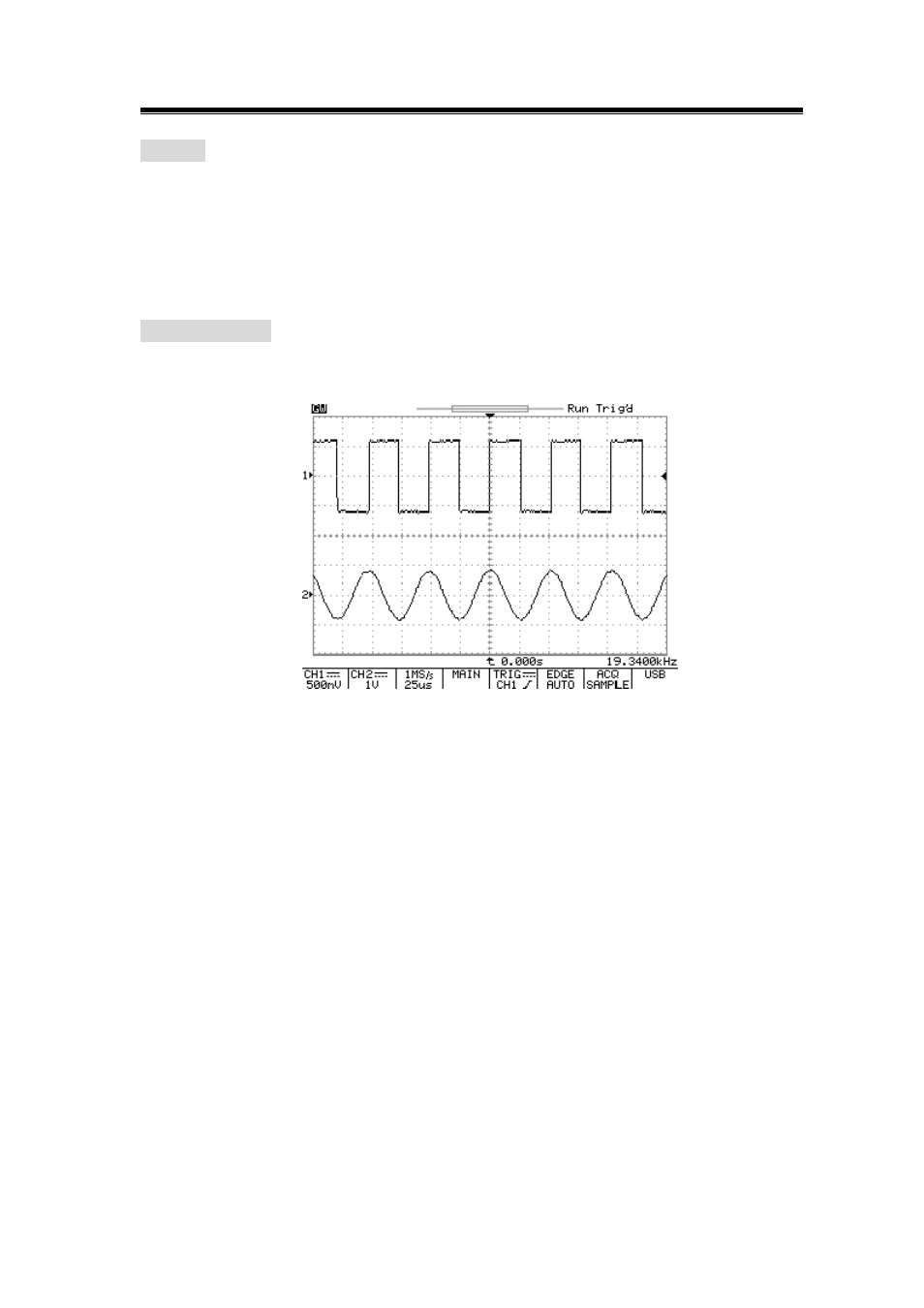

Figure 5-43: A large twelve division waveform display without side menu.
