GDS-800 Series Digital Storage Oscilloscope Operation Manual

55

2. Save all settings of channel one to memory location one (M 01). (a). Press

SAVE/RECALL button and F3 softkey to select memory location; select memory

location one (M 01) by rotating the VARIABLE knob. (b). Press F4 softkey to save

the channel one settings.

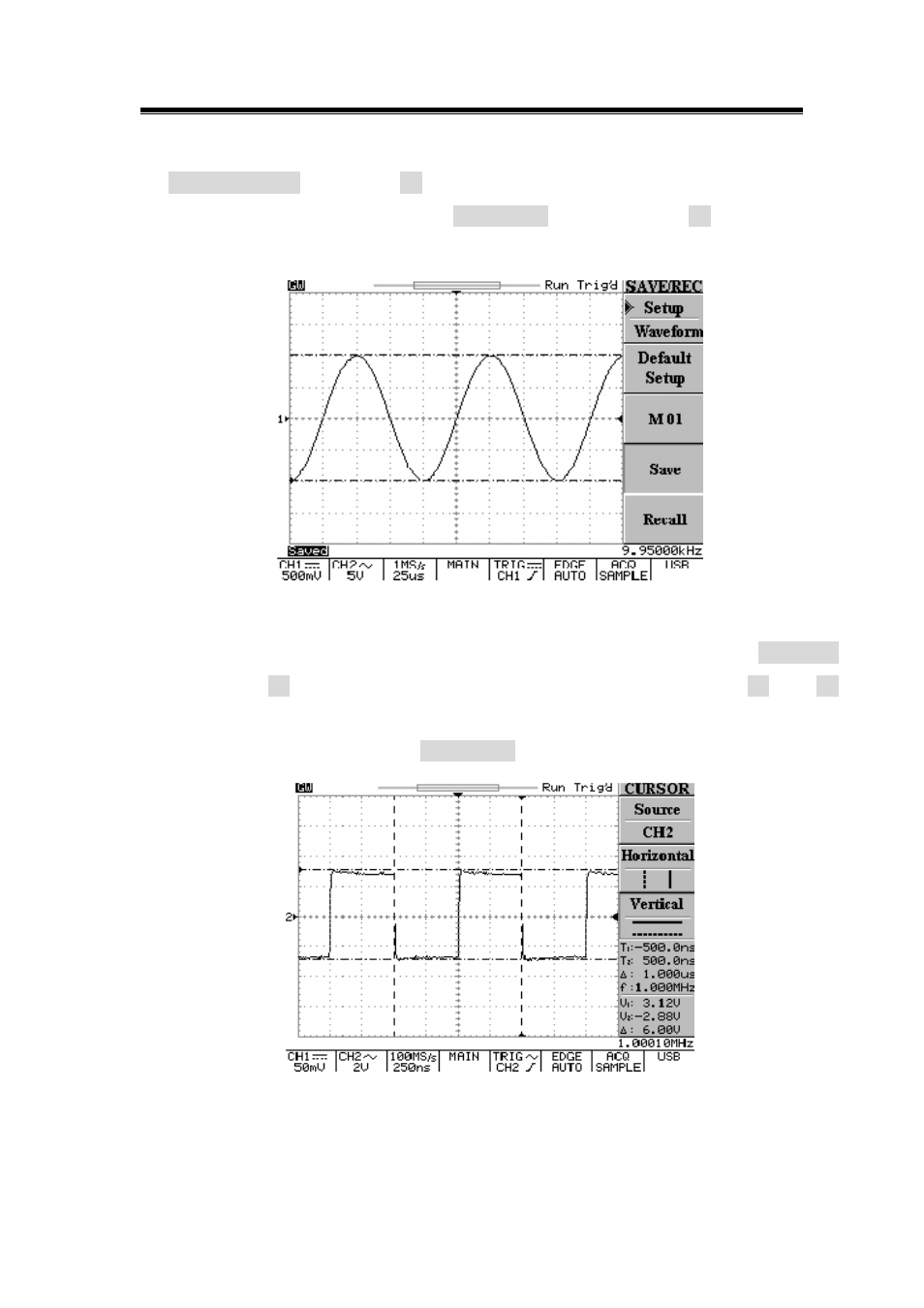

Figure 5-28: Save channel one settings to memory location one (M 01)

3. The input for channel two is a 6Vpp, 1MHz square wave; (a). Press CURSOR

button and F1 softkey to select channel tow as source; (b). Press F2 and F3

softkey to enable horizontal and vertical cursors; (c). Adjusting the two cursors to

proper position by rotating the VARIABLE knob.

Figure 5-29: Adjusting the horizontal and vertical position for channel two inputs
