GDS-800 Series Digital Storage Oscilloscope Operation Manual
34

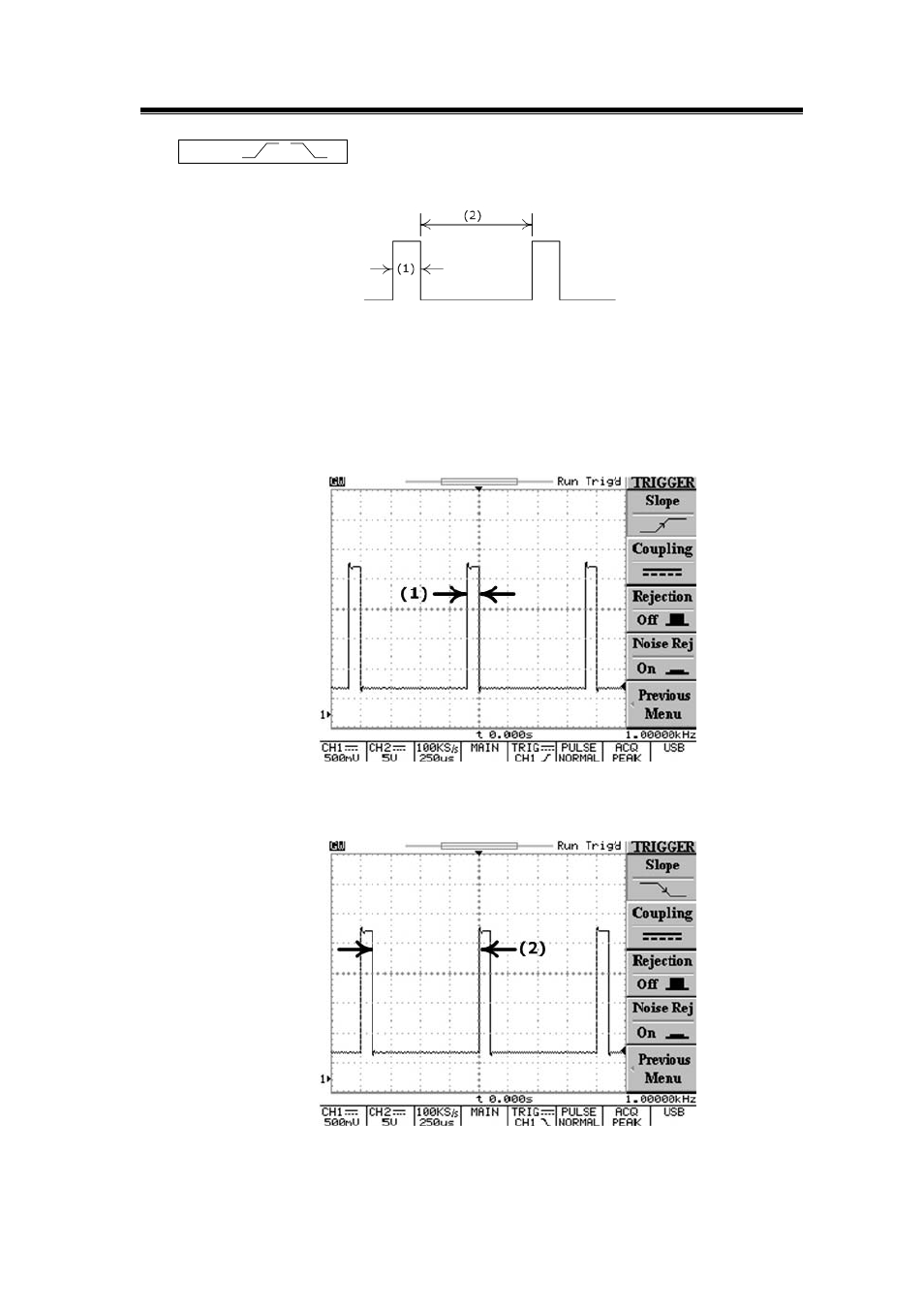

z Slope : Select positive or negative polarity for the pulse width
triggering.
(1): When positive polarity selected, the trigger will take place on the high to low
transition of the pulse if the compare condition is match. See figure 5-16.
(2): When negative polarity selected, the trigger will take place on the low to high
transition of the pulse if the compare condition is match. See figure 5-17
Figure 5-16: Pulse width trigger with positive polarity selected
Figure 5-17: Pulse width trigger with negative polarity selected
