8. The steps of program condition are completed now. And we need (a). Press F5
softkey to save all steps on system. (b). Press F1 softkey to “Program Play” menu;
(c.) Press F2 softkey to select running cycle for program and rotate the
VARIABLE knob to select the operation repeated cycle. We select 5 times here;
(d). Press F3 softkey and rotate the VARIABLE knob to select to select the
starting step. The step one is selected as starting step here; (e). Press F3 softkey
again and rotate the VARIABLE knob to select to select the last step for entire
program. The step two is selected as the last step here. (f). Press F3 softkey
again to complete the settings. A “the end” marker will be displayed on the
place of step two.

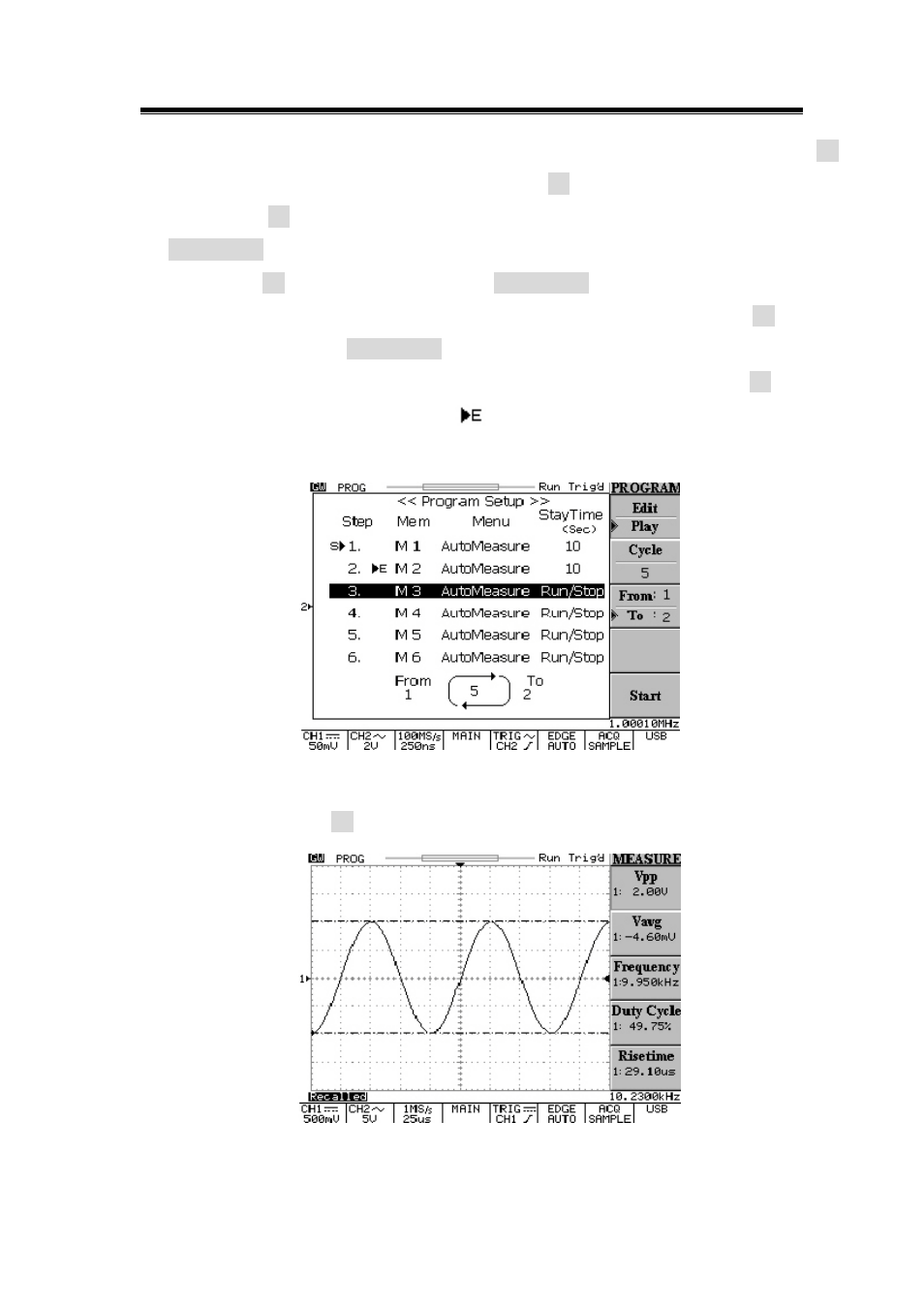

Figure 5-34: Editing the playing time condition
9. Now, we can press F5 softkey to start the program.
Figure 5-35: step one is continual running for 10 seconds on program mode
