GDS-800 Series Digital Storage Oscilloscope Operation Manual
65
z
Save: After Trace RefA/RefB selected, press F4 softkey to save the waveform
at present. Waveform position and scale factors are saved with each waveform.
z
Trace On/Off: Disable the LCD display of reference 1 or reference 2 saved
waveform.

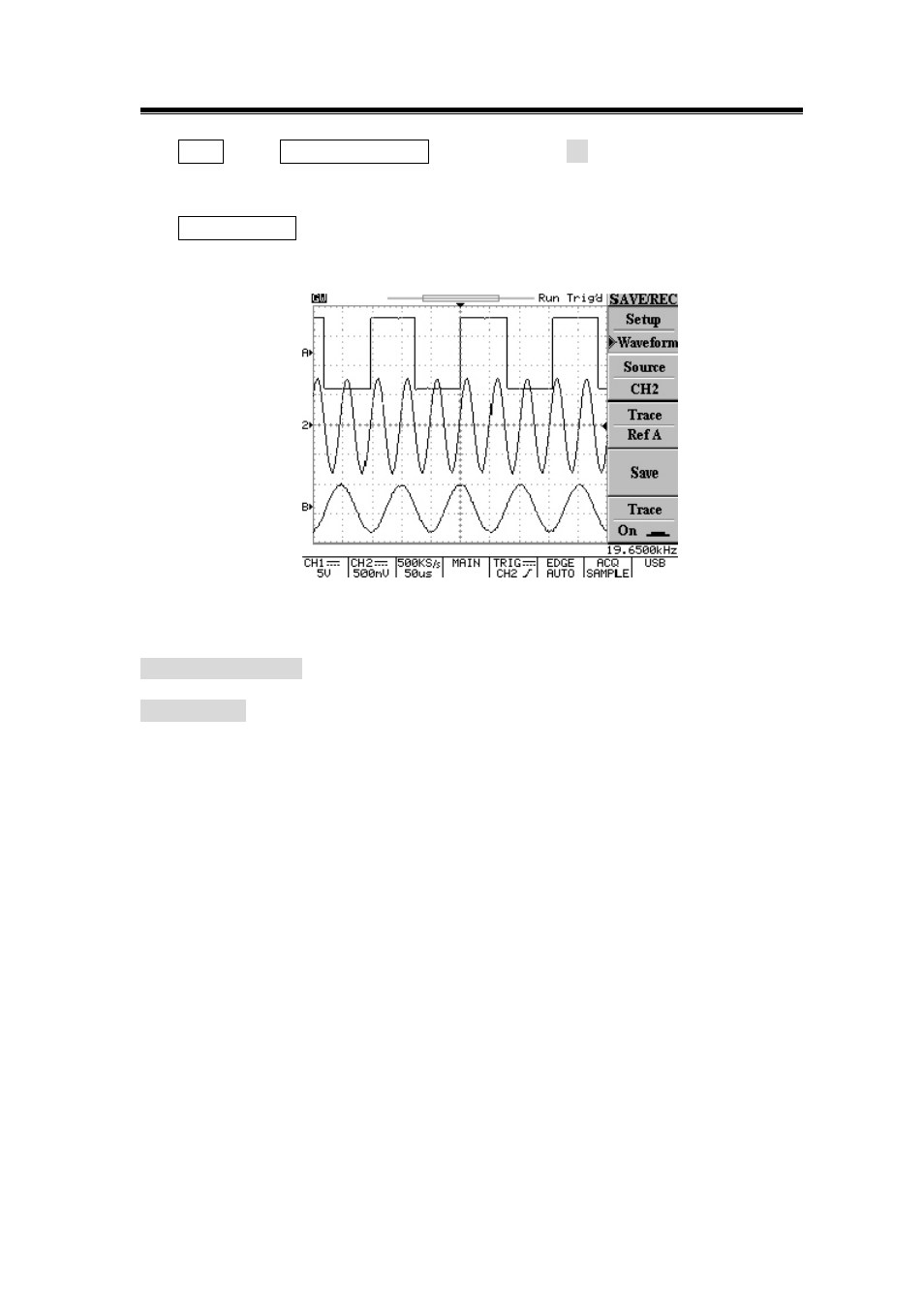

Figure 5-41: Both reference A and reference B are displayed on the waveform area
AUTO TEST/STOP: Quit the replaying of Program Mode.
HAEDCOPY: Print a hardcopy of the display if a printer is connected and properly
configured.
