GDS-800 Series Digital Storage Oscilloscope Operation Manual

57

6. (a). Press F2 softkey and rotate the VARIABLE knob to select “step 1”; (b).Press

F3 softkey to select “Item Memory” and rotate the VARIABLE knob to select

memory location one (M1) ; (c). Press F3 softkey again to select “Item Menu” and

rotate the VARIABLE knob to select AutoMeasure menu; (d). Press F3 softkey

again to select “Item Time” and rotate the VARIABLE knob to select 10 seconds

operation interval for step one.

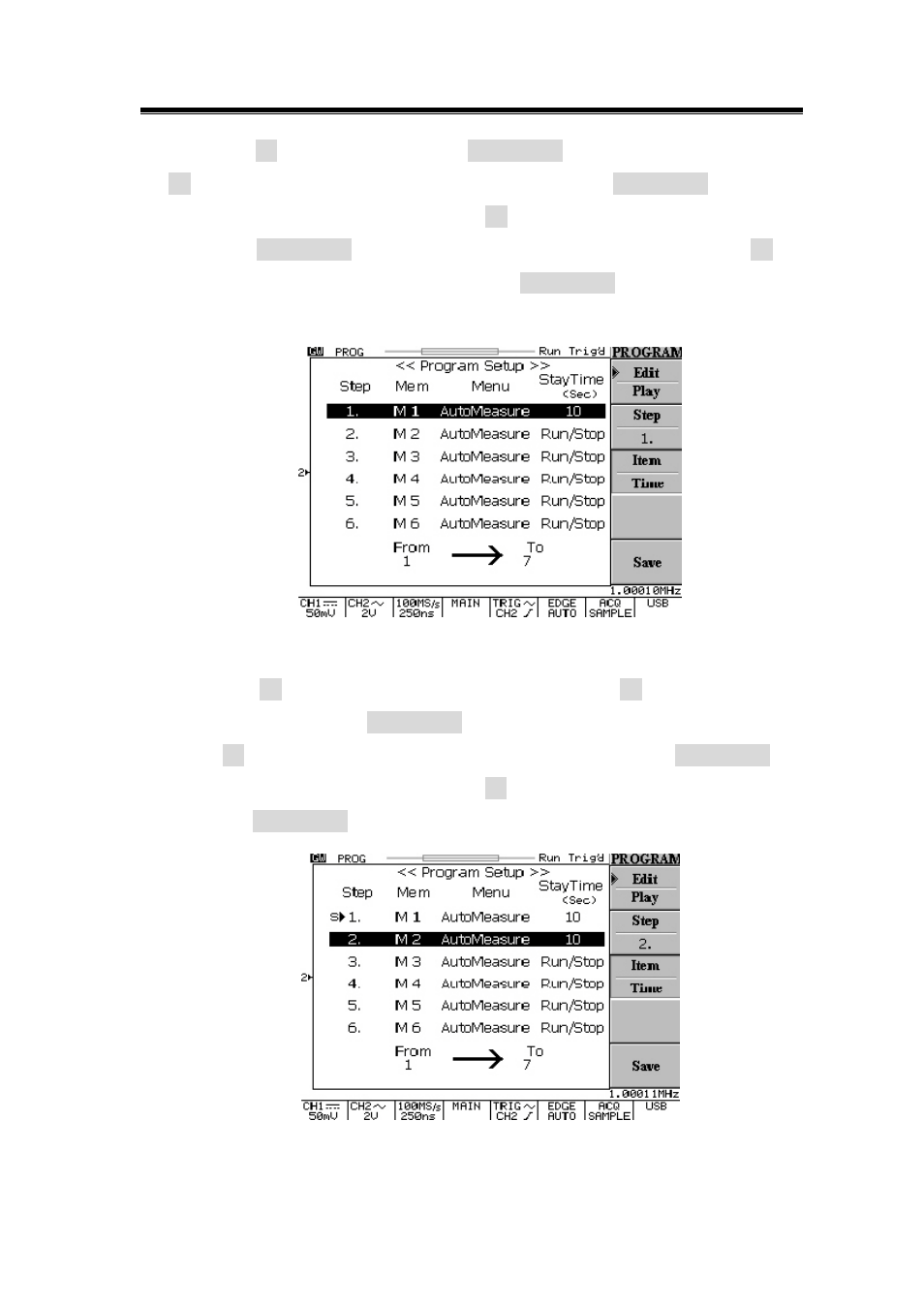

Figure 5-32: Editing the program condition of step one

7. (a). Press F2 softkey to skip into “step 2”; (b).Press F3 softkey to select “Item

Memory” and rotate the VARIABLE knob to select memory location two (M2); (c).

Press F3 softkey again to select “Item Menu” and rotate the VARIABLE knob to

select AutoMeasure menu; (d). Press F3 softkey again to select “Item Time” and

rotate the VARIABLE knob to select 10 seconds operation interval for step two.

Figure 5-33: Editing the program condition of step two
