GDS-800 Series Digital Storage Oscilloscope Operation Manual
50
z No Go When / : Select the judgment condition of violation for
“Go-No Go” function.
z No Go When : If the subject signal is not violating the templates,
the system will judge such condition as “No Go” situation by selecting this
function.
z No Go When : If the subject signal is violating the templates, the
system will judge such condition as “No Go” situation by selecting this function.
z More: Press F5 softkey to other utilities.
CAL. OUTPUT: The adjustable signal output provides a range for a signal of
probe compensation which can be adjusted from 1kHz to 100kHz, 1kHz per step;
and duty cycle is adjusted from 5% to 95%, 5% per step. This function can
satisfy user with the probe compensation more easily and accurately. NOTE:
This function is available for GDS-806S/C and GDS-810S/C only

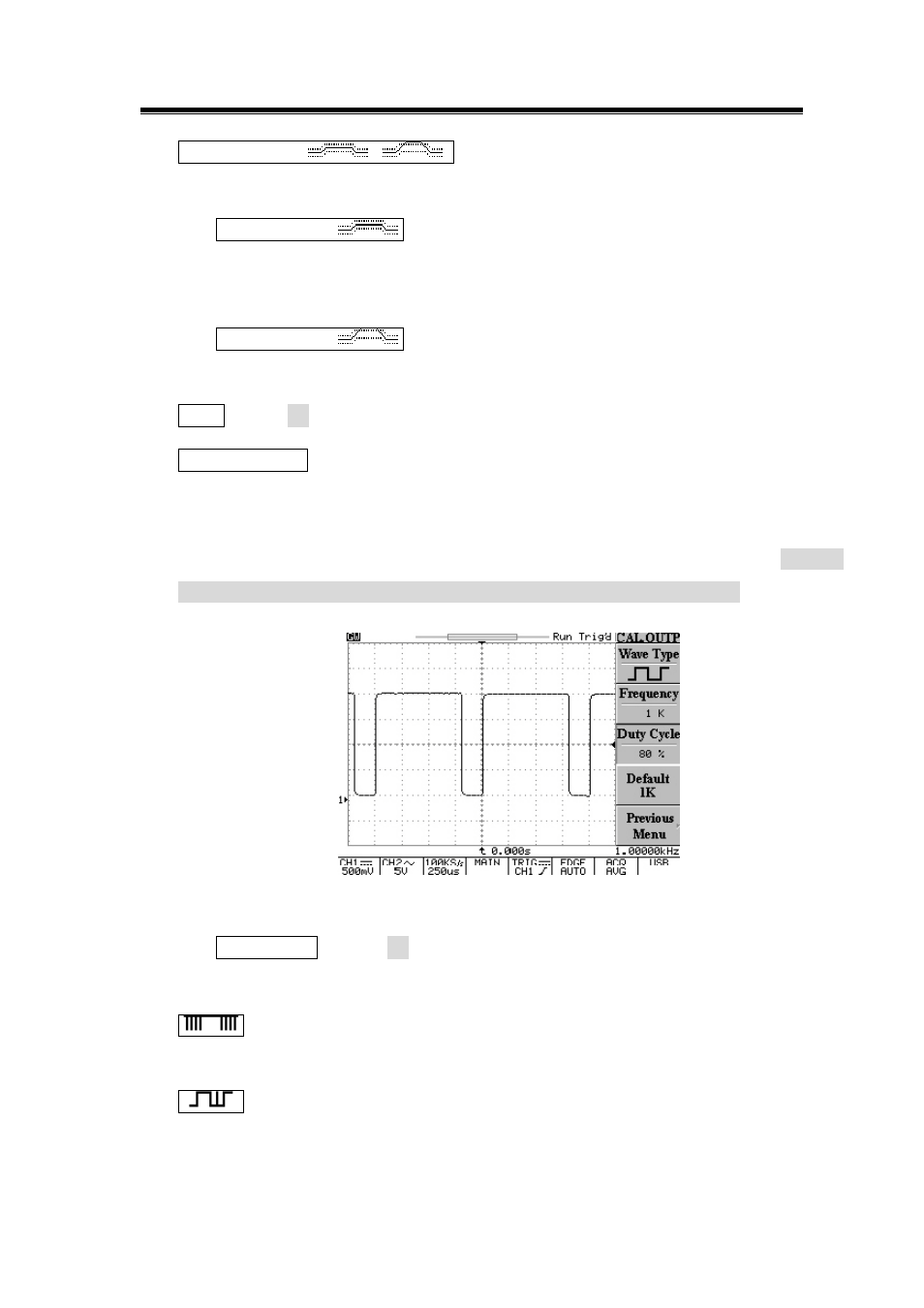

Figure 5-24: The menu for adjustable probe compensation signal
z Wave Type: Press F1 soft key to select adjustable probe compensation
signal or another two output signals for demonstration.
: A demonstration signal which designed for the purpose of long record
length.
: A demonstration signal which designed for the purpose of peak detects.
