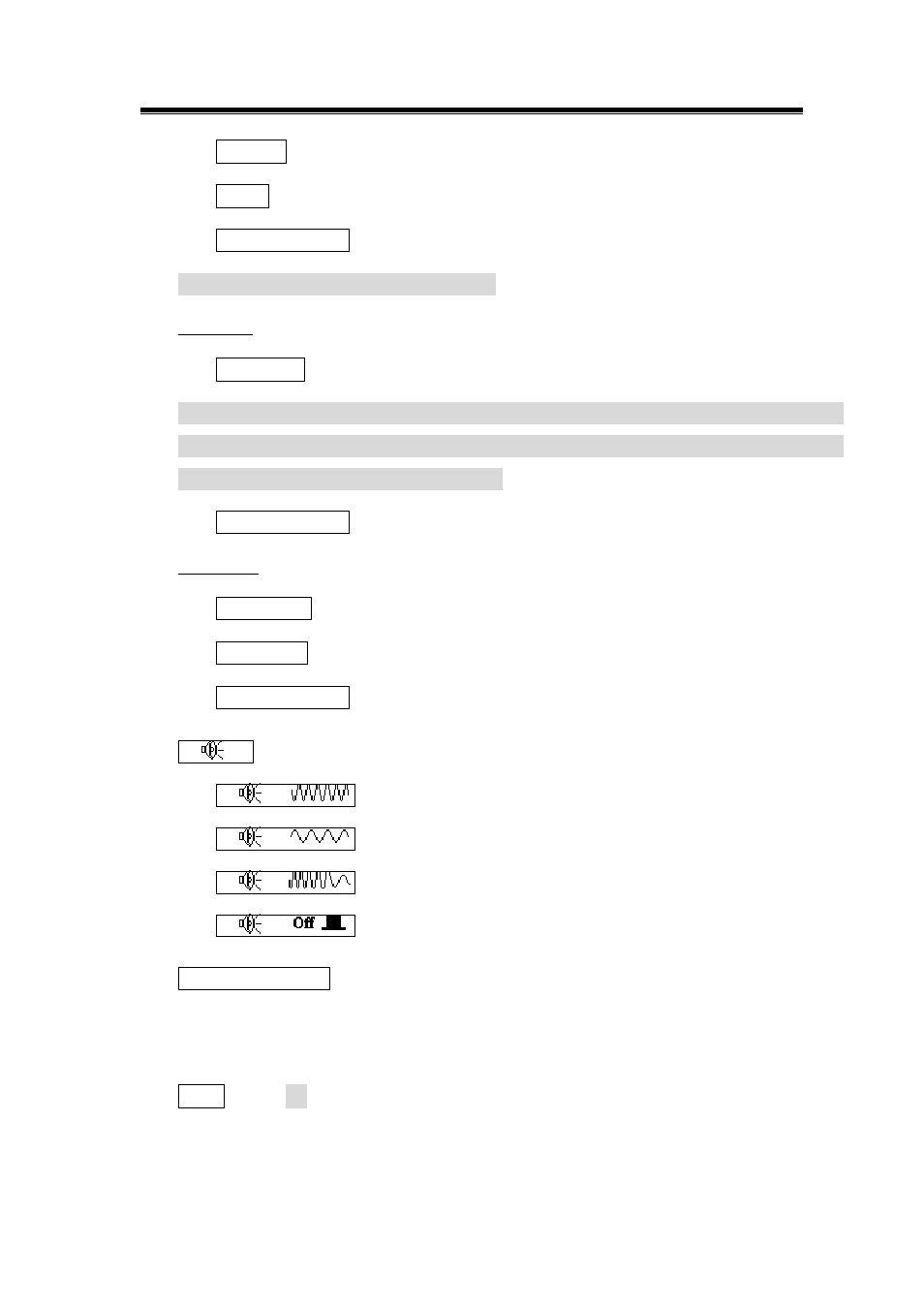

background image

GDS-800 Series Digital Storage Oscilloscope Operation Manual

45

z

Stop bit: Press the adjacent pushbutton to select “1” or “2” bits.

z

Parity: Press the adjacent pushbutton to select “Odd”, “Even”, or “None”.

z

Previous Menu: back to previous menu.

Note: The “Data Bit” is always 8-bit.

For USB

z

Type USB: Select USB port.

Note: In order to display the real-time waveform on personal computer,

please download the “FreeView” communication software from our

website http://www.goodwill.com.tw.

z

Previous Menu: back to previous menu.

For GPIB

z

Type GPIB: Select GPIB port.

z

Addr 1~30: select the appropriate address for GPIB.

z

Previous Menu: back to previous menu.

z

: Select the tone for build-in buzzer.

z

: Select the tone in higher frequency.

z

: Select the tone in lower frequency.

z

: Select the tone in mixed frequency.

z

: Turn off the buzzer.

z

Language Menu: English, tradition Chinese, simplified Chinese, French,

German, Italian, Korean, Russian, Finnish, Spanish and Polish are supported for

this moment.

z

More: press F5 softkey to other utilities.
