GDS-800 Series Digital Storage Oscilloscope Operation Manual

63

z

Risetime: Timing measurement taken for leading edge of the first pulse in the

waveform.

z

Falltime: Timing measurement taken for falling edge of the first pulse in the

waveform.

z

+Width: Measurement of the first positive pulse in the waveform or specified

area. The time is between the 50% amplitude points.

z

-Width: Measurement of the first negative pulse in the waveform or specified

area. The time is between the 50% amplitude points.

z

Duty Cycle: Timing measurement for the first cycle in the waveform or specified

area. The ratio of pulse width of the signal period expressed as a percentage.

DutyCycle=(Width/Period)×100%

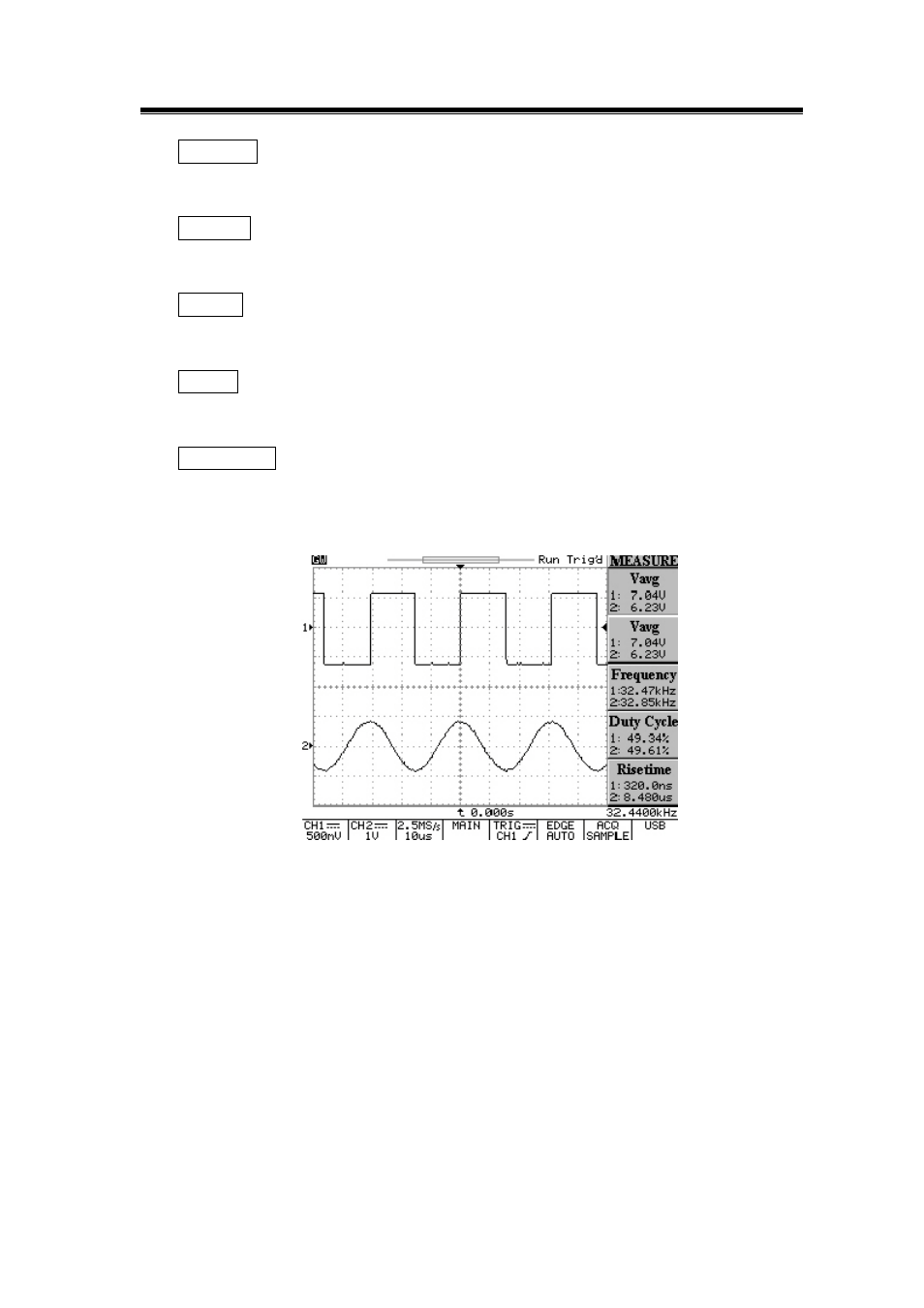

Figure 5-40: 10 measurements are displayed in the same time
