GDS-800 Series Digital Storage Oscilloscope Operation Manual
54
Figure 5-25 shows a program which replay form step one to step six and run ten
times repetitiously.
The first step is the settings which recalled form the memory one (M1), the “Auto
Measurement” menu will be displayed on the LCD screen during step one replaying;
the running time is three seconds.
The final step (step six) is recalled form sixth memory location (M6), the “Cursor”
menu will be displayed on the LCD screen during step six replaying; the running time
is controlled by pressing the Auto test/Stop pushbutton.
Example : editing a 2-step “program” which included two different signal input and
monitoring the Vpp, Vavg, Frequency, duty cycle and rise-time. This program should
be repeated five times, 10 seconds for each step.
1. The input for channel one is a 2Vpp, 10kHz sine wave from beginning; (a). Press
CURSOR button and F3 softkey to enable vertical cursors; (b). Adjusting the two
cursors to proper position by rotating the VARIABLE knob.

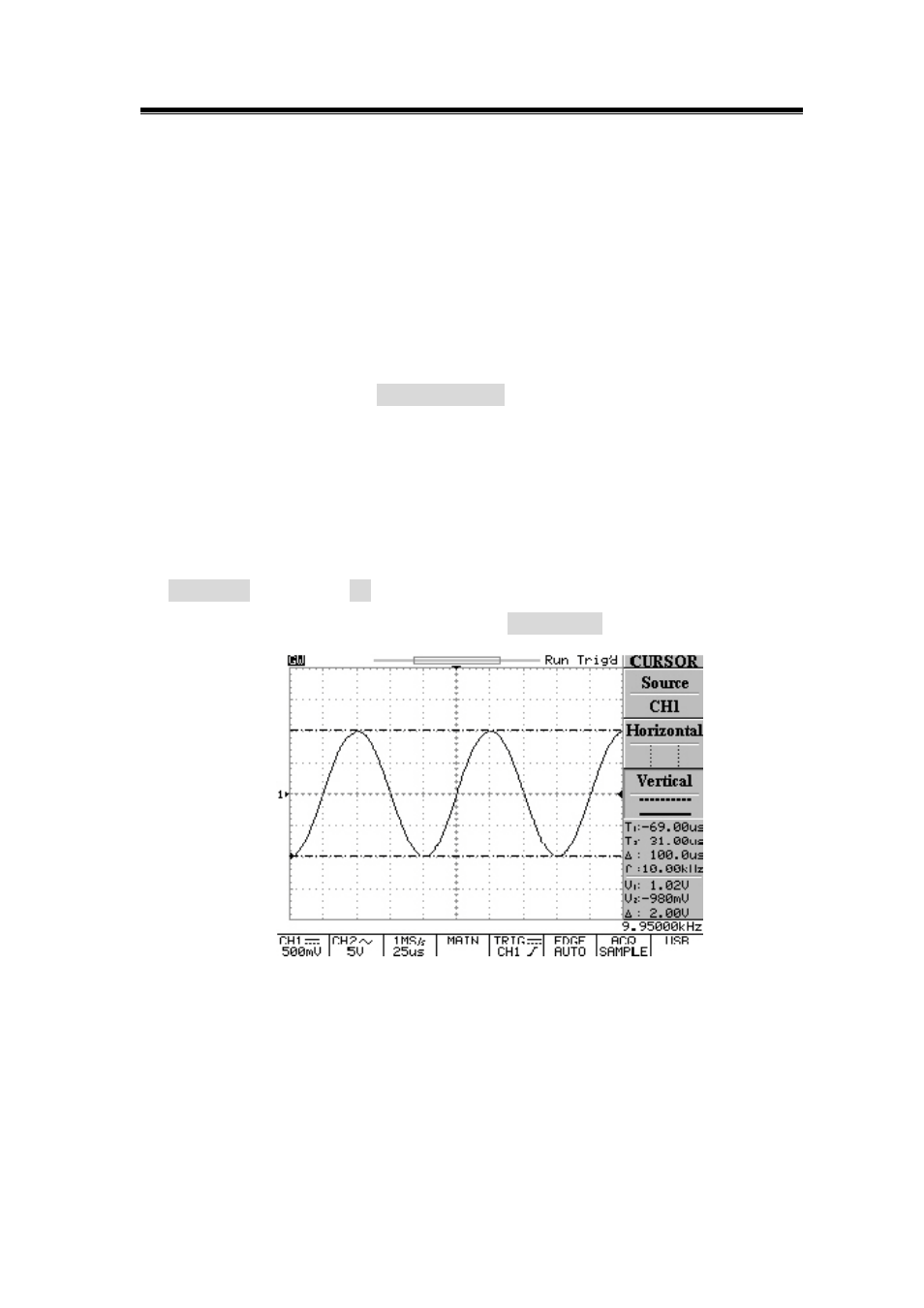

Figure 5-27: Adjusting the vertical position for channel one input of example
