OPERATION
67

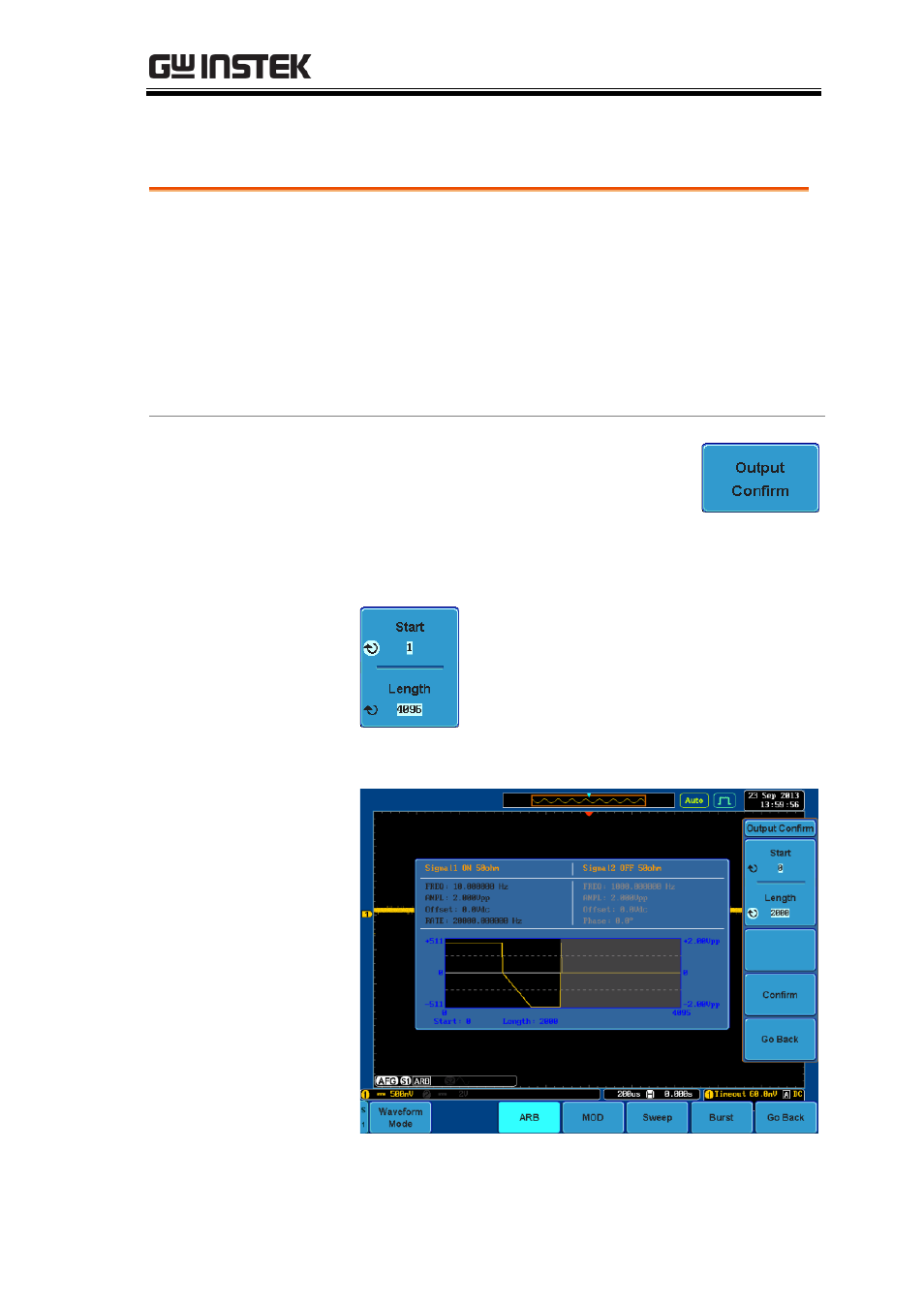

Setting ARB Output Length
Background The Output Confirm menu allows the user to
specify a section of the ARB waveform to be
output.
The length of the outputted section will directly
affect the possible frequency or rate of the ARB
waveform. See page 68 for details.
Steps 1. From the ARB menu press Output
Confirm.
2. Select the section of the ARB waveform that
you wish to have output from the side menu:
Press Start* to set the start address
for the output section.
Press Length* to set the total length
of the output section.
Example
Output section is shown in black.
