OPERATION

65

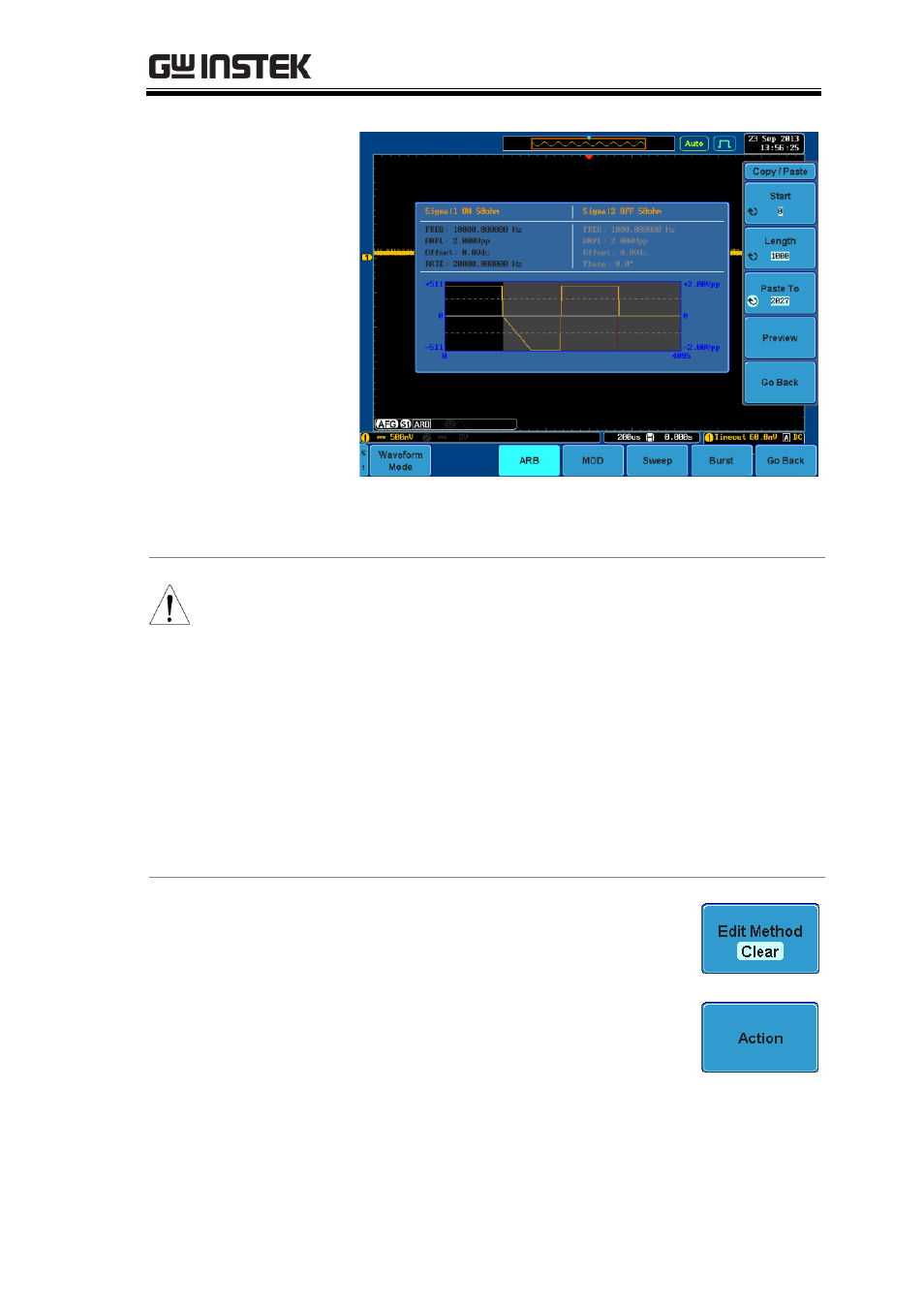

Example

Figure showing the copied section (black) and the
pasted section (red bars).

Note

* The maximum start address depends on the Length
setting: Max Start = 4096 – Length

The maximum length depends on the start address set
above: Max Length = 4096 – Start

** You cannot paste over an area that was originally
copied. For example, if you copy from points 100 ~
200, you cannot paste that to points 150 ~ 250. A
setting conflict error will appear on the screen when
the “Copy” and “Paste To” area overlap.

Clear

1. Press Edit Method and choose

Clear.

2. Press Action to enter the Clear

menu.

3. Use the side menu to select a section of the ARB

waveform to clear or to clear the whole ARB
waveform:
