GW Instek AFG-100/200 Series User Manual User Manual
Page 47
OPERATION
47

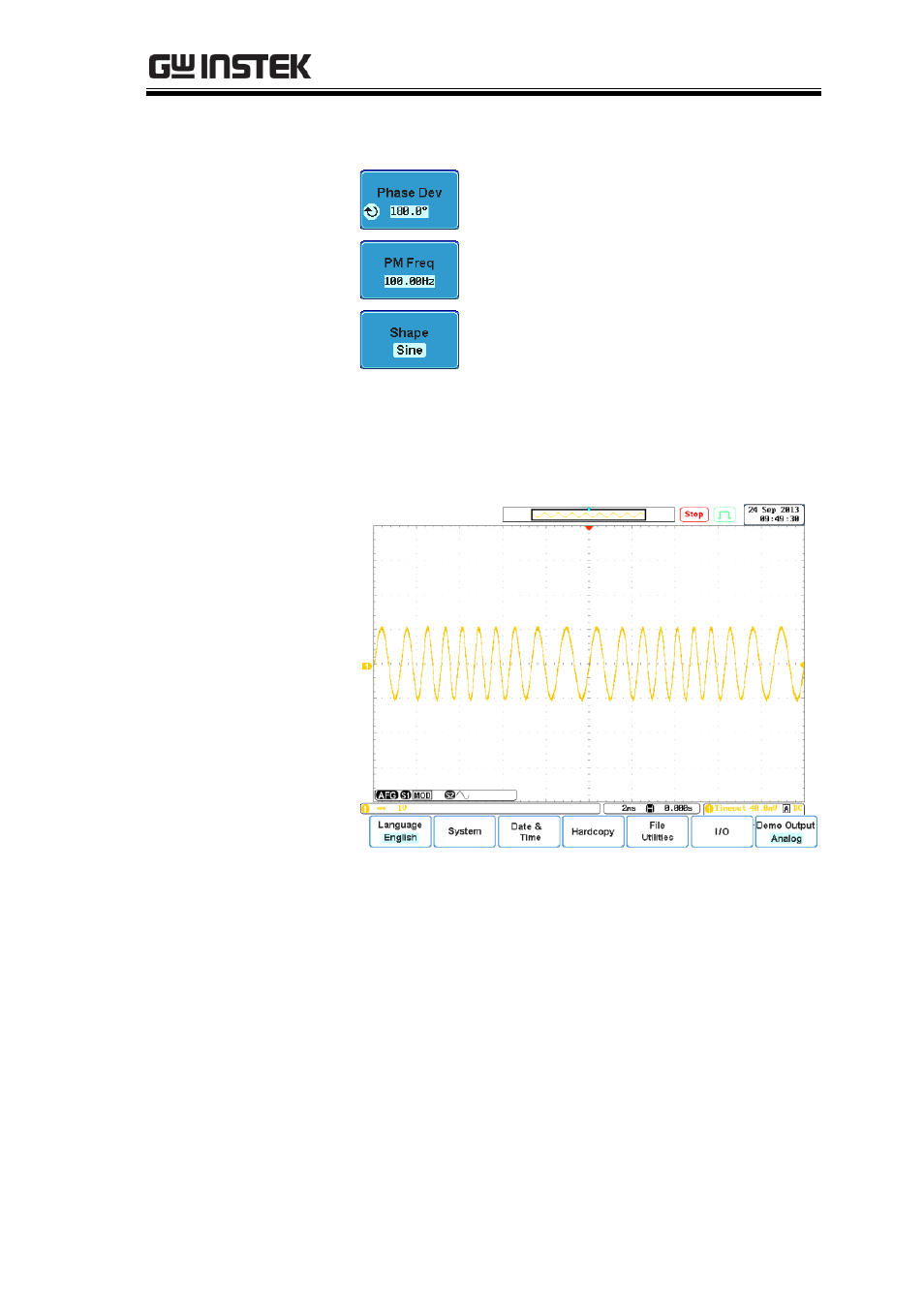

5. Select the PM parameters from the side menu:
Sets the phase deviation: 0º ~ 360º
Sets the phase modulation
frequency: 2mHz ~ 20kHz
Sets the PM wave shape:
Sine, Square, Triangle, UpRamp,
DnRamp.
6. See page 29 to set the output
settings and turn the output on.
Example
Pulse Modulation
