AFG-125/225 Series Options Manual
62

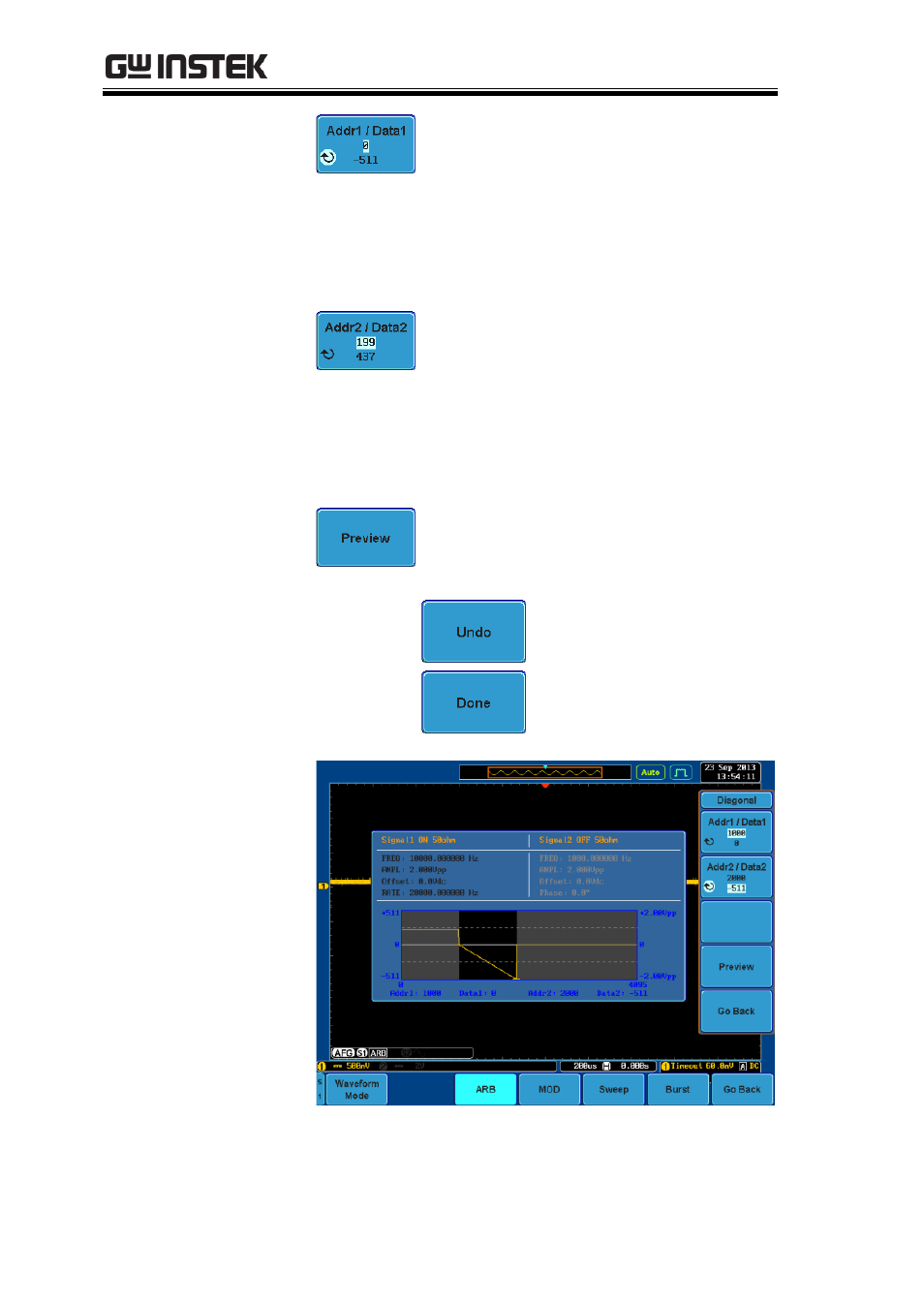

Press Addr1/Data1 to set the first
data point for the diagonal line.
Press once to set the Addr1, press
again to set Data1 (amplitude).
Addr1 range: 0 ~ 4095
Data1 range: ±511
Press Addr2/Data2 to set the second
data point for the diagonal line.
Press once to set the Addr2, press
again to set Data2 (amplitude).
Addr2 range: 0 ~ 4095
Data2 range: ±511
When the line has been edited,
press Preview to view the edited
line.
Press Undo to cancel the
line edit.
Press Done to confirm
and save the line edit.
Example
Figure showing a diagonal line (black highlight).
