OPERATION

61

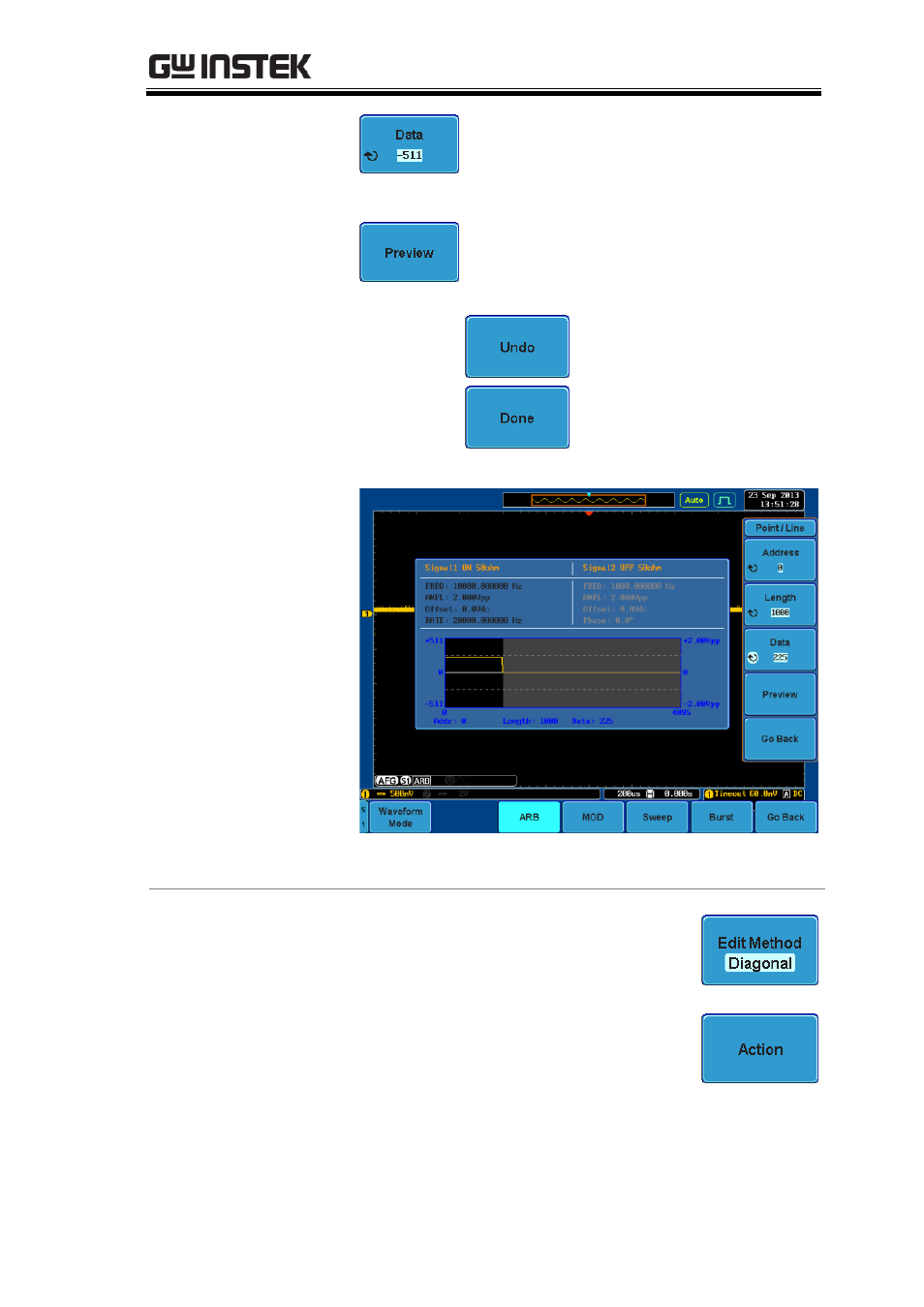

Press Data to set the amplitude of
the point/line.

Data

-511 ~ 0 ~ +511

When the point/line has been
edited, press Preview to view the
edited line.

Press Undo to cancel the
point/line edit.
Press Done to confirm
and save the point/line
edit.

Example

Figure showing a horizontal line (black highlight)

Diagonal Editing

1. Press Edit Method and choose

Diagonal.

2. Press Action to begin editing the

waveform using the Diagonal
method.

3. Use the side menu to create a diagonal line:
