OPERATION

37

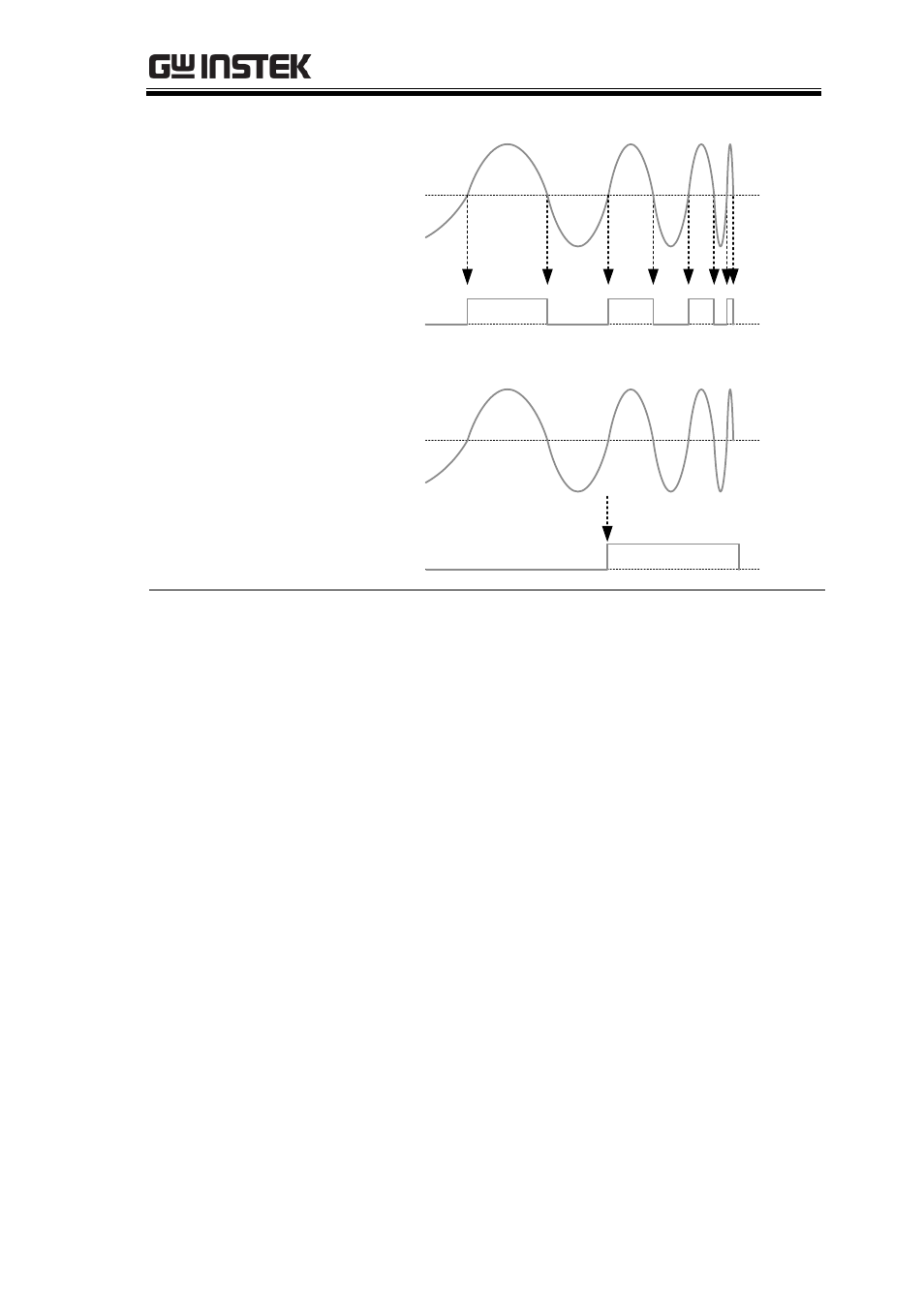

Carrier

Sweep output

SYNC output

0V

0V

Marker

Sweep output

SYNC output

0V

0V

Marker

frequency

Burst Source

Like the sweep function, the
burst function can output
Carrier or Marker signals from
the SYNC output.
Carrier: The sync signal
output is a positive TTL level
pulse for the positive
transition (0V and above) of
the burst waveform and low
for the negative transition.
Marker: The marker signal
output is a TTL level positive
pulse for the duration of the
burst period and low for the
remainder of waveform
period
