OPERATION
63

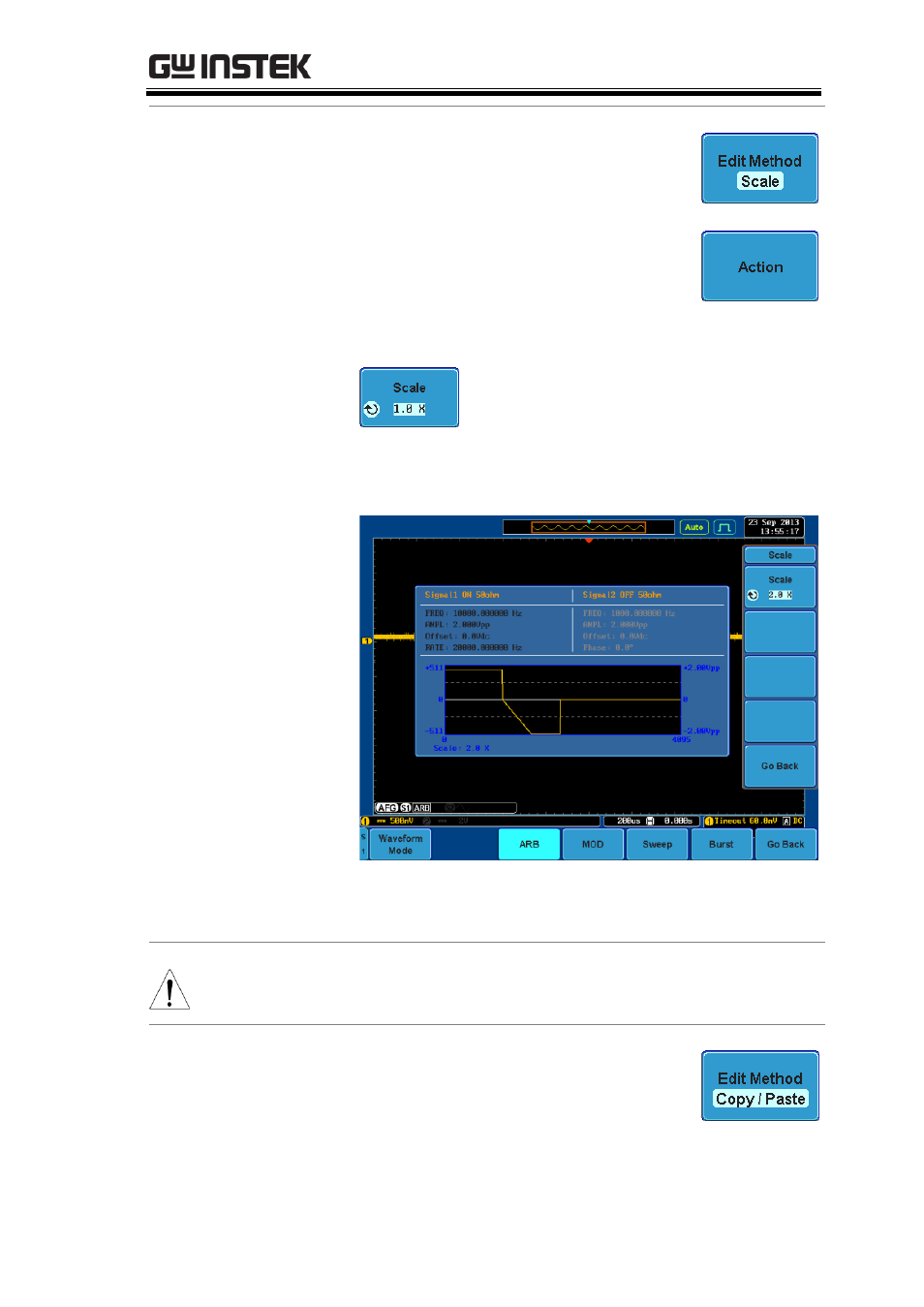

Scale Editing 1. Press Edit Method and choose Scale.
2. Press Action to begin editing the
waveform using the Scale method.
3. Use the side menu to set the scale:
The scale function sets the vertical
scaling factor* for the whole ARB
waveform.
Scale 0.1 ~ 10X
Example
Figure of 2.0X scaling. Notice that the waveform is
clipped at the bottom.
Note
* If any data points that exceed a magnitude of ±511
will be clipped.
Copy / Paste 1. Press Edit Method and choose
Copy /Paste.
